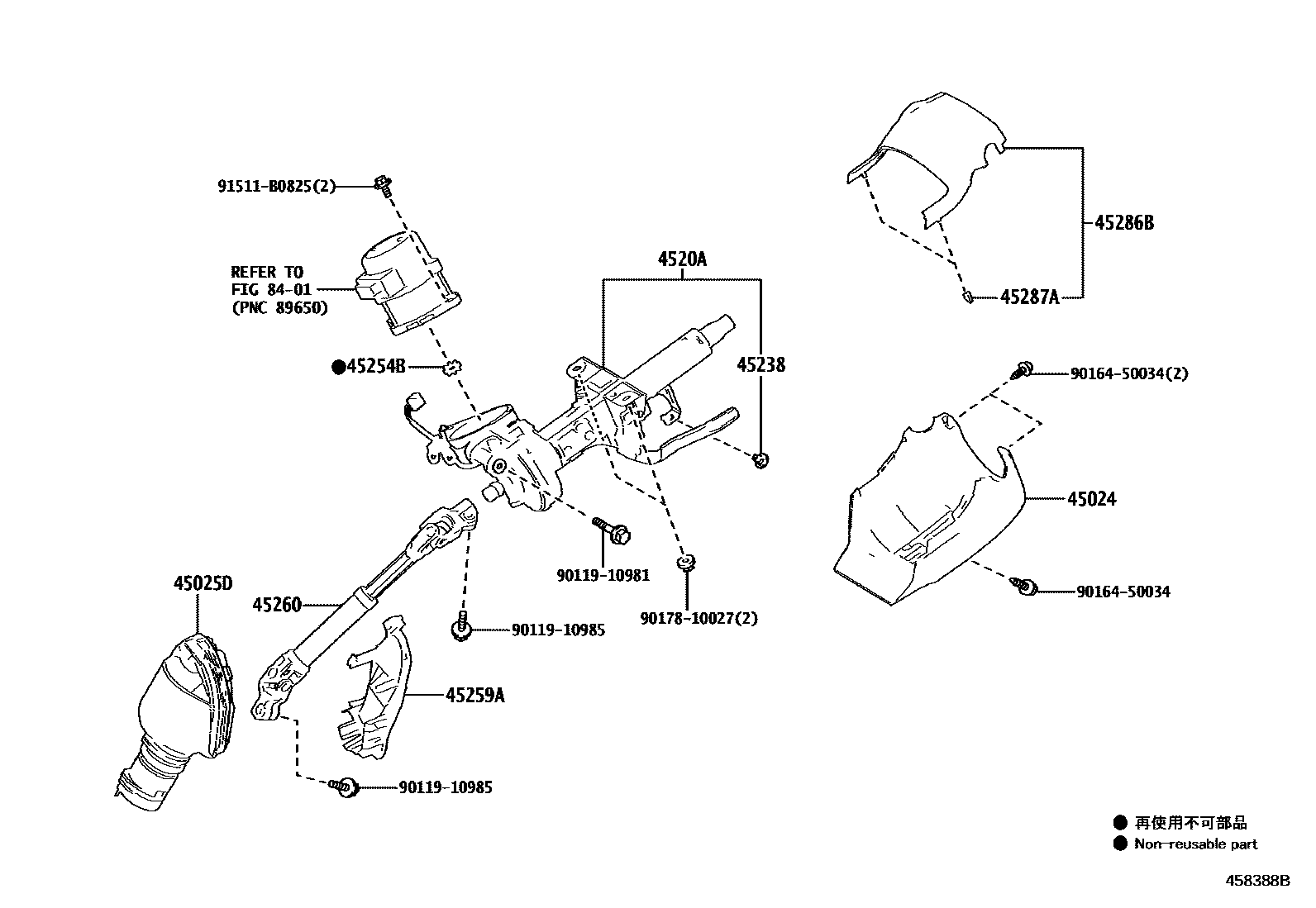

Toyota COROLLA (JPP) — STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-12110-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main45024-12110-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10110iMXGA10,MXGH1#,ZVG13..RHD¥3,360202207

main45025-76010iMXGH12,15,ZVG1#..LHD202207

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-16040iMXGA10,MXGH1#,ZVG13..RHD202207-202401

main4520A-16050iMXGH12,15,ZVG1#..LHD202207-202401

main4520A-16070iMXGA10,MXGH1#,ZVG13..RHD202401

main4520A-16080iMXGH12,15,ZVG1#..LHD202401

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMXGA10,MXGH1#,ZVG1#¥70202207

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXGA10,MXGH1#,ZVG1#¥220202207-202401

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-10010iMXGA10,MXGH1#,ZVG13..RHD¥1,690202207

main45259-16010iMXGH12,15,ZVG1#..LHD202207

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-10030iMXGH12,15,ZVG13..RHD¥12,900202207-202401

main45260-10040iMXGH12,15,ZVG1#..LHD202207-202401

main45260-16100iMXGA10,MXGH10¥11,500202207-202401

main45260-16120iMXGA10,MXGH1#,ZVG13..RHD¥11,700202401

main45260-16130iMXGH12,15,ZVG1#..LHD202401

45286BCOVER, STEERING COLUMN, UPR

main45286-12670-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main45286-12670-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171iMXGA10,MXGH1#,ZVG1#¥60202207

8401

9011910981

main90119-10981¥190

9011910985

main90119-10985¥100

9016450034

main90164-50034¥70

9017810027

main90178-10027¥100

91511B0825

main91511-B0825¥140

15 parts on this diagram · 4 diagrams in section
