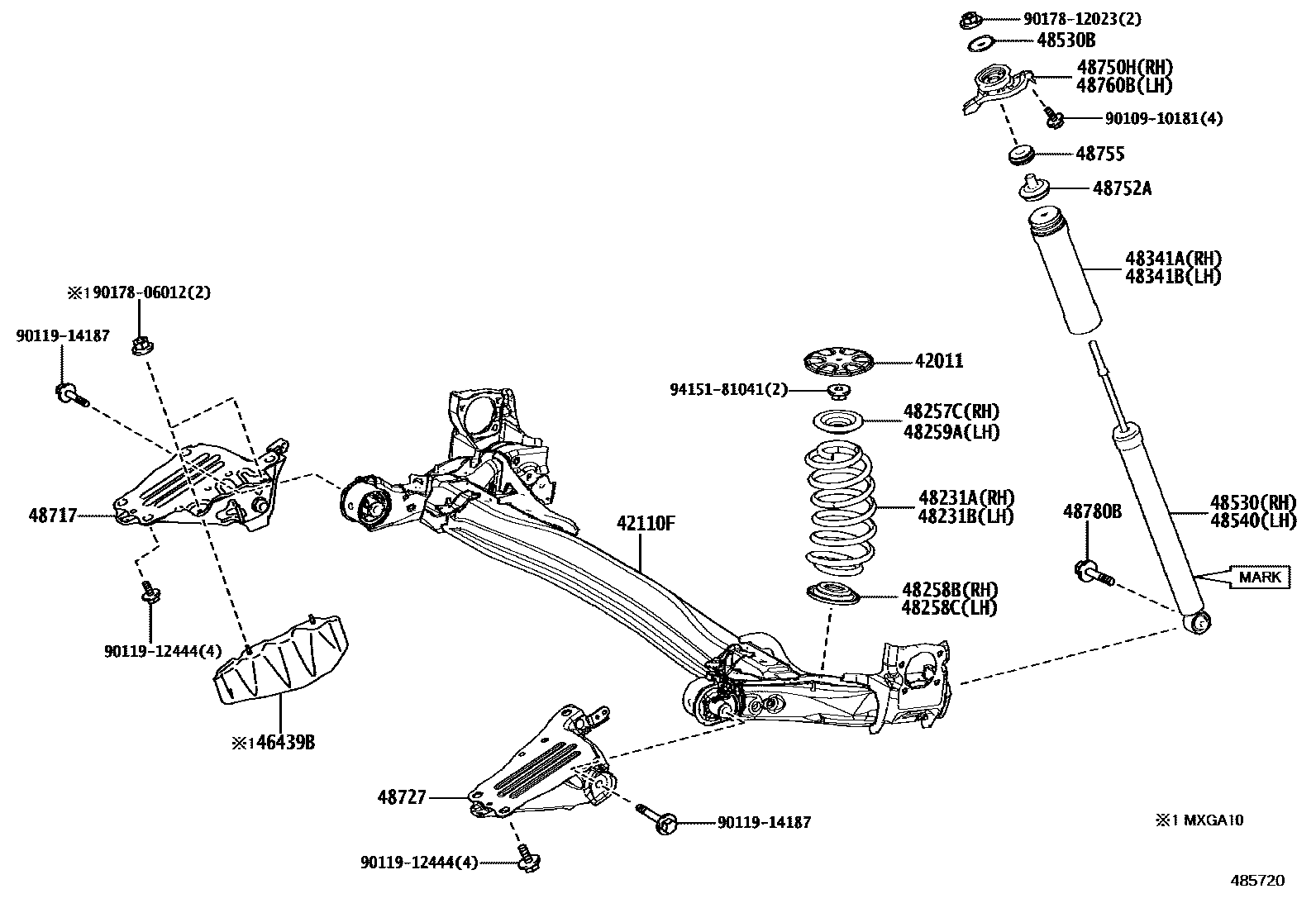

Toyota COROLLA (JPP) — REAR SPRING & SHOCK ABSORBER
42011SEAT SUB-ASSY, REAR SPRING
42110FBEAM ASSY, REAR AXLE
46439BINSULATOR, PARKING BRAKE CABLE HEAT
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-16580
MARK 48530-16630
MARK 48530-16660
MARK 48530-16600
MARK 48530-16650
MARK 48530-16680
MARK 48530-16700
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-16580
MARK 48530-16630
MARK 48530-16660
MARK 48530-16600
MARK 48530-16650
MARK 48530-16680
MARK 48530-16700
48717BRACKET, REAR SUSPENSION ARM, RH
48727BRACKET, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48780BBOLT(FOR STRUT ROD)
9010910181
9011912444
9011914187
9017806012
9017812023
9415181041
27 parts on this diagram · 4 diagrams in section
