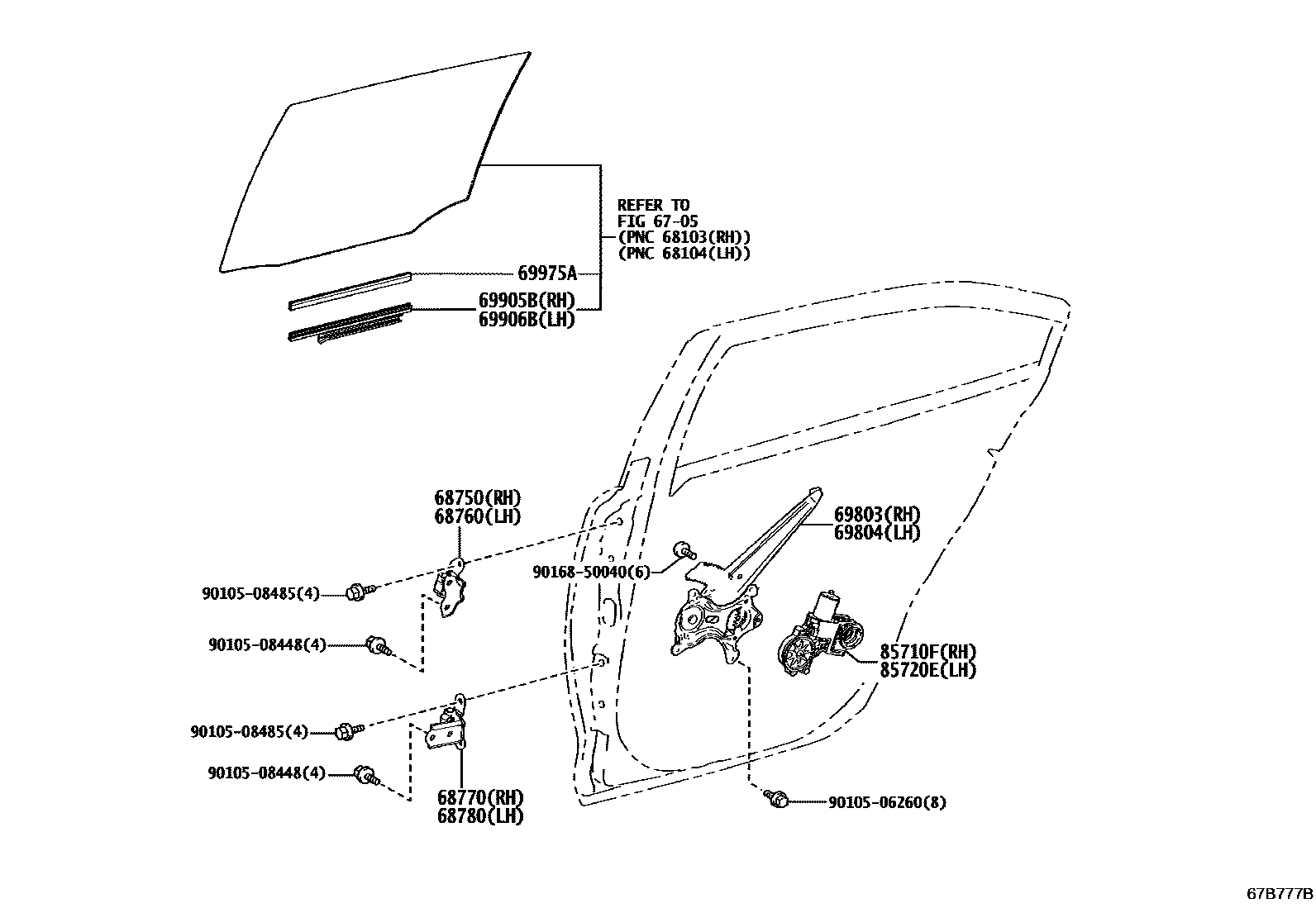

Toyota COROLLA (JPP) — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iMXGA10,MXGH1#,ZVG1#¥1,850202207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iMXGA10,MXGH1#,ZVG1#¥1,850202207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iMXGA10,MXGH1#,ZVG1#¥1,850202207

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iMXGA10,MXGH1#,ZVG1#¥1,850202207

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-47020iMXGA10,MXGH1#,ZVG1#¥3,430202207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-47020iMXGA10,MXGH1#,ZVG1#¥3,430202207

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iMXGA10,MXGH1#,ZVG1#¥400202207

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iMXGA10,MXGH1#,ZVG1#¥400202207

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iMXGA10,MXGH1#,ZVG1#¥370202207

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-16200iMXGA10,MXGH1#,ZVG1#¥12,500202207

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-16220iMXGA10,MXGH1#,ZVG1#¥12,500202207

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

16 parts on this diagram · 1 diagram in section
