Toyota COROLLA (JPP) — PARKING BRAKE & CABLE

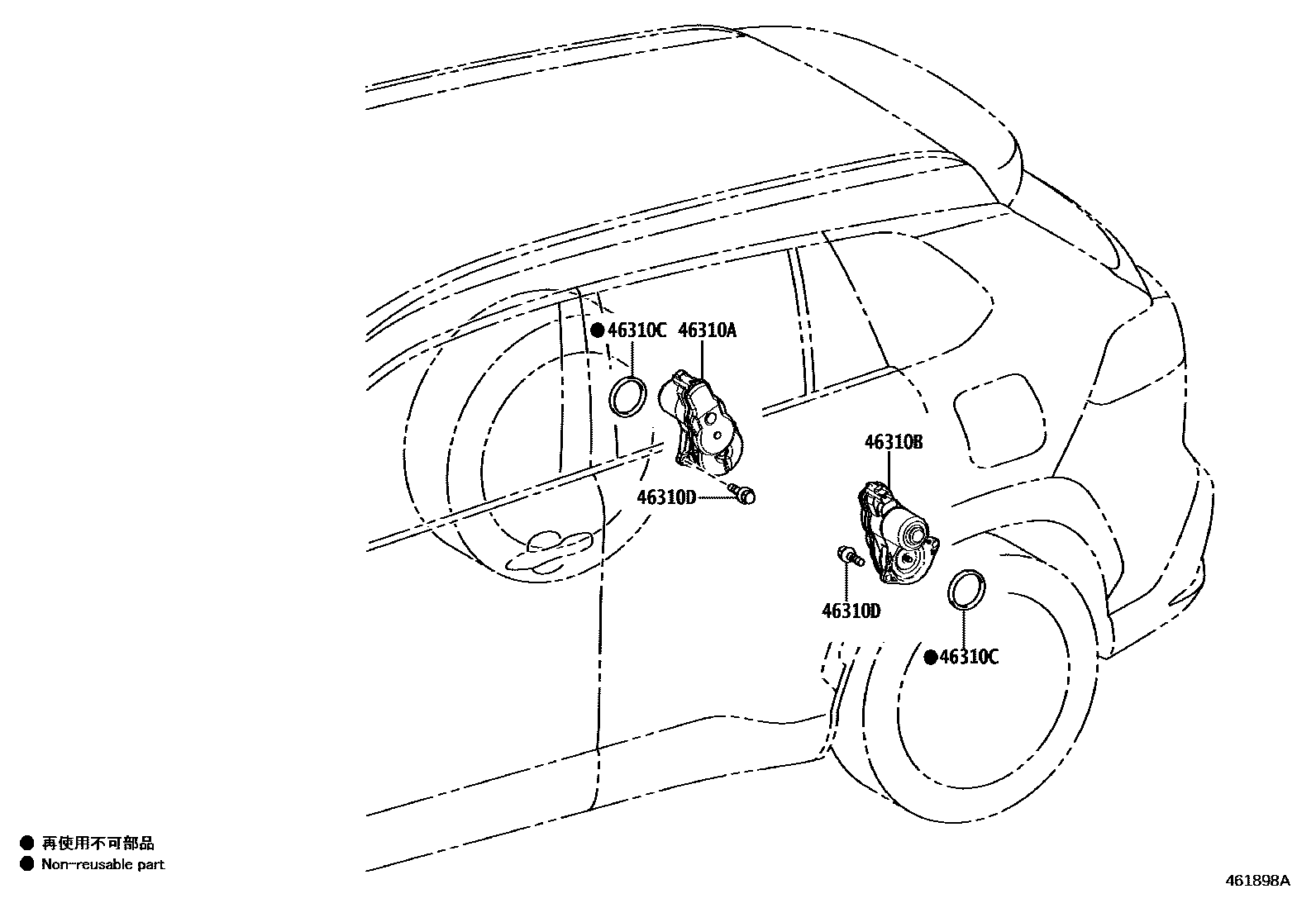

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010i¥14,400202207

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010i¥14,400202207

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i¥130202207

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702i¥270202207

sub90016-AA703¥270

4 parts on this diagram · 1 diagram in section
