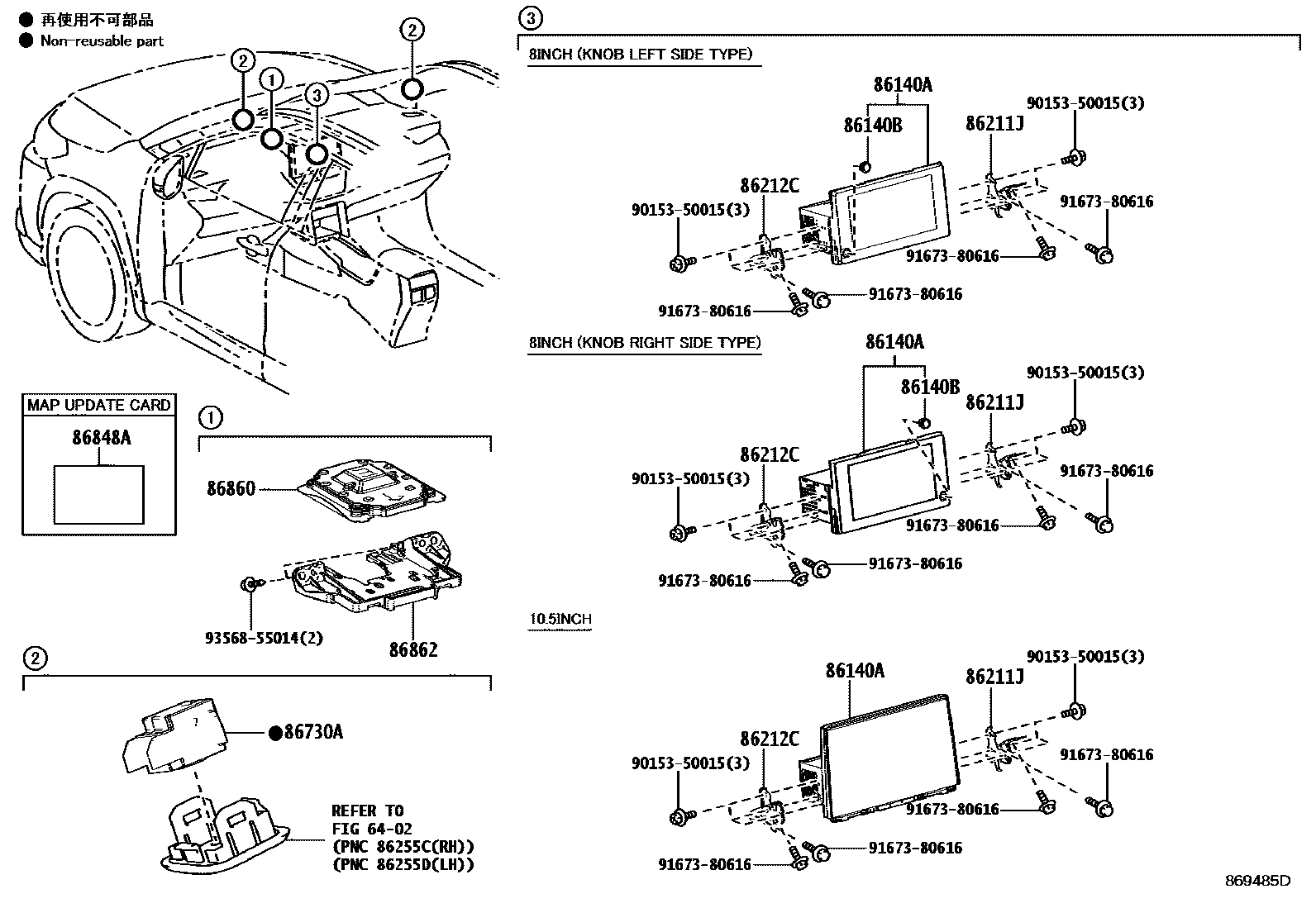

Toyota COROLLA (JPP) — NAVIGATION & FRONT MONITOR DISPLAY

6402

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-16430iMXGA10,MXGH10,15..E..ARL202207-202208

DENSO TEN

main86100-16431iMXGA10,MXGH10,15..E..ARL202209-202401

DENSO TEN

main86100-16630iMXGA10,MXGH10,15..E..ARL202401-202403

DENSO TEN

main86100-16631-B1iMXGA10,MXGH10,15..E..ARL202404

DENSO TEN,SILVER,TRIM2#

main86140-16130iMXGH12,15,ZVG12..EUR202207-202208

PANASONIC

sub86140-16131

main86140-16131iMXGH12,15,ZVG12..EUR202209-202303

PANASONIC

sub86140-16132

main86140-16132iMXGH12,15,ZVG1#..EUR202303-202309

PANASONIC

sub86140-16133

main86140-16133iMXGH12,15,ZVG1#..EUR202309-202401

PANASONIC

main86140-16140iMXGA10,MXGH10,15..(J,N)..ARL202207-202401

DENSO TEN

main86140-16330iMXGH12,15,ZVG1#..EUR202401-202404

PANASONIC

sub86140-16331

main86140-16331-B0iMXGH12,15,ZVG1#..EUR202405-202411

PANASONIC,SILVER,TRIM1#,2#

main86140-16332-B0iMXGH12,15,ZVG1#..EUR202412

PANASONIC,SILVER,TRIM1#,2#

main86140-16360iMXGA10,MXGH10,15..(J,N)..ARL202401

DENSO TEN

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-23064iMXGA10,MXGH10,15..(J,N)..ARL202207-202401

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-12470iMXGA10,MXGH1#,ZVG1#¥260202207

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-12460iMXGA10,MXGH1#,ZVG1#¥320202207

86730AMICROPHONE ASSY, TELEPHONE

main86730-16010iMXGA10,MXGH1#,ZVG1#¥6,400202207

AUDIO(OVERSEAS MARKET)-8INCHI DISPLAY & 6SPEAKER

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-78030iMXGH10..E202410

HONG KONG SPEC&AUDIO(OVERSEAS MARKET)-8INCHI DISPLAY & 6SPEAKER

main86848-78030iMXGA10,MXGH10,15..N..ARL202410

AUDIO(OVERSEAS MARKET)-10.5INCHI DISPLAY & 6SPEAKER

86860ANTENNA ASSY, NAVIGATION

main86880-42010iZVG13¥8,500202303

main86880-42010iMXGA10,MXGH1#,ZVG12¥8,500202401

main86880-52020iMXGA10,MXGH1#,ZVG12¥8,500202207-202401

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iMXGA10,MXGH1#,ZVG1#¥940202207

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

12 parts on this diagram · 1 diagram in section
