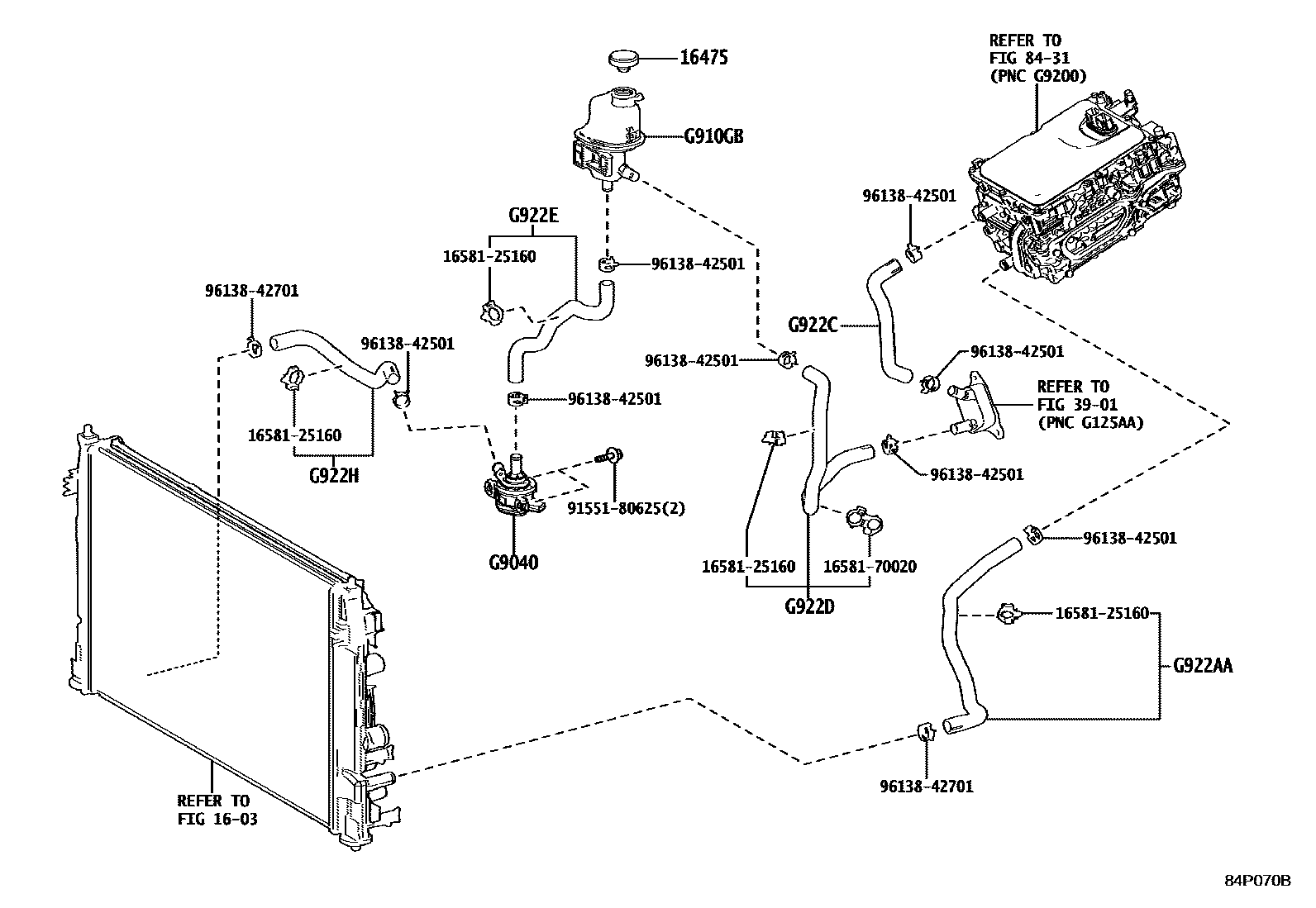

Toyota COROLLA (JPP) — INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS,2ZRFXE..MXGH1#,ZVG1#¥1,200202207

3901

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iMXGH1#,ZVG1#202207

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G16010iZVG1#202207

mainG910G76030iMXGH1#202207

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iMXGH1#,ZVG1#202207

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZVG1#202207

mainG922C16020iMXGH1#202207

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D16010iZVG1#202207

mainG922D16020iMXGH1#202207

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16010iMXGH1#202207

mainG922E16030iZVG1#202207

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iMXGH1#,ZVG1#202207

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

1658170020CLAMP, HOSE(FOR WATER HOSE)

main16581-70020¥510

9155180625

main91551-80625¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

16 parts on this diagram · 2 diagrams in section
