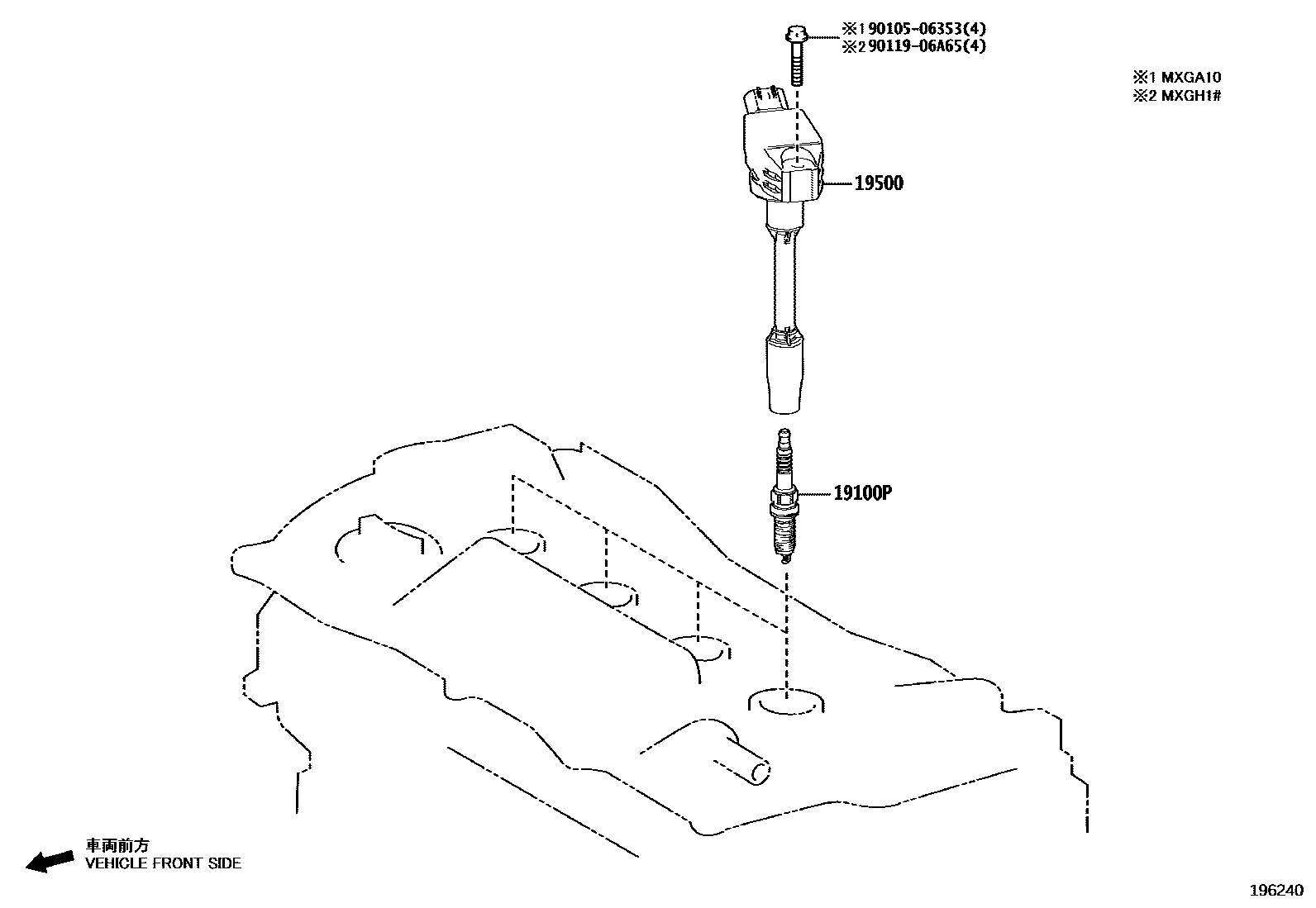

Toyota COROLLA (JPP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01289iM20AFXS..MXGH1#¥2,300202207

FC16HR-Q8

main90919-01297iM20AFKS..MXGA10¥2,300202207

FC20HR-Q8

main90919-01298i2ZRFXE..ZVG1#¥2,400202207

FC16HR-CY9

19500COIL ASSY, IGNITION

main90919-02276iM20AFKS..MXGA10¥7,500202207

main90919-02277iM20AFXS..MXGH1#¥7,500202207

9010506353

main90105-06353¥60

9011906A65

main90119-06A65¥80

4 parts on this diagram · 2 diagrams in section
