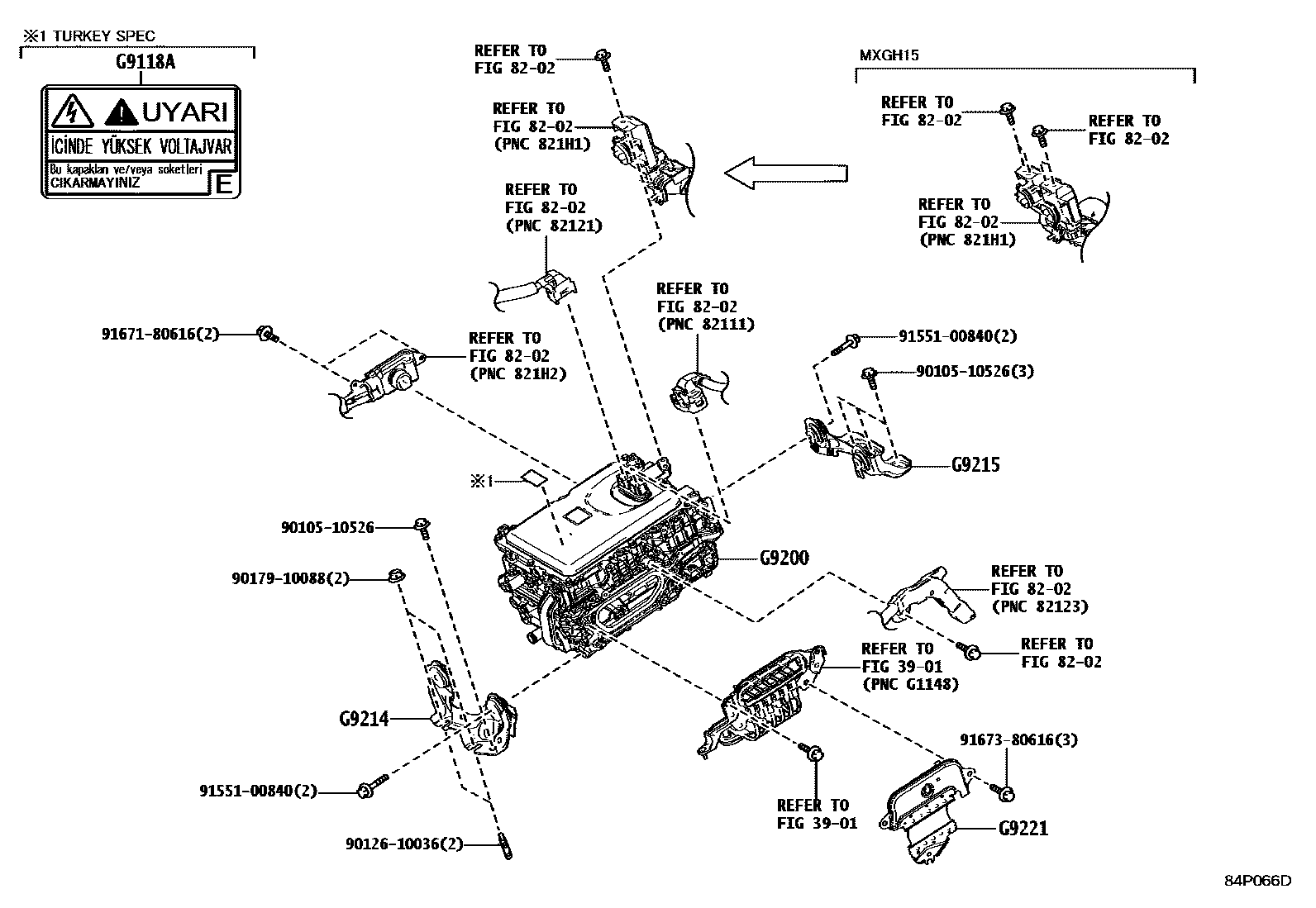

Toyota COROLLA (JPP) — HEV INVERTER

0001 1 0002 1

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9200INVERTER ASSY, W/CONVERTER

mainG92A016030iZVG12202207-202301

subG92A0-47220¥282,000

mainG92A047180iMXGH10,12202207-202301

subG92A0-47210¥282,000

mainG92A047190iMXGH15202207-202301

subG92A0-47240¥376,000

mainG92A047210iMXGH10,12202302

mainG92A047220iZVG1#202302

mainG92A047240iMXGH15202302-202304

subG92A0-47241¥342,000

mainG92A047241iMXGH15202305

G9214BRACKET, INVERTER, NO.1

mainG921428090iZVG1#202207

mainG921463010iMXGH1#202207

G9215BRACKET, INVERTER, NO.2

mainG921528050iZVG1#202207

mainG921547060iMXGH15202207

mainG921563010iMXGH10,12202207

G9221COVER, INVERTER

mainG902228030iMXGH1#,ZVG1#202207

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

13 parts on this diagram · 2 diagrams in section
