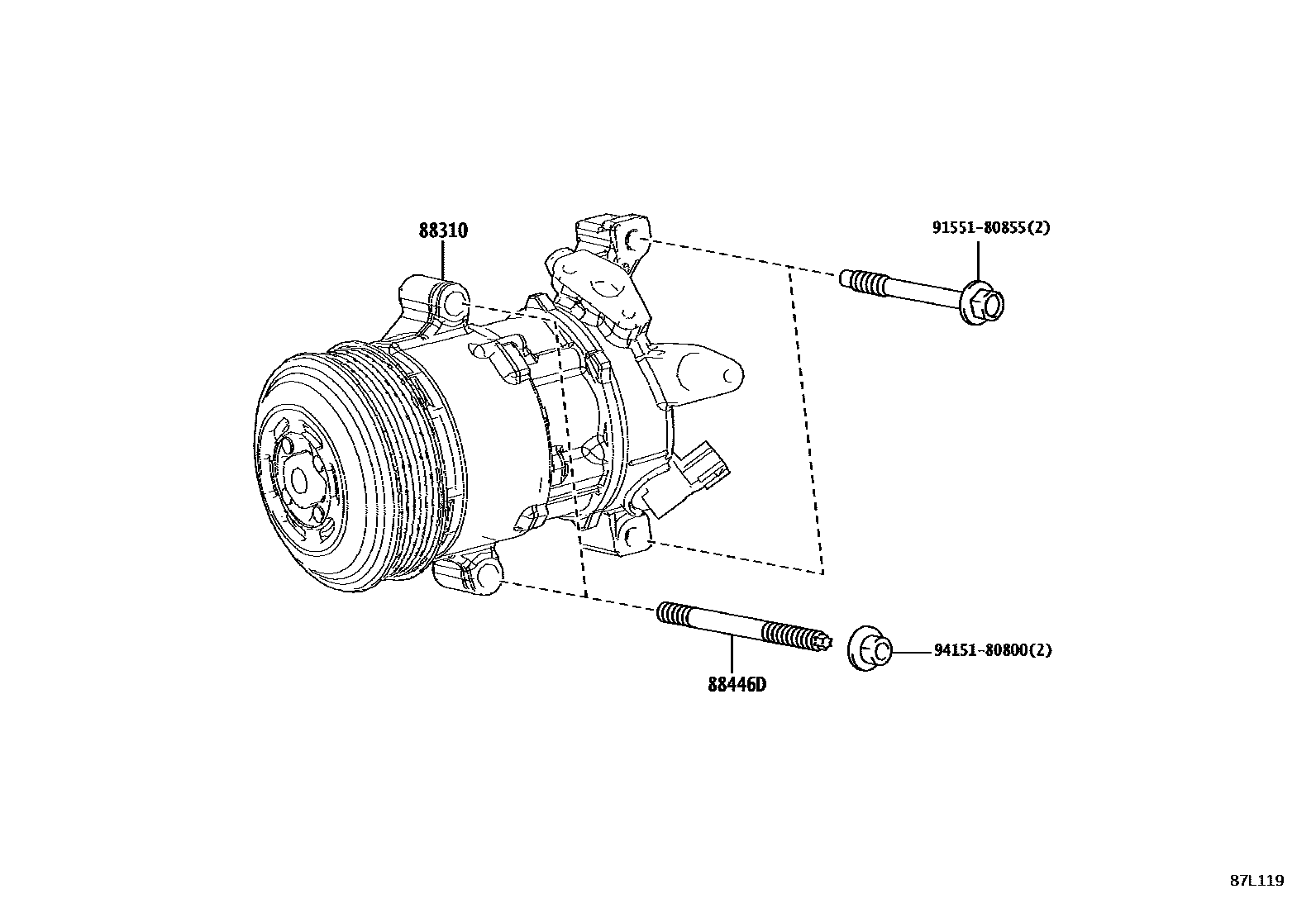

Toyota COROLLA (JPP) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-16690iMXGA10202207

88446DBOLT, COOLER

main90126-08072iMXGA10202207

9155180855

main91551-80855¥100

9415180800

main94151-80800¥80

4 parts on this diagram · 3 diagrams in section
