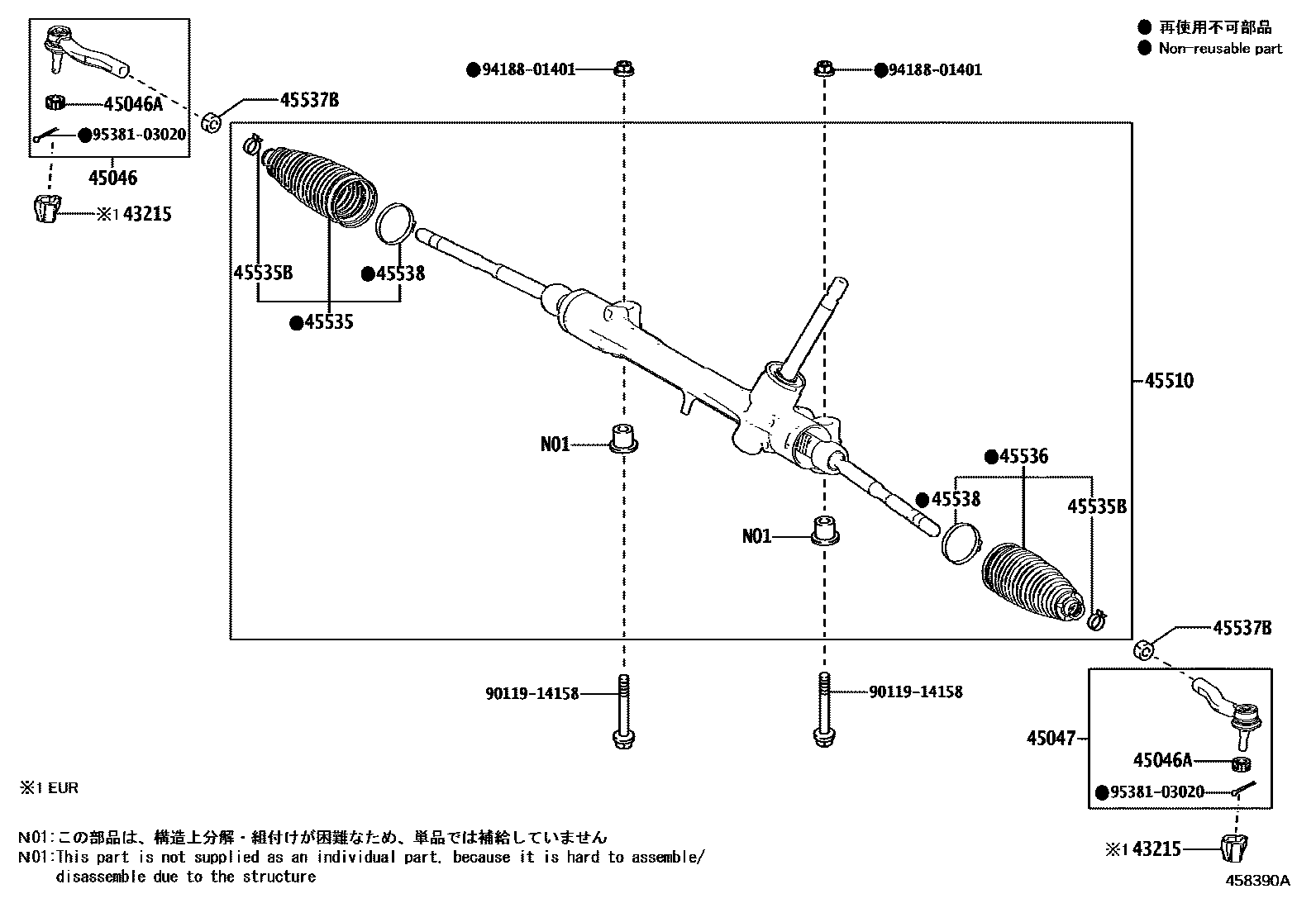

Toyota COROLLA (JPP) — FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iMXGH12,15,ZVG1#..EUR¥210202207

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iMXGA10,MXGH1#,ZVG1#¥2,690202207

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMXGA10,MXGH1#,ZVG1#¥130202207

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iMXGA10,MXGH1#,ZVG1#¥2,690202207

45510GEAR ASSY, STEERING

main45510-10240iMXGA10,MXGH1#,ZVG13..RHD¥32,900202207-202401

main45510-10250iMXGH12,15,ZVG1#..LHD202207-202401

main45510-16140iMXGA10,MXGH1#,ZVG13..RHD¥29,800202401

main45510-16200iMXGH12,15,ZVG1#..LHD202401

45535BOOT, STEERING RACK, NO.1

main45535-19025iMXGA10,MXGH1#,ZVG1#¥1,050202401

main45535-59075iMXGA10,MXGH1#,ZVG1#¥790202207-202401

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020iMXGA10,MXGH1#,ZVG1#¥200202401

main90467-19019iMXGA10,MXGH1#,ZVG1#¥320202207-202401

45536BOOT, STEERING RACK, NO.2

main45535-19025iMXGA10,MXGH1#,ZVG1#¥1,050202401

main45535-59075iMXGA10,MXGH1#,ZVG1#¥790202207-202401

45537BNUT, RACK END LOCK

main90178-16001iMXGA10,MXGH1#,ZVG1#¥120202207

45538RETAINER, STEERING RACK BOOT

main45538-42010iMXGA10,MXGH1#,ZVG1#¥220202401

main45538-48020iMXGA10,MXGH1#,ZVG1#¥240202207-202401

9011914158

main90119-14158¥430

9418801401

main94188-01401¥190

9538103020

main95381-03020¥90

13 parts on this diagram · 2 diagrams in section
