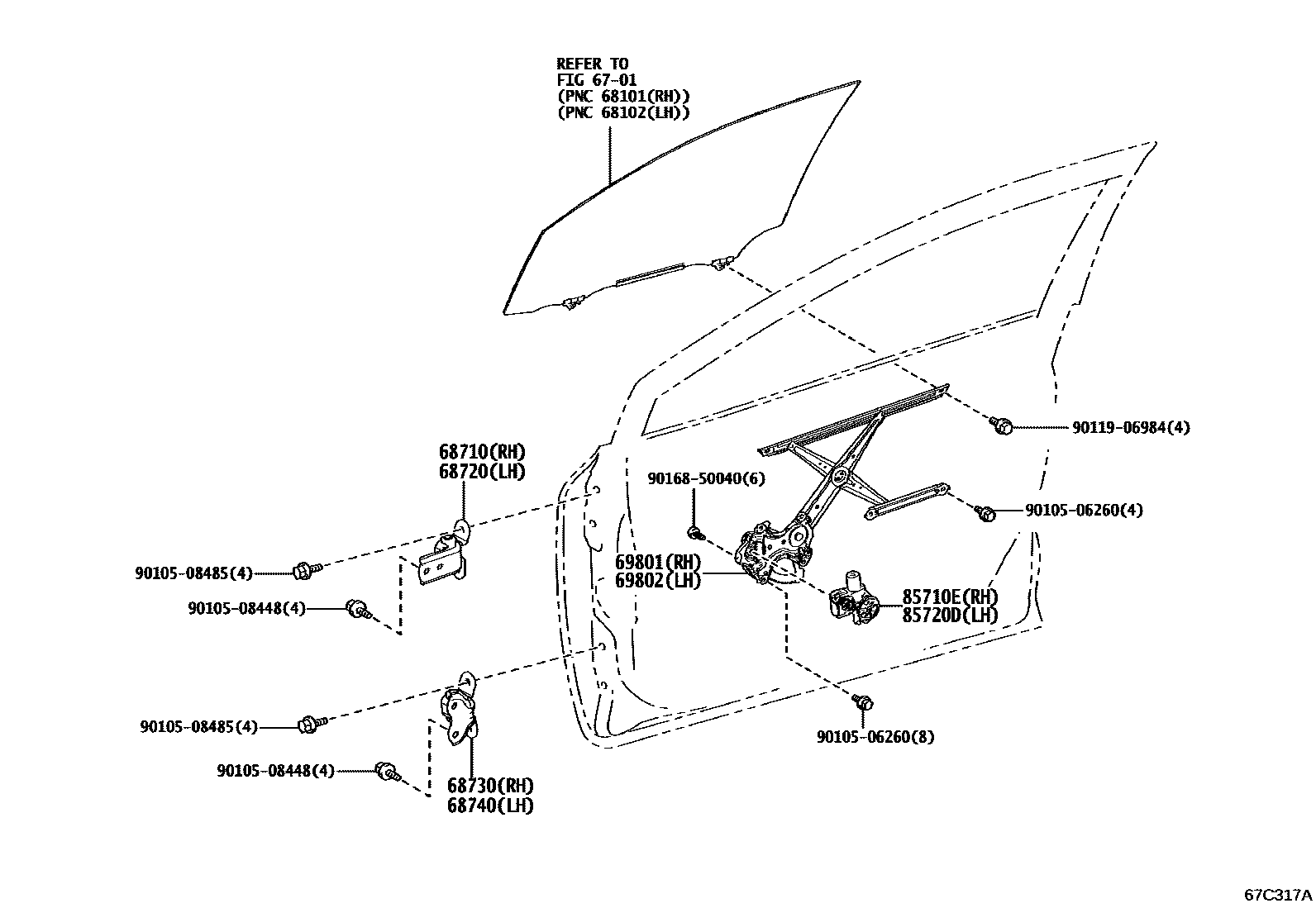

Toyota COROLLA (JPP) — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMXGA10,MXGH1#,ZVG1#¥2,050202207

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMXGA10,MXGH1#,ZVG1#¥2,050202207

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMXGA10,MXGH1#,ZVG1#¥2,240202207

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMXGA10,MXGH1#,ZVG1#¥2,240202207

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52140iMXGA10,MXGH1#,ZVG1#¥3,940202207

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52130iMXGA10,MXGH1#,ZVG1#¥3,940202207

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-16210iMXGA10,MXGH1#,ZVG1#¥12,500202207

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-16190iMXGA10,MXGH1#,ZVG1#¥12,500202207

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
