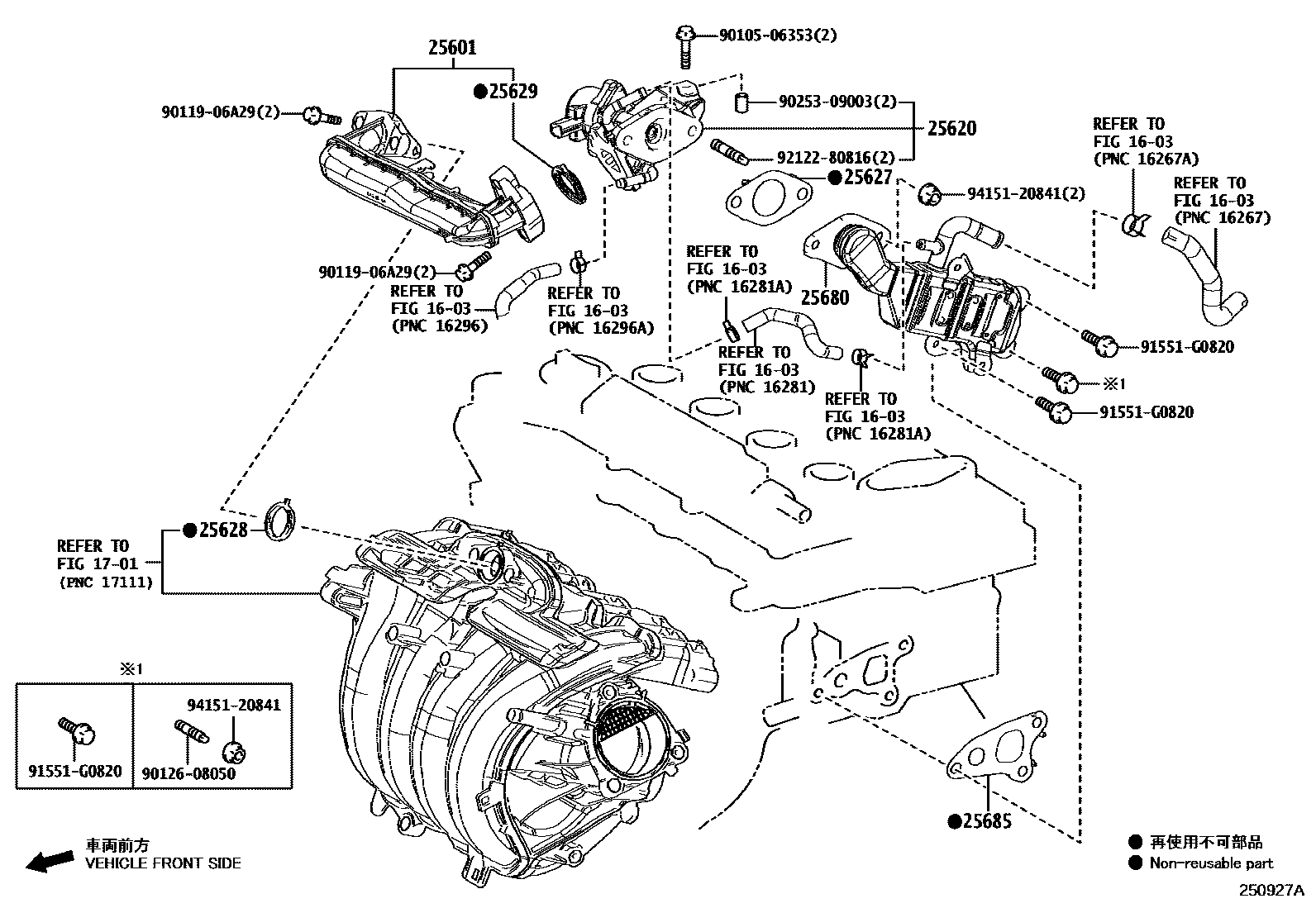

Toyota COROLLA (JPP) — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20#..MXGA10,MXGH1#¥3,140202207

25620VALVE ASSY, EGR

main25620-24050iM20#..MXGA10,MXGH1#¥18,400202207

main25620-37140i2ZRFXE..ZVG1#¥18,400202207

25627GASKET, EGR VALVE

main25627-24010iM20#..MXGA10,MXGH1#¥270202207

main25627-37020i2ZRFXE..ZVG1#¥270202207

25628GASKET, EGR INLET

main25628-25010iM20#..MXGA10,MXGH1#¥340202207

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20#..MXGA10,MXGH1#¥340202207

25680COOLER ASSY, EGR

main25680-24010iM20AFKS..MXGA10¥16,700202207

main25680-24030iM20AFXS..MXGH1#¥15,400202207

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20#..MXGA10,MXGH1#¥270202207

main25685-37020i2ZRFXE..ZVG1#¥210202207

9010506353

main90105-06353¥60

9011906A29

main90119-06A29¥60

9012608050

main90126-08050¥80

9025309003

main90253-09003¥50

91551G0820

main91551-G0820¥80

9212280816

main92122-80816¥70

9415120841

main94151-20841¥80

16 parts on this diagram · 2 diagrams in section
