Toyota COROLLA (JPP) — DISC WHEEL & WHEEL CAP

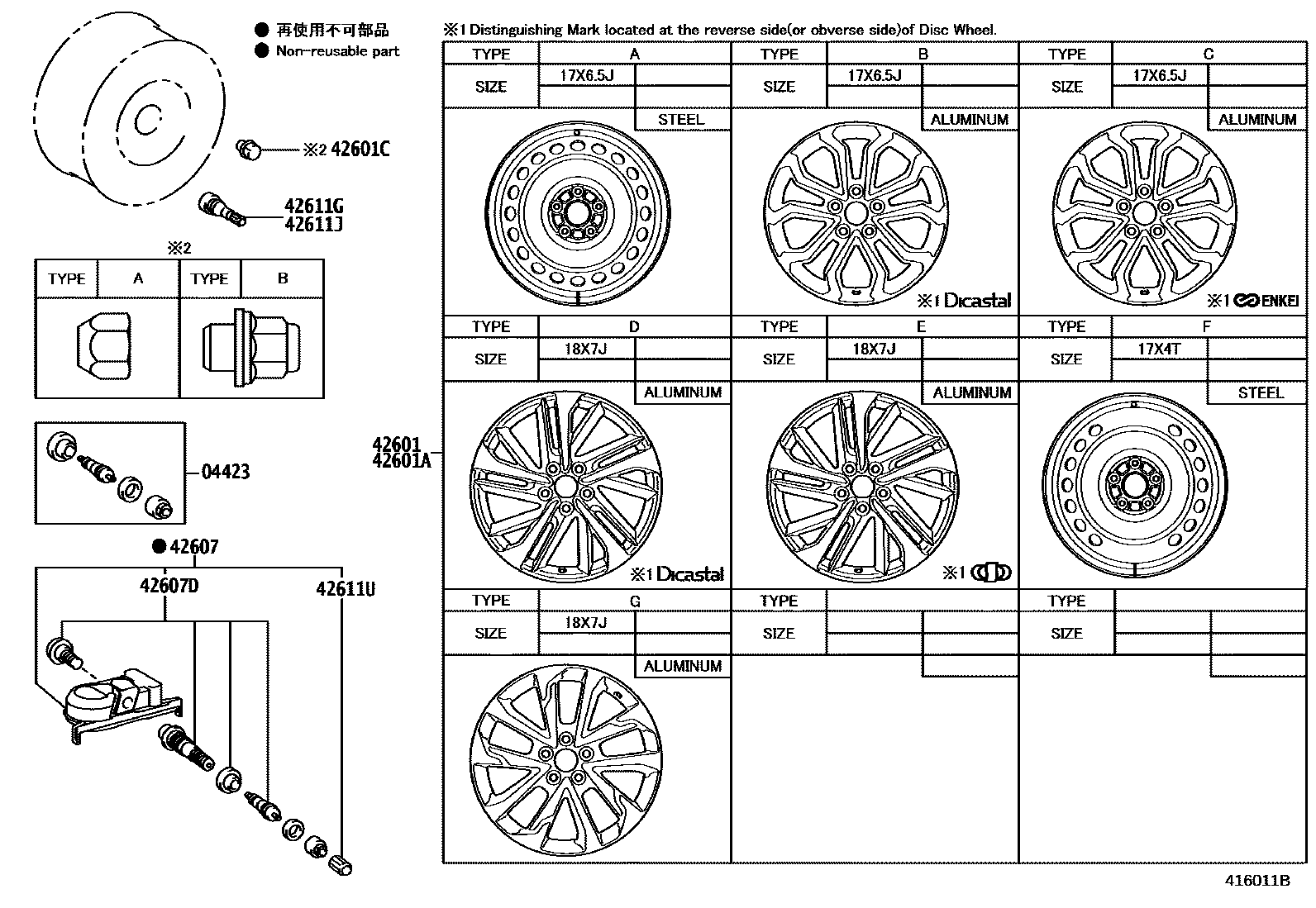

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33060i¥280202207
42601WHEEL, DISC
main42611-0W120i¥38,800202207
17X6.5J,#,TYPE B:REFER ILLUST.
main42611-0W130i¥42,300202207
18X7J,#,TYPE D:REFER ILLUST.
main42611-0W130i¥42,300202207
18X7J,#,TIRE & DISC WHEEL-225/50R18, ALUMINUM,TYPE D:REFER ILLUST.
main42611-16530i¥38,800202207
17X6.5J,#,TYPE C:REFER ILLUST.
main42611-16540i¥42,300202207
18X7J,#,TYPE E:REFER ILLUST.
main42611-16540i¥42,300202207
18X7J,#,TIRE & DISC WHEEL-225/50R18, ALUMINUM,TYPE E:REFER ILLUST.
main42611-16550i202207
17X6.5J,#,TYPE C:REFER ILLUST.
main42611-16560i202207
18X7J,#,TYPE G:REFER ILLUST.
main42611-16560i202207
18X7J,#,TIRE & DISC WHEEL-225/50R18, ALUMINUM,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main4261B-42010i¥10,100202207
17X4T,TYPE F:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,SPARE TIRE-TEMPORARY(T155/70D17),TYPE F:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,FRANCE SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPE F:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,FINLAND, NORWAY, SWEDEN, DENMARK SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPE F:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,UKRAINE SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPE F:REFERILLUST.
main4261B-42010i¥10,100202207
17X4T,UKRAINE,MOLDOVA SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPEF:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPE F:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,OTHER WVTA W/ RSA SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPE F:REFER ILLUST.
main4261B-42010i¥10,100202207
17X4T,GEORGIA,AZERBAIJAN SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17),TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01033i¥430202207
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-12020i¥6,500202207
42607DVALVE, TIRE PRESSURE MONITOR
main90942-05044i¥530202207
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i¥390202207
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i¥390202207
SPARE TIRE-TEMPORARY(T155/70D17)
main90942-05009i¥390202207
FRANCE SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
main90942-05009i¥390202207
FINLAND, NORWAY, SWEDEN, DENMARK SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
main90942-05009i¥390202207
UKRAINE SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
main90942-05009i¥390202207
UKRAINE,MOLDOVA SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
main90942-05009i¥390202207
TURKEY SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
main90942-05009i¥390202207
OTHER WVTA W/ RSA SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
main90942-05009i¥390202207
GEORGIA,AZERBAIJAN SPEC&SPARE TIRE-TEMPORARY, ROUGH RORD SPEC(T155/70D17)
42611UCAP, TIRE VALVE
main90942-05039i¥90202207

9 parts on this diagram · 3 diagrams in section
