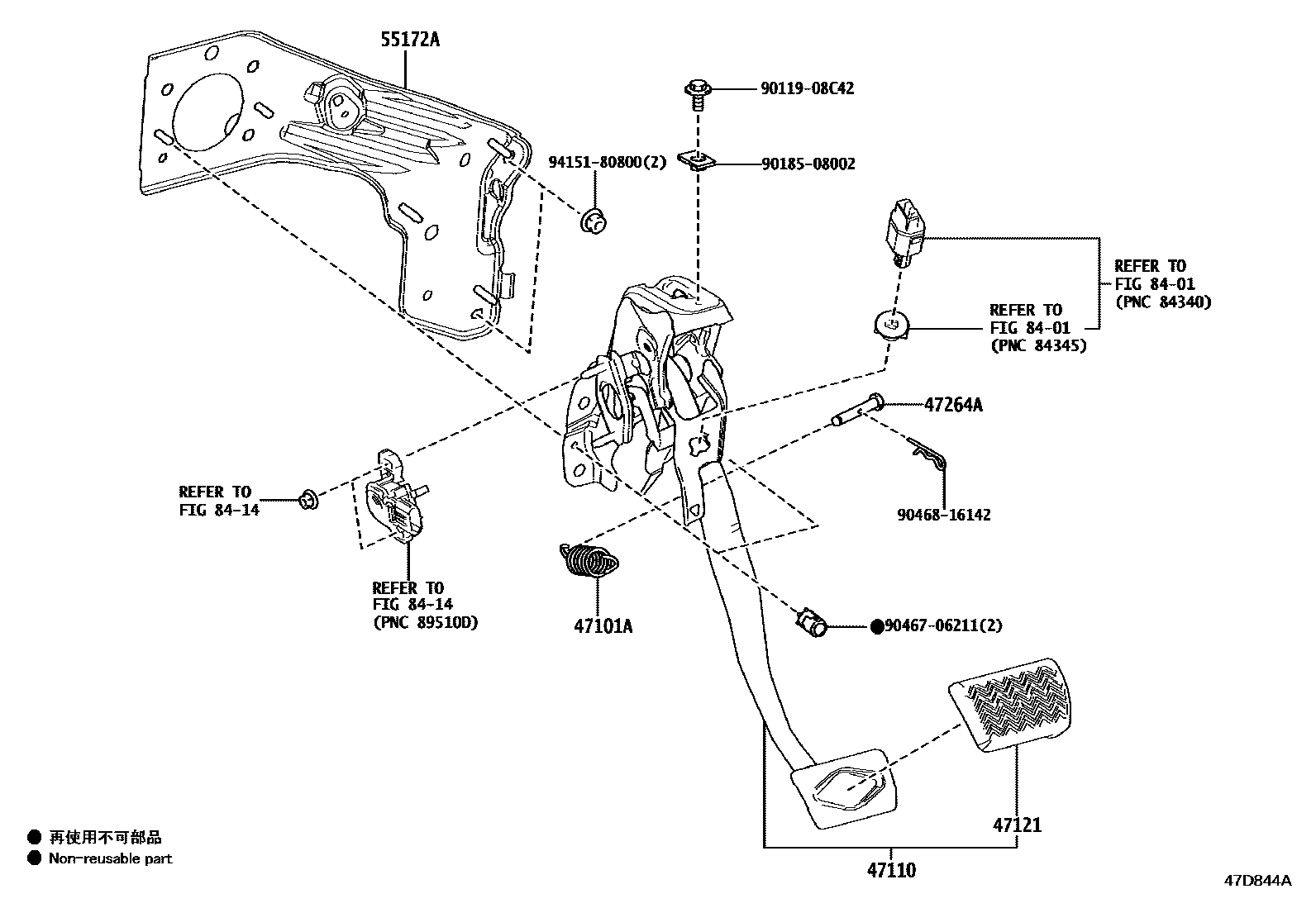

Toyota COROLLA (JPP) — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMXGA10¥180202207

main90507-16030iMXGH1#,ZVG1#¥180202207

47110SUPPORT ASSY, BRAKE PEDAL

main47110-10040iMXGA10¥10,200202207

main47110-10050iMXGH1#,ZVG13..RHD¥6,800202207

main47110-16170iMXGH12,15,ZVG1#..LHD202207

47121PAD, BRAKE PEDAL

main47121-47010iMXGA10,MXGH1#,ZVG1#¥400202207

47264APIN(FOR PUSH ROD)

main90249-08221iMXGA10,MXGH1#,ZVG1#¥220202207

55172ABASE, BRAKE PEDAL SUPPORT

main55172-10040iMXGA10,MXGH1#,ZVG13..RHD¥3,620202207

main55172-10050iMXGH12,15,ZVG1#..LHD202207

8401

8414

9011908C42

main90119-08C42¥80

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

12 parts on this diagram · 3 diagrams in section
