Toyota COROLLA JPP — WIRING & CLAMP

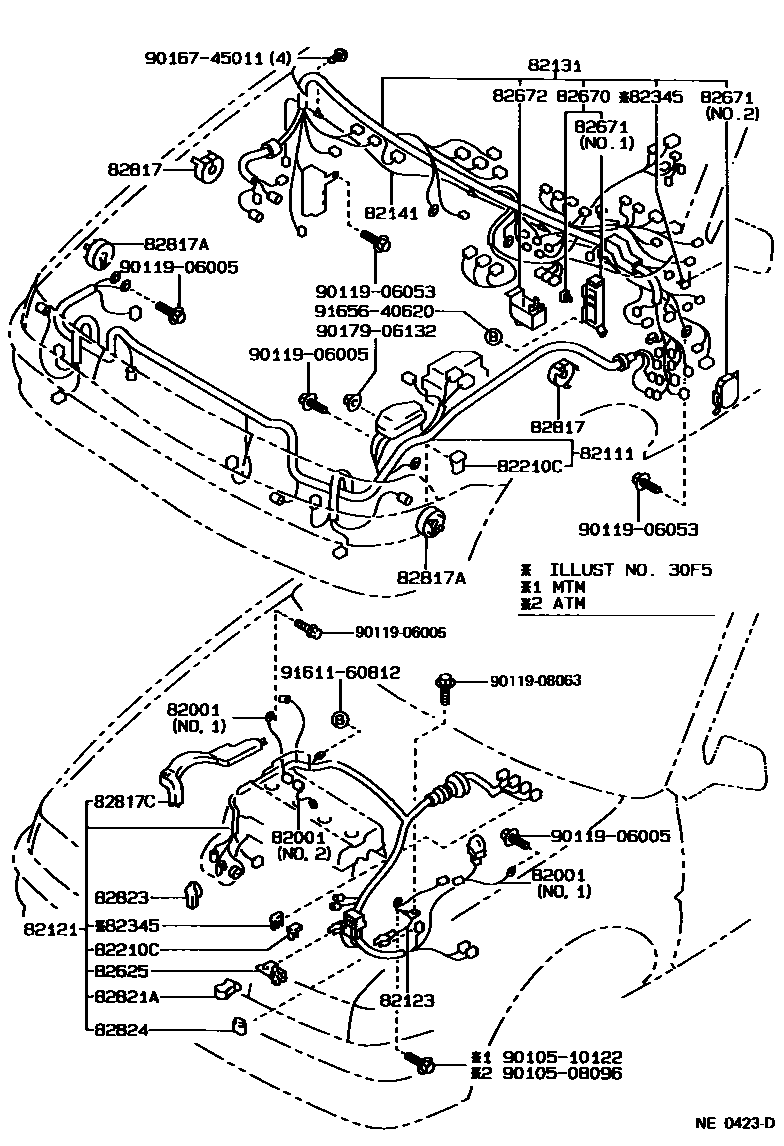

Parts diagram
82001CABLE, BOND, NO.1
main90980-07206i¥610198708-199206
NO.1
main90980-07236i¥410198708-198709
NO.2
main90980-07299i¥500198709-199206
NO.2
82111WIRE, ENGINE ROOM MAIN
main82111-1A230i¥45,900198708-198908
main82111-1A240i¥25,200198710-198908
W(CRUISE CONTROL) OR W(*RW)
main82111-1A240i¥25,200198708-198908
W(CRUISE CONTROL)
main82111-1A520i¥52,900198708-198908
W(ANTI-THEFT DEVICE SYSTEM)
main82111-1A520i¥52,900198710-198908
W(ANTI-THEFT DEVICE SYSTEM)
main82111-1A540i¥59,200198802-198908
main82111-1A620i¥46,000198908-199008
main82111-1A621i¥25,000199008-199206
main82111-1A630i¥46,000198908-199008
W(CRUISE CONTROL)
main82111-1A631i¥26,500199008-199206
W(CRUISE CONTROL)
main82111-1A640i¥46,000198908-199008
W(REAR WINDOW WIPER)
main82111-1A641i¥25,000199008-199009
main82111-1A641i¥25,000199008-199206
W(REAR WINDOW WIPER)
main82111-1A660i¥46,000198908-199008
main82111-1A661i¥25,200199008-199108
main82111-1A662i¥26,500199108-199206
main82111-1A670i¥46,000198908-199008
W(CRUISE CONTROL)
main82111-1A671i¥26,800199008-199108
W(CRUISE CONTROL)
main82111-1A672i¥29,400199108-199206
W(CRUISE CONTROL)
main82111-1A680i¥46,000198908-199008
W(REAR WINDOW WIPER)
main82111-1A681i¥26,800199008-199108
W(REAR WINDOW WIPER)
main82111-1A681i¥26,800199008-199009
main82111-1A682i¥26,500199108-199206
W(REAR WINDOW WIPER)
main82111-1A700i¥46,000198908-199008
W(ANTI-THEFT DEVICE SYSTEM)
main82111-1A701i¥26,500199008-199206
W(ANTI-THEFT DEVICE SYSTEM)
82121WIRE, ENGINE
main82121-1A240i198708-198806
main82121-1A241i198806-198908
main82121-1A250i198708-198806
main82121-1A251i198806-198908
main82121-1A260i¥52,600198708-198806
CALIFORNIA SPEC
main82121-1A261i198806-198908
CALIFORNIA SPEC
main82121-1A270i198708-198806
CALIFORNIA SPEC
main82121-1A271i198806-198908
CALIFORNIA SPEC
main82121-1A790i¥79,100198802-198808
main82121-1A791i¥79,100198808-198908
main82121-1A800i¥79,100198802-198808
main82121-1A801i¥79,100198808-198908
main82121-1E041i¥79,600198908-199008
main82121-1E042i¥45,500199008-199009
sub82121-1E043¥45,000
main82121-1E043i¥45,000199009-199206
main82121-1E051i¥79,600198908-199008
main82121-1E052i¥45,500199008-199009
sub82121-1E053¥45,000
main82121-1E053i¥45,000199009-199206
main82121-1E111i¥79,600198908-199008
CALIFORNIA SPEC
main82121-1E112i¥45,500199008-199009
CALIFORNIA SPEC
sub82121-1E113¥45,000
main82121-1E113i¥45,000199009-199206
CALIFORNIA SPEC
main82121-1E121i¥79,600198908-199008
CALIFORNIA SPEC
main82121-1E122i¥45,500199008-199009
CALIFORNIA SPEC
sub82121-1E123¥45,000
main82121-1E123i¥45,000199009-199206
CALIFORNIA SPEC
main82121-1E400i¥79,100198908-199009
main82121-1E410i¥79,000198908-199009
82123WIRE, ENGINE, NO.3
main82123-12150i¥2,320198708-199206
main82123-12170i¥3,220198708-199206
82131WIRE, COWL
main82131-13180i¥79,700198710-198806
CALIFORNIA SPEC OR W(*RW)
main82131-13180i¥79,700198710-198806
W(REAR WINDOW WIPER)
main82131-13182i¥79,700198806-198808
W(REAR WINDOW WIPER)
main82131-13182i¥79,700198806-198808
CALIFORNIA SPEC OR W(*RW)
main82131-13183i¥79,900198808-198908
W(REAR WINDOW WIPER)
main82131-13183i¥79,900198808-198908
CALIFORNIA SPEC OR W(*RW)
main82131-13190i¥84,700198710-198806
W(CRUISE CONTROL)
main82131-13192i¥84,700198806-198808
W(CRUISE CONTROL)
main82131-13193i¥84,700198808-198908
W(CRUISE CONTROL)
main82131-13210i¥84,700198710-198806
W(ANTI-THEFT DEVICE STSTEM)
sub82131-13211¥85,100
main82131-13212i¥84,700198806-198808
W(ANTI-THEFT DEVICE STSTEM)
main82131-13213i¥84,700198808-198908
W(ANTI-SHEFT DEVICE SYSTEM)
main82131-13290i¥80,300198908-199008
W(REAR WINDOW WIPER)
main82131-13291i¥79,500199008-199206
W(REAR WINDOW WIPER)
main82131-13340i¥85,100198908-199008
W(CRUISE CONTROL)
main82131-13341i¥84,400199008-199206
W(CRUISE CONTROL)
main82131-13350i¥85,100198908-199008
W(ANTI-THEFT DEVICE SYSTEM)
main82131-13351i¥84,400199008-199206
W(ANTI-THEFT DEVICE SYSTEM)
main82131-13370i¥85,100198908-199008
W(REAR WINDOW WIPER)
main82131-13371i¥85,100199008-199108
W(REAR WINDOW WIPER)
main82131-13372i¥84,400199108-199206
W(REAR WINDOW WIPER)
main82131-13380i¥85,100198908-199008
W(CRUISE CONTROL)
main82131-13381i¥85,100199008-199108
W(CRUISE CONTROL)
main82131-13382i¥84,400199108-199206
W(CRUISE CONTROL)
main82131-1A730i198708-198805
sub82131-1A731¥66,500
main82131-1A731i¥66,500198805-198806
main82131-1A732i198806-198808
main82131-1A733i¥66,600198808-198908
main82131-1A740i198708-198805
CALIFORNIA SPEC
sub82131-1A741¥66,500
main82131-1A741i¥66,500198805-198806
CALIFORNIA SPEC
main82131-1A742i198806-198808
CALIFORNIA SPEC
main82131-1A743i¥66,600198808-198908
CALIFORNIA SPEC
main82131-1A750i198708-198805
W(CRUISE CONTROL)
sub82131-1A751¥91,400
main82131-1A751i¥91,400198805-198806
W(CRUISE CONTROL)
main82131-1A752i198806-198808
W(CRUISE CONTROL)
main82131-1A753i¥91,500198808-198908
W(CRUISE CONTROL)
main82131-1E360i¥91,400198708-198805
W(ANTI-THEFT DEVICE SYSTEM)
sub82131-1E361¥91,400
main82131-1E361i¥91,400198805-198806
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E362i198806-198808
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E363i¥91,500198808-198908
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1E400i¥99,700198802-198806
W(*PW & *BDEL)
main82131-1E401i198806-198808
W(*PW & *BDEL)
main82131-1E402i¥99,700198808-198908
W(*PW & *BDEL)
main82131-1E410i¥118,000198802-198806
W(CRUISE CONTROL)
main82131-1E411i198806-198808
W(CRUISE CONTROL)
main82131-1E412i¥117,000198808-198908
W(CRUISE CONTROL)
main82131-1E720i¥99,700198802-198806
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1E721i198806-198808
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1E722i¥99,700198808-198908
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1E740i¥84,700198802-198806
W(*BDEL & CRUISE CONTROL)
main82131-1E741i198806-198808
W(*BDEL & CRUISE CONTROL)
main82131-1E742i¥84,700198808-198908
W(*BDEL & CRUISE CONTROL)
main82131-1H490i¥85,100198908-199008
main82131-1H491i¥91,200199008-199206
main82131-1H500i¥91,800198908-199008
main82131-1H501i¥91,200199008-199206
main82131-1H510i¥101,000198908-199008
W(CRUISE CONTROL)
main82131-1H511i¥108,000199008-199206
W(CRUISE CONTROL)
main82131-1H520i¥91,800198908-199009
W(*PW & *BDEL)
main82131-1H530i¥109,000198908-199009
W(CRUISE CONTROL)
main82131-1H560i¥101,000198908-199009
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1H570i¥118,000198908-199009
W(*BDEL & CRUISE CONTROL)
main82131-1H600i¥91,800198908-199008
main82131-1H601i¥91,800199008-199108
main82131-1H602i¥91,200199108-199206
main82131-1H620i¥109,000198908-199008
W(CRUISE CONTROL)
main82131-1H621i¥109,000199008-199108
W(CRUISE CONTROL)
main82131-1H622i¥102,000199108-199206
W(CRUISE CONTROL)
main82131-1H630i¥101,000198908-199009
W(*PW & *BDEL)
main82131-1H640i¥118,000198908-199009
W(CRUISE CONTROL)
main82131-1H650i¥101,000198908-199009
W(BACK DOOR ELECTROMAGNETIC LOCK)
main82131-1H660i¥118,000198908-199009
W(*BDEL & CRUISE CONTROL)
main82131-1H670i¥101,000198908-199008
W(ANTI-THEFT DEVICE SYSTEM)
main82131-1H671i¥99,400199008-199206
W(ANTI-THEFT DEVICE SYSTEM)
82141WIRE, INSTRUMENT PANEL
main82141-12020i¥14,800198708-198908
main82141-12100i¥16,300198908-199206
82210CFUSIBLE LINK
main90982-08188i¥710198708-198908
30A,TERM.:FEMALE,PNK
main90982-08188i¥710198908-199206
30A,TERM.:FEMALE,PNK
main90982-08189i¥440198802-199206
40A,TERM.:FEMALE,GRN
main90982-08203i¥460198908-198912
80A,TERM.:MALE,BLK
main90982-08203i¥460198710-198908
80A,TERM.:MALE,BLK
main90982-08223i¥710198710-199206
30A,TERM.:MALE,PNK
main90982-08246i¥440198908-199206
100A,TERM.:MALE,BLUE
82345DIODE
main82345-12050i¥790198708-199206
NO.4
main82345-12050i¥790198908-199206
NO.4
main82345-20050i¥850198708-199206
NO.6
main82345-22051i¥980198908-199009
NO.7
main82345-22051i¥980198802-198908
NO.7
main82345-32020i¥1,030198708-198908
NO.8
main82345-32020i¥1,030198908-199206
NO.8
82625TERMINAL, FUSIBLE LINK
main82625-12020i¥1,340198710-198908
main82625-12060i¥1,350198802-199206
82670BLOCK ASSY, JUNCTION, NO.1
main82670-12090i¥13,000198708-198908
82671BLOCK, JUNCTION
main82671-12030i¥13,000198708-199206
NO.1
main82671-12070i¥1,780198708-199206
NO.2
82672COVER, JUNKTION BLOCK
main82672-12110i¥1,160198708-198908
main82672-12111i¥1,240198908-199206
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-14350i¥940198708-199206
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-32010i¥1,070198708-199206
82817CPROTECTOR, WIRING HARNESS, NO.4
main82817-12700i¥1,850198908-199206
82821ACOVER, CONNECTOR
main82821-12180i¥620198710-198908
main82821-12230i¥620198802-198908
main82821-12230i¥620198908-199206
NO.2
main82821-12260i¥580198802-198908
main82821-12260i¥580198908-199206
NO.1
82823CAP, TERMINAL, NO.1
main82823-22050i¥390198708-199206
82824CONNECTOR, WIRING HARNESS
main82824-32030i¥630198708-199206
9010508096
main90105-08096¥160
9010510122
main90105-10122¥160
9011906005
main90119-06005¥80
9011906053
main90119-06053¥80
9011908063
main90119-08063¥120
9016745011
main90167-45011¥120
9017906132
main90179-06132¥120
9161160812
main91611-60812¥140
9165640620
main91656-40620¥120

27 parts on this diagram · 9 diagrams in section
