Toyota COROLLA JPP — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

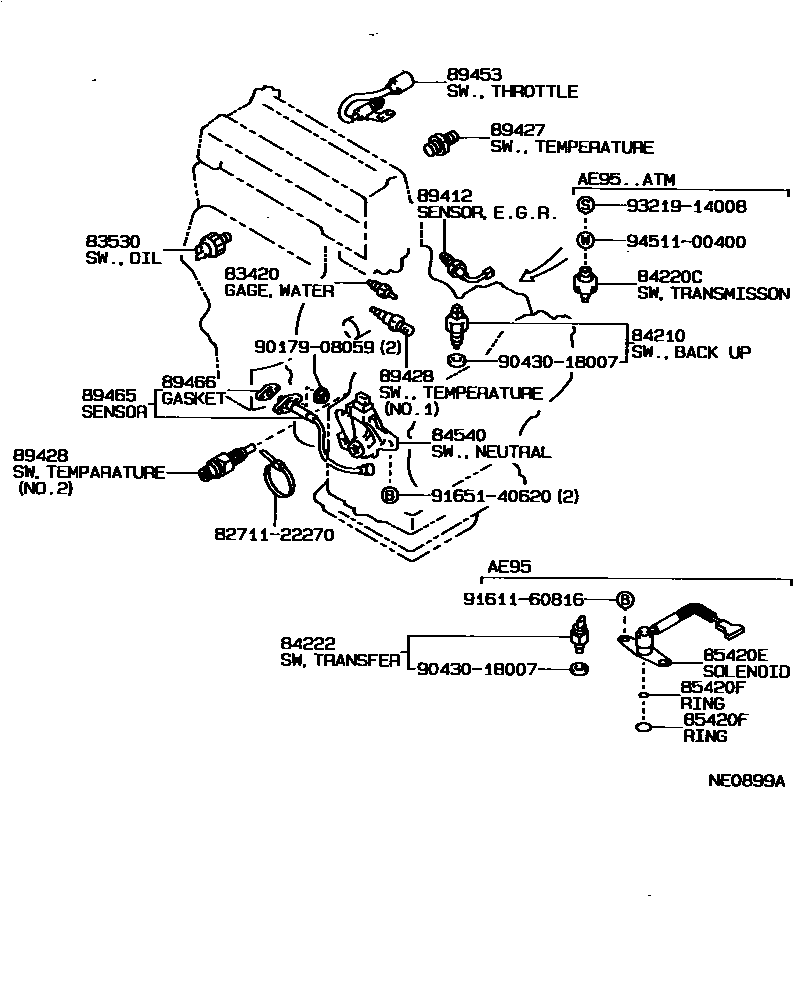

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE9#¥3,730198708-199009

main83420-16020iAE92¥3,730199009-199206

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050iAE9#¥1,330198708-198908

sub83530-30051¥1,320

main83530-30050iAE9#¥1,330198908-199003

sub83530-30051¥1,320

main83530-30051iAE9#¥1,320199003-199206

sub83530-60050¥3,150

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE9#..5F¥2,910198708-199206

sub84210-52050¥1,360

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iAE95..4FC¥2,830198802-199009

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE95..5F¥3,240198802-199009

84540SWITCH ASSY, NEUTRAL START

main84540-16030iAE9#..ATM¥20,100198708-199206

85420ESOLENOID ASSY, TRANSMISSION

main85420-12080iAE95..4FC¥16,100198802-199009

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE95..4FC¥160198802-199009

1D=10.0

main90301-23001iAE95..4FC¥370198802-199009

1D=23.5

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iAE95..USA;AE92..5F..USA¥10,500198908-199106

main89412-12010iAE92..ATM..USA¥10,500198708-198710

main89412-12010iAE92..USA¥10,500198710-198908

main89412-12010iAE92..SED..USA;AE92..WG..5F..USA¥10,500199106-199206

89427SWITCH, TEMPERATURE DETECT

main89427-12090iAE92¥5,300198708-198908

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12100iAE95..4FC¥6,000198908-199009

NO.2

main89428-12100iAE95..4FC¥6,000198802-198908

NO.2

main89428-15011iAE9#¥5,900198908-199206

NO.1

sub89428-32010¥6,000

main89428-15011iAE9#¥5,900198708-198908

NO.1

sub89428-32010¥6,000

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12040iAE92¥2,680198708-198908

89465SENSOR, OXYGEN

main89465-19225iAE95¥9,800198802-198908

main89465-19255iAE92¥9,800198708-198908

sub89465-29166¥9,900

main89465-19355iAE95¥10,700198908-199009

main89465-19395iAE92¥9,800198908-199206

89466GASKET, OXYGEN SENSOR

main89466-20020iAE9#¥1,170198810-199206

main89466-30010iAE9#¥850198708-198810

sub89466-20020¥1,170

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270¥280

9017908059

main90179-08059¥300

9043018007

main90430-18007¥210

9161160816

main91611-60816¥230

9165140620

main91651-40620¥70

9321914008

main93219-14008¥130

9451100400

main94511-00400¥200

21 parts on this diagram · 11 diagrams in section
