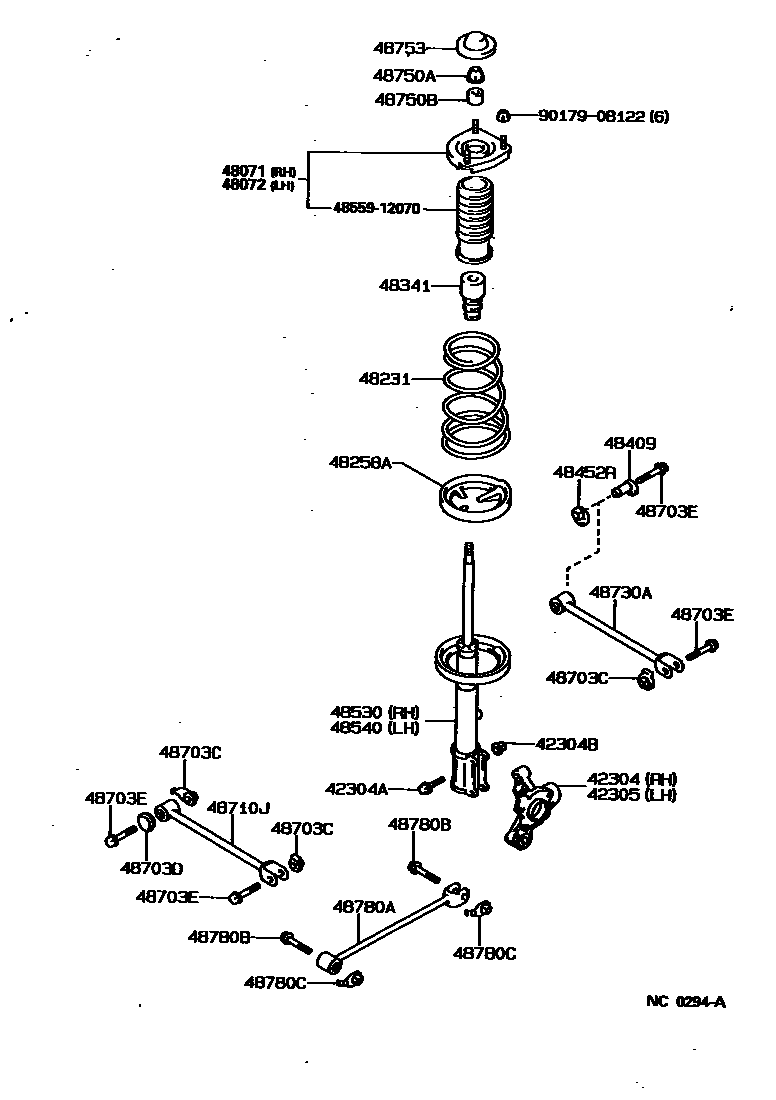

Toyota COROLLA JPP — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48231SPRING, COIL, REAR
48258AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-12160
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-12100
48703CNUT(FOR REAR SUSPENSION ARM)
BODY SIDE
BODY SIDE
CARRIER SIDE
CARRIER SIDE
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*12-1.25PX86-30
*12-1.25PX71-34
*12-1.25PX71-34
*12-1.25PX86-26
*12-1.25PX86-26
48710ARM ASSY, UPPER CONTROL
48710JARM ASSY, REAR SUSPENSION, NO.1
48730AARM ASSY, REAR SUSPENSION, NO.2
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
CARRIER SIDE
BODY SIDE
BODY SIDE
4855912070COVER, SHOCK ABSORBER, DUST
9017908122
27 parts on this diagram · 2 diagrams in section
