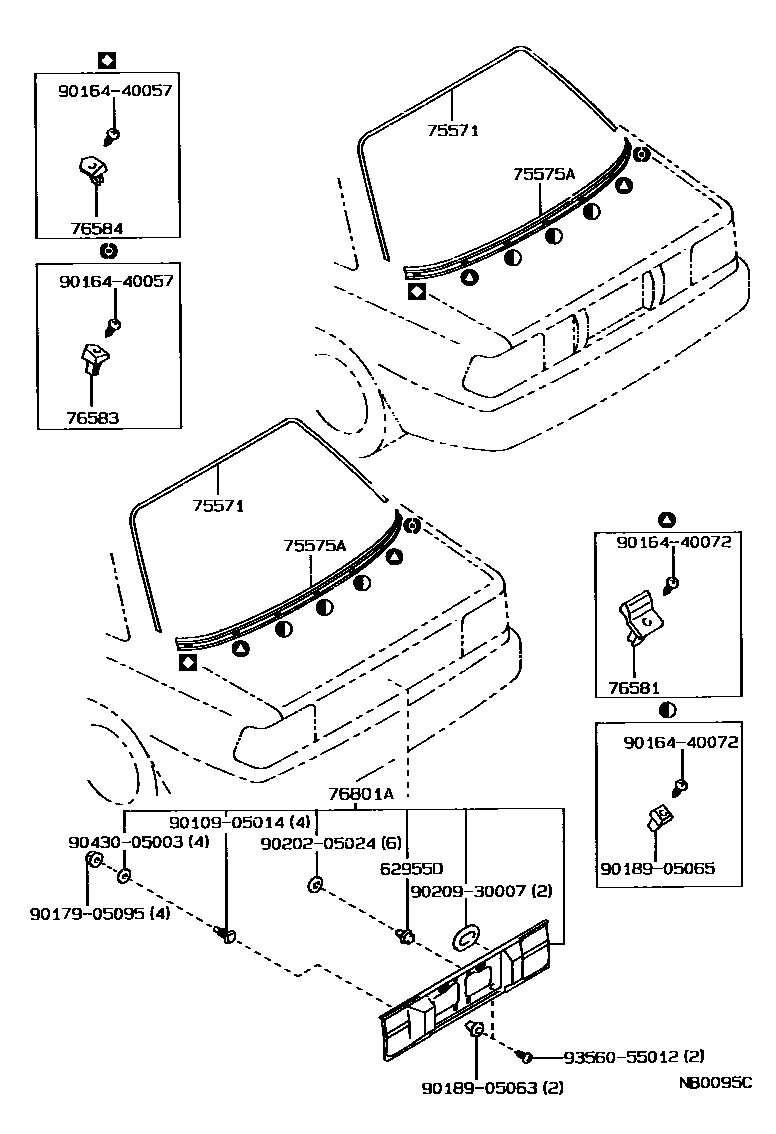

Toyota COROLLA JPP — REAR MOULDING

0001 1 0002 1 0003 1

62955DRETAINER, LUGGAGE COMPARTMENT DOOR GARNISH

main62955-12010iAE92..LE¥180198708-199008

main62955-12040iAE92..SED..(DX,LE)¥170199008-199206

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75507-12040iAE95..WG¥3,050198802-199009

main75571-12270iAE9#..SED..(DX,STD)¥2,790198708-199206

main75571-12280iAE92..LE¥3,950198708-199008

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-12210iAE9#..SED..(DX,STD)¥4,960198708-199206

main75575-12220iAE92..LE¥4,960198708-199008

main75575-12300iAE95¥5,800198802-198804

main75575-12301iAE95..WG¥5,700198804-199009

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-12010iAE9#..SED¥160198708-199206

main76581-12040iAE95..WG¥210198802-199009

76583RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH

main76583-12030iAE9#..SED¥110198708-199206

main76583-12040iAE95..WG¥210198802-199009

76584RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH

main76584-12010iAE9#..SED¥110198708-199206

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-12250iAE95..WG¥21,700198802-199009

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-12210iAE92..LE¥26,300198708-199008

main76801-12290iAE9#..SED..(DX,STD)¥14,500198808-199008

main76801-12360iAE92..SED..(DX,LE)¥34,100199008-199206

9010905014

main90109-05014¥210

9016440057

main90164-40057¥110

9016440072

main90164-40072¥120

9017905095

main90179-05095¥240

9018905063

main90189-05063¥90

9018905065

main90189-05065¥120

9020205024

main90202-05024¥120

9020930007

main90209-30007¥140

9043005003

main90430-05003¥60

9356055012

main93560-55012¥120

18 parts on this diagram · 3 diagrams in section
