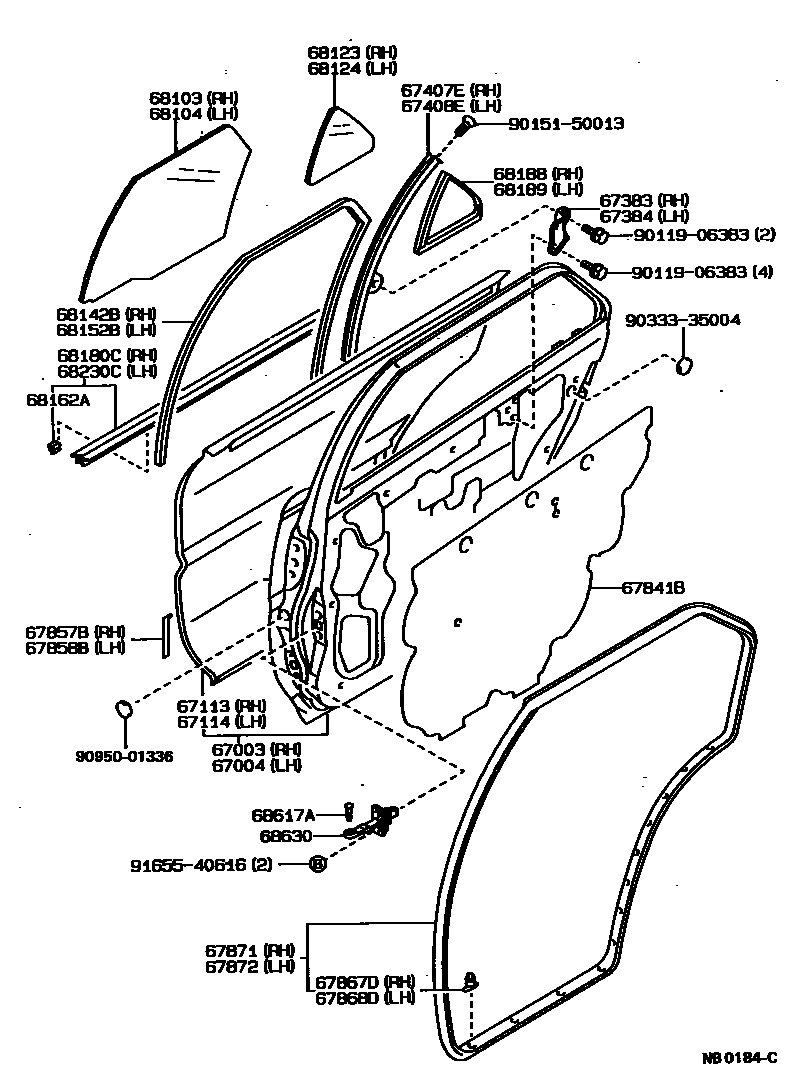

Toyota COROLLA JPP — REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH
67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841BCOVER, REAR DOOR SERVICE HOLE
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
ORANGE
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
ORANGE
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
*TT,T=3.5,BLUE
*TT,=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
*TT,T=3.5,BLUE
*TT,T=3.5
68142BRUN, REAR DOOR WINDOW, RH
68152BRUN, REAR DOOR WINDOW, LH
68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68617APIN, REAR DOOR CHECK
68630CHECK ASSY, REAR DOOR
9011906383
9015150013
9033335004
9095001336
9165540616
33 parts on this diagram · 2 diagrams in section
