Toyota COROLLA JPP — PARTIAL ENGINE ASSEMBLY

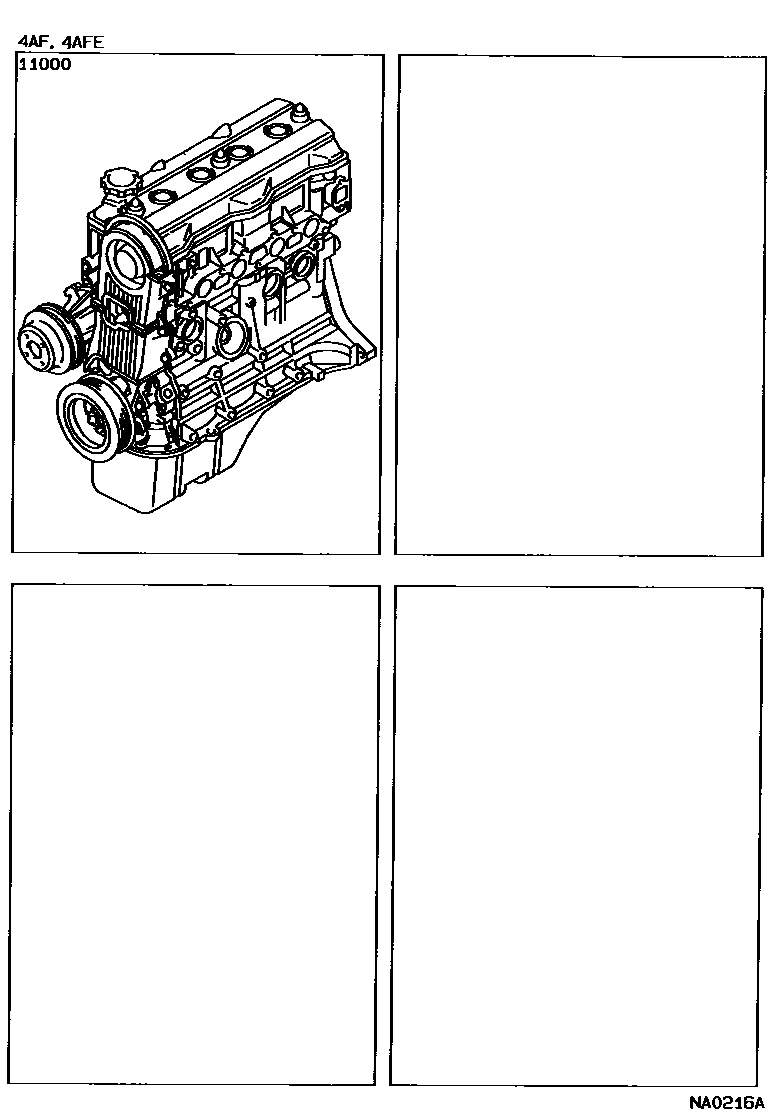

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-16440i198708-198908

main19000-16450i198708-198908

CALIFORNIA SPEC

main19000-16590i¥599,000198802-198908

sub19000-16591¥601,000

main19000-16721i¥559,000198908-199206

main19000-16731i¥559,000198908-199206

CALIFORNIA SPEC

main19000-16820i¥565,000198908-198911

sub19000-16821¥565,000

main19000-16821i¥565,000198911-199004

sub19000-16822¥565,000

main19000-16822i¥565,000199004-199009

sub19000-16823¥559,000

1 parts on this diagram · 1 diagram in section
