Toyota COROLLA JPP — PARKING BRAKE & CABLE

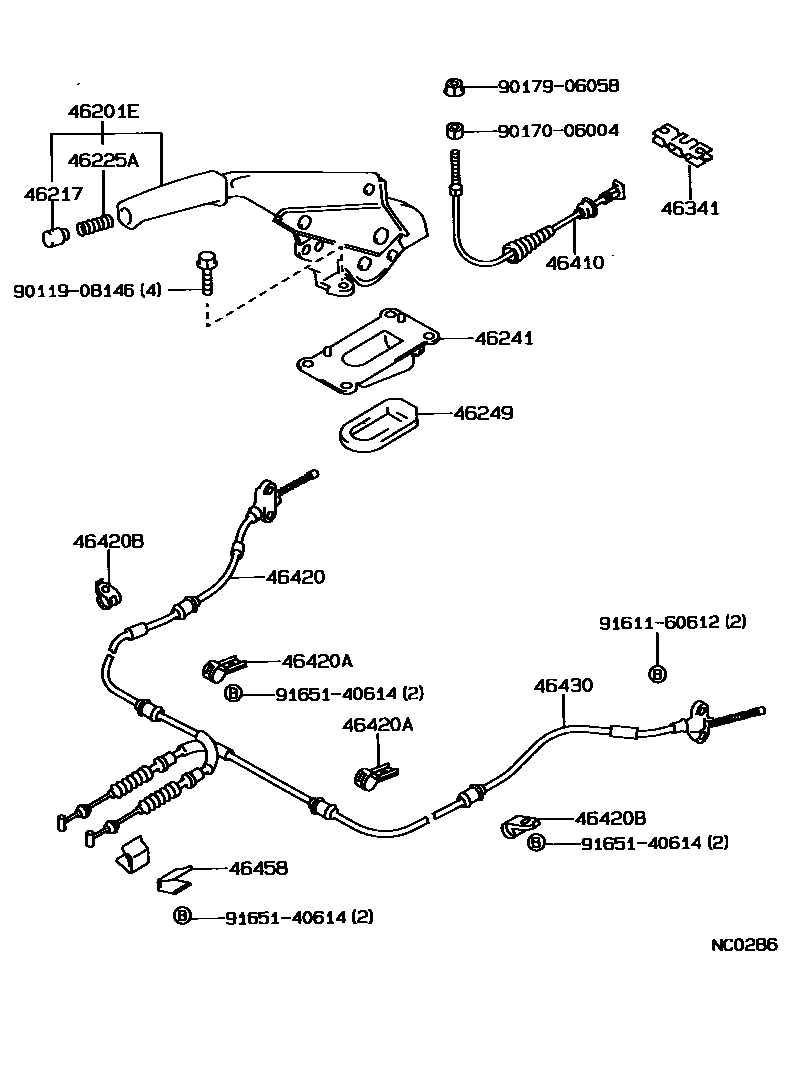

Parts diagram
46201ELEVER SUB-ASSY, PARKING BRAKE
main46201-12100-02i198708-198801
MAROON,TRIM3#
sub46201-12101¥3,140
main46201-12100-03i198708-198801
SHADOW GRAY,TRIM1#
sub46201-12101¥3,140
main46201-12100-04i198708-198801
DARK BLUE,TRIM8#
sub46201-12101¥3,140
main46201-12100-05i198708-198801
DARK BEIGE,TRIM4#
sub46201-12101¥3,140
main46201-12101i¥3,140199008-199206
main46201-12101i¥3,140199202-199206
DX PACKAGE
main46201-12101-03i198801-199009
SHADOW GRAY,TRIM1#
sub46201-12101¥3,140
main46201-12101-06i198908-199206
BROWN,TRIM4#
sub46201-12101¥3,140
main46201-12101-D0i198901-198908
MAROON,TRIM3#
sub46201-12101¥3,140
main46201-12101-E0i198809-198908
DARK BEIGE,TRIM4#
sub46201-12101¥3,140
main46201-12101-J0i198809-199206
DARK BLUE,TRIM8#
sub46201-12101¥3,140
main46201-12110-02i198708-198801
MAROON,TRIM3#
sub46201-12111¥3,250
main46201-12110-03i198708-198801
SHADOW GRAY,TRIM1#
sub46201-12111¥3,250
main46201-12110-04i198708-198801
DARK BLUE,TRIM8#
sub46201-12111¥3,250
main46201-12110-05i198708-198801
DARK BEIGE,TRIM4#
sub46201-12111¥3,250
main46201-12111-03i198801-199009
SHADOW GRAY,TRIM1#
sub46201-12111¥3,250
sub46201-12101¥3,140
main46201-12111-06i198908-199206
BROWN,TRIM4#
sub46201-12111¥3,250
sub46201-12101¥3,140
main46201-12111-D0i198809-199206
MAROON,TRIM3#
sub46201-12111¥3,250
sub46201-12101¥3,140
main46201-12111-E0i198809-198908
DARK BEIGE,TRIM4#
sub46201-12111¥3,250
sub46201-12101¥3,140
main46201-12111-J0i198809-199206
DARK BLUE,TRIM8#
sub46201-12111¥3,250
sub46201-12101¥3,140
46217KNOB, PARKING BRAKE RELEASE ROD
main46217-12020-03i198801-199009
SHADOW GRAY,TRIM1#
sub46217-12020¥230
sub46217-16030¥240
main46217-12020-B2i199202-199206
SHADOW GRAY,TRIM1#
sub46217-12020¥230
sub46217-16030¥240
main46217-12020-D0i198801-199206
MAROON,TRIM3#
sub46217-12020¥230
sub46217-16030¥240
main46217-12020-E0i198801-198908
DARK BEIGE,TRIM4#
sub46217-12020¥230
sub46217-16030¥240
main46217-12020-E1i198908-199206
BROWN,TRIM4#
sub46217-12020¥230
sub46217-16030¥240
main46217-12020-J0i198801-199206
DARK BLUE,TRIM8#
sub46217-12020¥230
sub46217-16030¥240
main46217-20020-15i198708-198712
BEIGE,TRIM4#
sub46217-20020¥300
main46217-20020-42i198708-198712
MAROON,TRIM3#
sub46217-20020¥300
main46217-20020-43i198708-198712
SHADOW GRAY,TRIM1#
sub46217-20020¥300
main46217-20020-54i198708-198712
DARK BLUE,TRIM8#
sub46217-20020¥300
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
main90501-10069i¥160198708-199206
46241BOOT, PARKING BRAKE LEVER
main46241-12080i¥900198708-199206
46249SHIELD, PARKING BRAKE HOLE
main46249-32010i¥300198708-199206
46341EQUALIZER, PARKING BRAKE
main46341-12010i¥320198708-198712
main46341-32010i¥540198712-199206
46410CABLE ASSY, PARKING BRAKE, NO.1
main46410-12160i¥2,010198708-199206
main46410-12190i¥2,330198802-199009
46420CABLE ASSY, PARKING BRAKE, NO.2
main46420-12340i¥4,830198708-199206
main46420-12371i¥4,630198802-199009
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
main90461-12121i¥240198802-199009
LH
main90949-01016i¥370198708-199206
main90949-01479i¥330198802-199009
RH
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
main90949-01015i¥330198708-199107
main90949-01746i¥320199107-199206
46430CABLE ASSY, PARKING BRAKE, NO.3
main46430-12240i¥4,830198708-199206
main46430-12271i¥4,630198802-199009
46458RETAINER, CABLE
main46458-20020i¥270198708-198906
sub46458-50010¥340
main46458-50010i¥340198908-199206
9011908146
main90119-08146¥200
9017006004
main90170-06004¥130
9017906058
main90179-06058¥130
9161160612
main91611-60612¥130
9165140614
main91651-40614¥160

17 parts on this diagram · 1 diagram in section
