Toyota COROLLA JPP — METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080iAE92..5F..DX..USA198809-198908

12V 1.4W,W(SOCKET)

main83101-20080iAE92..5F..DX..USA198808-198809

12V 1.4W,W(SOCKET)

main83101-20080iAE92..LE..USA198708-198809

12V 1.4W,W(SOCKET)

main83101-20080iAE95..SR5;AE92..LE..CND;AE92..LE..USA..EFI198809-199206

12V 1.4W,W(SOCKET)

main83109-12030iAE95..4FC¥0198802-198908

12V 3.4W,BLUE CAP

main83109-12030iAE9#¥0198908-199206

12V 3.4W,BLUE CAP

main83109-12030iAE92;AE95..5F¥0198708-198908

12V 3.4W,BLUE CAP

main90981-11018iAE9#..LE,SR5¥140198809-199206

12V 1.2W W/O SOCKET

main90981-11018iAE9#..LE,SR5¥140198708-198809

12V 1.2W W/O SOCKET

main90981-11018iAE95..4FC¥140198802-198908

12V 1.2W W/O SOCKET

main90981-11018iAE9#..5F..DX¥140198808-198809

12V 1.2W W/O SOCKET

main90981-11018iAE95..4FC¥140198908-199009

12V 1.2W W/O SOCKET

main90981-11018iAE9#..(3FC,5F)..(DX,STD)¥140198708-199206

12V 1.2W W/O SOCKET

main99132-12034iAE9#..(3FC,5F)..(DX,STD)¥100198908-199206

12V 3.4W

main99132-12034iAE95..4FC;AE9#..LE,SR5¥100198708-198908

12V 3.4W

main99132-12034iAE95..5F..DX..USA¥100198802-198908

12V 3.4W

main99132-12034iAE95..4FC..CND¥100198908-199009

12V 3.4W

main99132-12034iAE9#..5F..DX¥100198808-199206

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAE9#..(3FC,5F)..(DX,STD)198908-199206

12V 3.4W BULB

main83101-14030iAE9#..5F..DX198808-199206

12V 3.4W BULB

main83101-14030iAE92..DX;AE95..5F..DX..CND198708-198908

12V 3.4W BULB

main83101-14030iAE95..4FC198802-198908

12V 3.4W BULB

main83101-14030iAE9#..LE,SR5198708-199206

12V 3.4W BULB

main83101-14030iAE95..4FC198908-199009

12V 3.4W BULB

main83101-14040iAE9#..5F..DX198809-199206

14V 1.4W BULB

main83101-14040iAE9#..LE,SR5198708-198809

14V 1.4W BULB

main83101-14040iAE9#..5F..DX198808-198809

14V 1.4W BULB

main83101-14040iAE95..4FC198802-198908

14V 1.4W BULB

main83101-14040iAE95..4FC198908-199009

14V 1.4W BULB

main83101-14040iAE9#..(3FC,5F)..(DX,STD)198708-199206

14V 1.4W BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-13090iAE95..4FC198908-199009

NO.1

main83247-13090iAE95..4FC198802-198908

NO.1

main83247-1E320iAE9#..(3FC,5F)..(DX,STD)198908-199206

NO.1

main83247-1E320iAE9#..(3FC,5F)..DX198708-198908

NO.1

main83247-1E600iAE9#..5F..DX198808-198908

W(TACHOMETER),NO.1

main83247-1E600iAE9#..5F..DX198908-199206

NO.1

main83247-1E600iAE9#..5F..DX198908-199206

W(TACHOMETER),NO.1

main83247-1E600iAE9#..LE,SR5198708-198908

NO.1

main83247-1E820iAE92..5F..DX..USA198808-199206

W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER),NO.1

main83247-1E820iAE92..LE..USA198708-199206

W(ANTI-THEFT DEVICE SYSTEM),NO.1

main83247-1E860iAE92..LE..USA198708-199206

W(ANTI-THEFT DEVICE SYSTEM),NO.2

main83247-1E860iAE92..5F..DX..USA198808-199206

W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER),NO.2

main83247-1E880iAE92..DX..USA198708-199206

W(ANTI-THEFT DEVICE SYSTEM),NO.1

83110SPEEDOMETER ASSY

main83110-1E010iAE9#..DX..USA¥34,100198708-198908

main83110-1E011iAE9#..(DX,STD)..USA¥33,800198908-199206

main83110-1E020iAE9#..DX..CND198708-198908

main83110-1E021iAE9#..DX..CND¥33,700198908-199206

main83110-1E030iAE9#..(LE,SR5)..USA198708-198908

main83110-1E030iAE9#..5F..DX..USA198808-198908

W(TACHOMETER)

main83110-1E031iAE9#..(LE,SR5)..USA¥33,800198908-199206

W(TACHOMETER)

main83110-1E040iAE9#..5F..DX..CND198808-198908

W(TACHOMETER)

main83110-1E040iAE9#..(LE,SR5)..CND198708-198908

main83110-1E041iAE9#..(LE,SR5)..CND¥33,700198908-199206

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-1A230iAE9#..DX,STD198708-199206

main83132-1A270iAE9#..LE,SR5198708-199206

main83132-1A270iAE9#..5F..DX198808-199206

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-1A750iAE9#..DX,STD198708-199206

main83133-1E010iAE92..LE..USA198708-198908

main83133-1E010iAE92..5F..DX..USA198808-198908

W(TACHOMETER)

main83133-1E030iAE92..5F..DX..USA198808-198908

CALIFORNIA SPEC & W(TACHOMETER)

main83133-1E030iAE95..SR5;AE92..LE..CND198708-198908

CALIFORNIA SPEC

main83133-1E030iAE95..5F..DX;AE92..5F..DX..CND198808-198908

W(TACHOMETER)

main83133-1E030iAE9#..(LE,SR5)..USA198908-199206

W(TACHOMETER)

main83133-1E390iAE92..5F..DX..USA198808-198908

W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER)

main83133-1E390iAE92..LE..USA198708-198908

W(ANTI-THEFT DEVICE SYSTEM)

main83133-1E391iAE92..LE..USA198908-199206

W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER)

main83133-1E391iAE92..5F..DX..USA198908-199206

W(ANTI-THEFT DEVICE SYSTEM)

main83133-1E450iAE92..DX..USA198708-199206

W(ANTI-THEFT DEVICE SYSTEM)

main83133-1E790iAE9#..(LE,SR5)..CND198908-199206

W(TACHOMETER)

83138GLASS, SPEEDOMETER

main83138-1A030iAE9#198708-199206

83145LENS, METER, NO.1

main83145-13090iAE95..4FC198802-199009

NO.3

main83145-13130iAE95..4FC198802-199009

NO.1

main83145-1E570iAE9#..(3FC,5F)..(DX,STD)198708-199206

NO.3

main83145-1E690iAE9#..DX198708-198908

NO.2

main83145-1E690iAE9#..(DX,STD)..USA198908-199206

NO.2

main83145-1E750iAE9#..DX..CND198908-199206

NO.2

main83145-1E770iAE92..DX..USA198708-198908

NO.1

main83145-1E790iAE95..5F..DX;AE92..DX..CND;AE92..(DX,STD)..USA..EFI198708-199206

NO.1

main83145-1E790iAE92..DX..USA198708-198908

CALIFORNIA SPEC OR W(ANTI-THEFT DEVICE SYSTEM),NO.1

83248CHIME, SPEED WARNING

main86640-12120iAE92..WG..USA;AE92..WG..5F..CND¥2,550199008-199206

83310GAGE ASSY, FUEL RECEIVER

main83243-1A250iAE9#..5F..DX¥4,710198808-198908

W(TACHOMETER)

main83243-1A250iAE9#..LE,SR5¥4,710198708-198908

main83243-1A251iAE9#..5F..DX¥5,100198908-199206

W(TACHOMETER)

main83243-1A310iAE92..DX¥7,300198708-198802

main83243-1A310iAE92..DX..USA¥7,300198802-198908

main83243-1A311iAE9#..DX,STD¥5,900198908-199112

main83243-1A311iAE92..DX..USA¥5,900199112-199206

W(ANTI-THEFT DEVICE)

main83243-1A490iAE95..DX;AE92..DX..CND198802-198908

CALIFORNIA SPEC

main83243-1H490iAE92..DX,STD¥5,300199112-199206

9009300416

main90093-00416

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9016750020

main90167-50020¥120

9411540400

main94115-40400¥240

9451100400

main94511-00400¥200

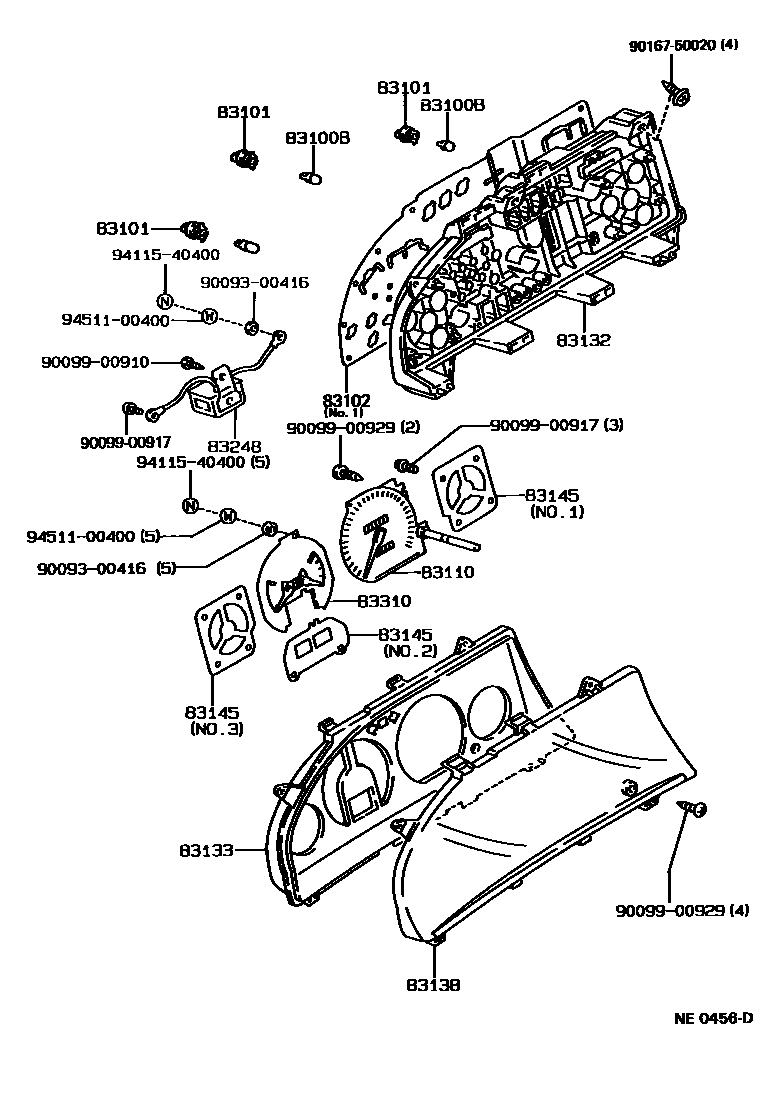

17 parts on this diagram · 3 diagrams in section
