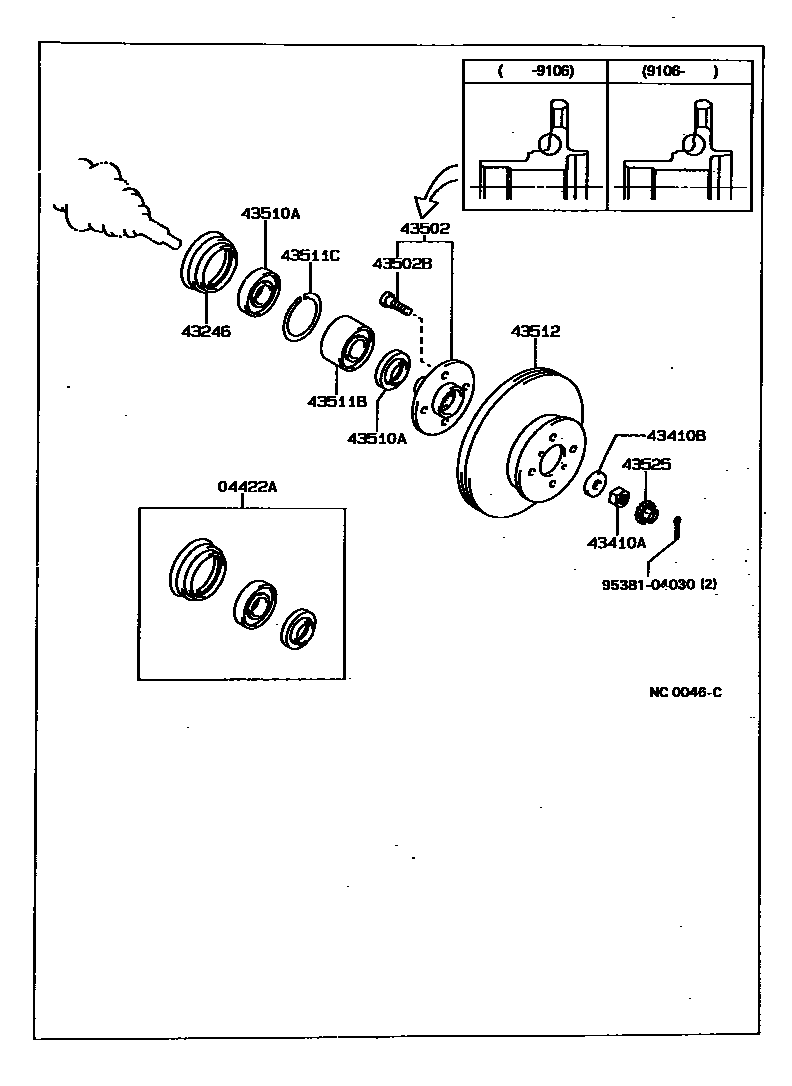

Toyota COROLLA JPP — FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-12020iAE9#¥1,220198708-199105

main04422-12040iAE92¥1,340199106-199206

sub04422-12070¥1,120

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-12010iAE9#¥370198708-199207

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001iAE9#¥320198708-199101

main90179-22020iAE92¥310199101-199206

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iAE9#¥340198708-199101

43502HUB SUB-ASSY, FRONT AXLE

main43502-12080iAE9#¥9,500199006-199105

sub43502-12100¥8,900

main43502-12100iAE92¥8,900199105-199106

sub43502-12110¥9,400

sub90311-52012¥350

main43502-12110iAE92¥9,400199106-199206

main43502-20030iAE9#¥8,900198708-199006

sub43502-12100¥8,900

sub43502-20110¥9,400

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAE9#¥230198708-199105

main90942-02049iAE92¥240199105-199206

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-52006iAE9#¥350198708-199106

OUTER

main90311-52012iAE92¥350199106-199206

OUTER

sub90311-52018¥350

main90311-56008iAE9#¥420198708-199106

INNER

main90311-56018iAE92¥420199106-199206

INNER

sub90311-56026¥420

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38011iAE9#¥6,500198708-199206

sub90363-38006¥6,500

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001iAE9#¥300198708-199206

OD=77

43512DISC, FRONT

main43512-12250iAE9#¥11,800198708-199206

sub43512-12440¥12,200

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAE9#¥250198708-199101

main43525-20030iAE92¥300199101-199206

9538104030

main95381-04030¥50

12 parts on this diagram · 1 diagram in section
