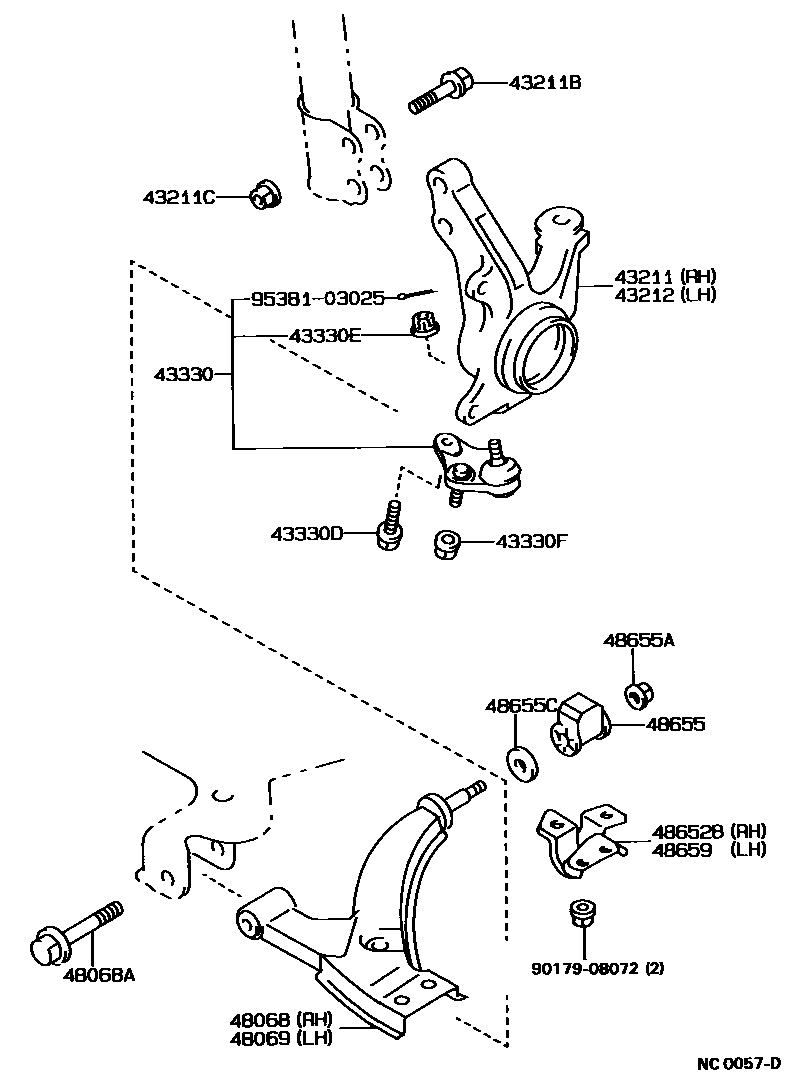

Toyota COROLLA JPP — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W(POWER STEERING)
W(POWER STEERING)
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
43212KNUCKLE, STEERING, LH
W(POWER STEERING)
W(POWER STEERING)
43330JOINT ASSY, LOWER BALL, FRONT
RH
LH
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48652BBRACKET, FRONT LOWER ARM, RH
48655BUSH, LOWER ARM, NO.2
48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)
48659BRACKET, FRONT LOWER ARM, LH
9017908072
9538103025
18 parts on this diagram · 1 diagram in section
