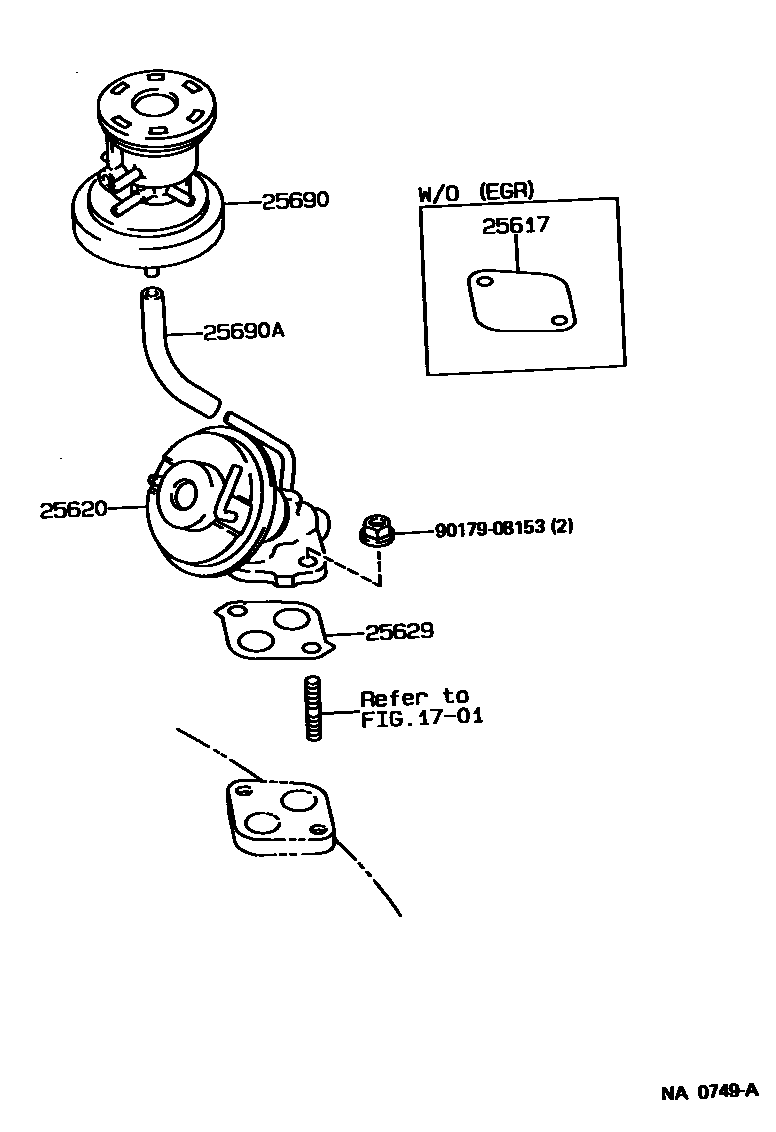

Toyota COROLLA JPP — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1701

25617PLATE, EGR HOLE COVER

main25617-16010i4AF..AE92..USA¥670198712-198908

25620VALVE ASSY, EGR

main25620-15330i4AFE..AE95..5F¥19,500198908-199009

main25620-16050i4AF..AE92..5F¥19,700198708-198908

main25620-16060i4AF..AE92..ATM¥19,700198708-198908

main25620-16070i4AF..AE92..5F..USA¥19,400198708-198908

CALIFORNIA SPEC

main25620-16080i4AF..AE92..ATM..USA¥19,800198708-198908

CALIFORNIA SPEC

main25620-16100i4AFE..AE95¥19,700198802-198908

main25620-16121i4AFE..AE95..5F¥19,500198908-199009

CALIFORNIA SPEC

main25620-16121i4AFE..AE92..5F..USA¥19,500198908-199206

main25620-16131i4AFE..AE95..4FC¥19,500198908-199009

CALIFORNIA SPEC

main25620-16131i4AFE..AE92..ATM..USA¥19,500198908-199206

main25620-16200i4AFE..AE95..4FC¥19,600198908-199009

25629GASKET, EGR VALVE ADAPTER

main25627-16020i4AFE..AE95¥350198908-199009

main25627-16020i4AF..AE92¥350198812-198908

main25627-16020i4AFE..AE92..USA¥350198908-199008

main25627-16020i4AFE..AE92..USA¥350199008-199206

main25627-16030i4AFE..AE95¥370198802-198908

sub25627-16031¥350

main25629-15020i4AF..AE92¥350198708-198812

sub25627-16020¥350

25690MODULATOR ASSY, EGR VACUUM

main25870-16060i4AF..AE92..5F¥7,600198710-198908

main25870-16070i4AF..AE92..ATM¥7,500198708-198908

main25870-16110i4AFE..AE95..4FC¥9,200198802-198908

main25870-16150i4AFE..AE92..ATM..USA¥7,500199008-199206

main25870-16150i4AFE..AE95..4FC¥7,500198908-199009

main25870-16150i4AFE..AE92..ATM..USA¥7,500198908-199008

main25870-16180i4AFE..AE95..5F¥7,500198909-199009

main25870-16180i4AFE..AE95..5F;4AFE..AE92..SED..5F..(DX,LE)..USA¥7,500198908-198909

main25870-16180i4AFE..AE92..5F..USA¥7,500198909-199008

main25870-16180i4AFE..AE92..5F..USA¥7,500199008-199206

main25870-16190i4AFE..AE95..5F¥7,500198802-198908

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16030i4AFE..AE95¥1,160198802-198908

main25695-16050i4AFE..AE92..USA¥740199008-199206

main25695-16050i4AFE..AE92..USA¥740198909-199008

main25695-16050i4AFE..AE95;4AFE..AE92..ATM..USA;4AFE..AE92..SED..5F..(DX,LE)..USA¥740198908-198909

main25695-16050i4AFE..AE95¥740198909-199009

main90445-11017i4AF..AE92¥260198708-198908

9017908153

main90179-08153¥90

7 parts on this diagram · 3 diagrams in section
