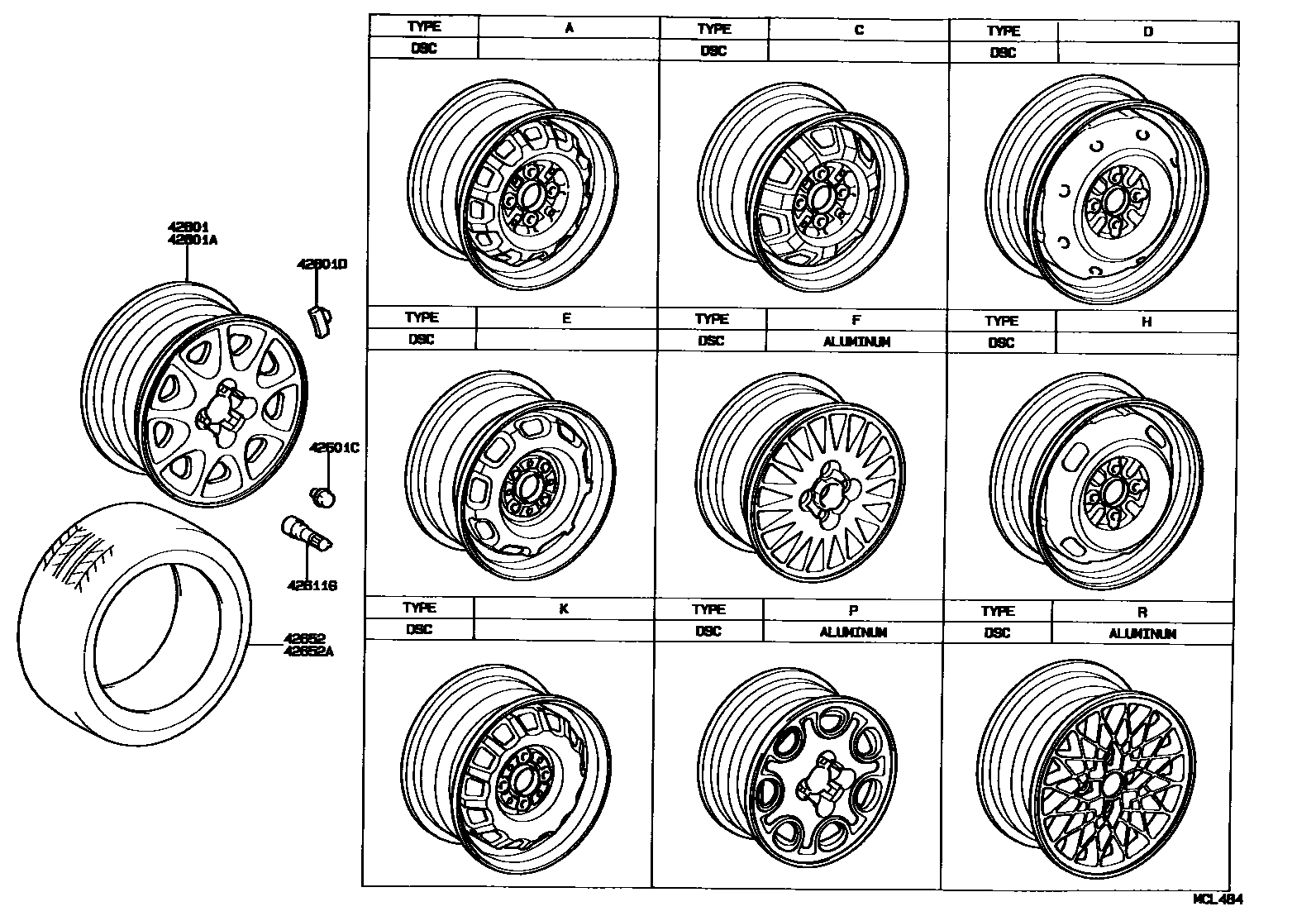

Toyota COROLLA JPP — DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-12760-01iAE92..WG198708-198808

13X5J,SILVER,040 ,164 ,168 ,3E5 ,3H4 ,4H5 ,4H6 ,4H8 ,8D7 ,8D8,TYPE A

sub42611-12760¥8,500

main42611-12760-01iAE92..WG198708-198808

13X5J,SILVER,040 ,164 ,168 ,3E6 ,3H4 ,4H5 ,4H6 ,4H8 ,8D7 ,8D8,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CND199008-199105

13X5J,SILVER,040 ,164 ,183 ,3E6 ,3H4 ,4J1 ,8G1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CBR198808-199008

13X5J,SILVER,040 ,164 ,168 ,3E6 ,3H4 ,4H6 ,4H8 ,4J5 ,8G1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CBR198808-199008

13X5J,SILVER,040 ,164 ,168 ,3E6 ,3H4 ,4E1 ,8G1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CBR198808-199008

13X5J,SILVER,040 ,164 ,168 ,3E5 ,3H4 ,4H6 ,4J5 ,8G1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CBR198808-199008

13X5J,SILVER,040 ,164 ,168 ,3E5 ,3H4 ,4E1 ,8G1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CND199008-199105

13X5J,SILVER,040 ,164 ,183 ,3E5 ,3H4 ,4J1 ,8G1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CND199105-199106

13X5J,SILVER,040 ,164 ,183 ,3E6 ,3H4 ,4J1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..WG..CND199105-199108

13X5J,SILVER,040 ,164 ,183 ,3E5 ,3H4 ,4J1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12760-03iAE92..STD;AE92..DX..CND199108-199206

13X5J,SILVER,040 ,183 ,3E5 ,4J1 ,8G2,TYPE A

sub42611-12760¥8,500

main42611-12820iAE95..WG¥8,600198802-198908

13X5J

main42611-12820iAE95..WG¥8,600198908-199009

13X5J,TYPE K

main42611-12820-03iAE95..WG198802-199009

13X5J,SILVER,TYPE K

sub42611-12820¥8,600

main42611-12850iAE92..LE..USA¥28,000198708-199206

13X5J,ALUMINUM,TYPE F

main42611-12870iAE92..LE..CND¥31,800198909-198910

13X5J,25TH ANNIVERSARY, TYPE R

main42611-1A030iAE95..SR5¥28,000198908-199009

13X5J,ALUMINUM

main42611-1A030iAE95..SR5¥28,000198802-198908

13X5J,ALUMINUM,TYPE P:REFER ILLUST.

main42611-20300iAE95..SED¥8,200198708-199009

13X5J,TYPE C

main42611-20300-03iAE92..LE..CND198805-199206

13X5J,DARK GRAY,TYPE C

sub42611-20300¥8,200

main42611-20410-03iAE92..LE;AE95..SED198708-199008

13X5J,SILVER M,TYPE E

sub42611-20410¥8,500

42601AWHEEL, DISC (FOR SPARE)

main42611-12820iAE95..SR5¥8,600198802-198908

13X5J

main42611-12820iAE95..WG¥8,600198908-199009

13X5J,TYPE K

main42611-12820-03iAE95..SR5198802-199009

13X5J,SILVER,TYPE K

sub42611-12820¥8,600

main42611-16220iAE92..4FC;AE92..5F..LE..USA¥6,300198708-199206

14X4T

main42611-16220iAE92¥6,300198708-199206

14X4T,TYPE H

main42611-1A020iAE95¥9,400198806-199009

15X4T

main42611-1A030iAE95..SR5¥28,000198802-198908

13X5J,ALUMINUM,TYPE P:REFER ILLUST.

main42611-1A030iAE95..SR5¥28,000198908-199009

13X5J,ALUMINUM

main42611-20300iAE95..SED¥8,200198908-199009

13X5J,TYPE C

main42611-20300-03iAE95..SED198908-199009

13X5J,DARK GRAY,TYPE C

sub42611-20300¥8,200

main42611-20410-03iAE95..SED198808-198908

13X5J,SILVER M,TYPE E

sub42611-20410¥8,500

main42611-20410-03iAE95..SED198908-199008

13X5J,SILVER M

sub42611-20410¥8,500

42601CNUT, HUB (FOR AXLE)

main90942-01007iAE92..4FC..USA¥230198708-199206

main90942-01021iAE95;AE92..LE¥330198802-199206

CAP NUT

main90942-01033iAE92..LE¥430198708-199206

W(ALUMINUM WHEEL)

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iAE92..LE..CND¥110198708-199206

20G,T=8

main90942-03020iAE92..LE..USA¥120198708-199206

30G,T=10

main90942-03022iAE92..LE..CND¥160198708-199206

40G,T=9.5

main90942-03025iAE92..LE..USA¥160198708-199206

50G,T=9.5

main90942-03027iAE92..LE..USA¥280198708-199206

60G,T=9.5

main90942-03029iAE92..LE..CND¥310198708-199206

70G,T=9.5

main90942-03031iAE92..LE..USA¥320198708-199206

80G,T=9.5

main90942-03041iAE92..LE¥100198708-199206

10G,T=7.5

main90942-03098iAE92..LE..CND¥110198708-199206

15G

main90942-03099iAE92..LE..USA¥120198708-199206

25G

main90942-03100iAE92..LE..CND¥130198708-199206

35G

main90942-03101iAE92..LE..CND¥160198708-199206

45G

main90942-03102iAE92..LE..USA¥280198708-199206

55G

main90942-03108iAE92..LE..CND¥300198708-199206

65G

main90942-03109iAE92..LE¥310198708-199206

75G

main90942-03146iAE92..LE..USA¥200198708-199206

10G,W(ALUMINUM WHEEL)

main90942-03147iAE92..LE..USA¥210198708-199206

15G,W(ALUMINUM WHEEL)

main90942-03148iAE92..LE..USA¥210198708-199206

20G,W(ALUMINUM WHEEL)

main90942-03149iAE92..LE¥220198708-199206

25G,W(ALUMINUM WHEEL)

main90942-03150iAE92..LE..CND¥220198708-199206

30G,W(ALUMINUM WHEEL)

main90942-03151iAE95..SR5¥230198708-199206

35G,W(ALUMINUM WHEEL)

main90942-03152iAE92..LE..CND¥230198708-199206

40G,W(ALUMINUM WHEEL)

main90942-03153iAE92..LE..CND¥240198708-199206

45G,W(ALUMINUM WHEEL)

main90942-03154iAE92..LE..CND¥240198708-199206

50G,W(ALUMINUM WHEEL)

main90942-03155iAE92..LE..CND¥440198708-199206

55G,W(ALUMINUM WHEEL)

main90942-03156iAE92..LE..CND¥440198708-199206

60G,W(ALUMINUM WHEEL)

main90942-03157iAE92..LE..USA¥470198708-199206

65G,W(ALUMINUM WHEEL)

main90942-03158iAE92..LE..CND¥470198708-199206

70G,W(ALUMINUM WHEEL)

main90942-03159iAE92..LE..USA¥480198708-199206

75G,W(ALUMINUM WHEEL)

main90942-03160iAE92..LE..CND¥480198708-199206

80G,W(ALUMINUM WHEEL)

main90942-03161iAE92..LE..CND¥100198708-199206

5G

main90942-03167iAE92..LE..USA¥200198708-199206

5G,W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAE95;AE92..USA;AE92..(3FC,5F)..CND;AE92..4FC..CND..EFI¥390198708-199206

42652TIRE

main42652-12670iAE92..3FC,5F198708-199206

155SR13

main42652-12720iAE95..DX198802-199009

165SR13

main42652-12740iAE92..DX198708-199206

175/70SR13

main42652-12760iAE95..SR5198802-199009

185/70R13

42652ATIRE (FOR SPARE)

main42652-12370iAE92198708-199206

T115/70D14

sub42652-16220

main42652-12720iAE95..DX198802-199009

165SR13

main42652-12760iAE95..SR5198802-199009

185/70R13

main42652-14270iAE95..SED198908-199009

T135/70D15

main42652-14270iAE95198802-199009

T135/70D15,BRIDGESTONE OR DUNLOP OP YOKOHAMA

7 parts on this diagram · 2 diagrams in section
