Toyota COROLLA JPP — CRANKSHAFT & PISTON

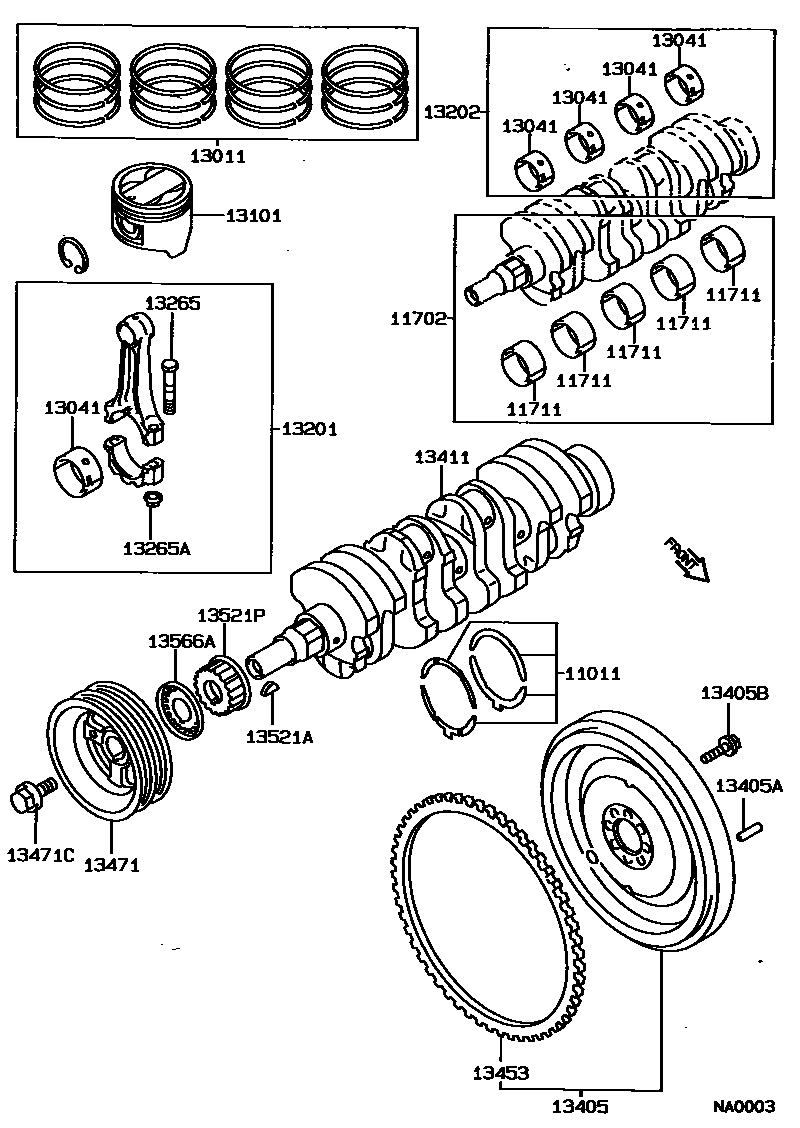

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-15010i¥2,030198708-199206
STD
sub11011-15020¥2,070
11702BEARING SET, CRANKSHAFT
main11704-15050i¥22,400198708-198808
U/S 0.25
sub11704-16010¥22,300
main11704-16010i¥22,300198808-199206
U/S 0.25
11711BEARING, CRANKSHAFT
main11701-15050-01i198708-198808
MARK 1
sub11701-16010¥5,200
main11701-15050-02i198708-198808
MARK 2
sub11701-16010¥5,200
main11701-15050-03i198708-198808
MARK 3
sub11701-16010¥5,200
main11701-15050-04i198708-198808
MARK 4
sub11701-16010¥5,200
main11701-15050-05i198708-198808
MARK 5
sub11701-16010¥5,200
main11701-16010-01i198808-199206
MARK 1
main11701-16010-02i198808-199206
MARK 2
main11701-16010-03i198808-199206
MARK 3
main11701-16010-04i198808-199206
MARK 4
main11701-16010-05i198808-199206
MARK 5
13011RING SET, PISTON
main13011-16120i¥16,100198708-199206
STD
sub13011-16130¥16,100
main13013-16120i¥16,100198708-199206
O/S 0.50
sub13013-16130¥16,100
13041BEARING, CONNECTING ROD
main13041-15030-01i198708-199206
MARK 1
sub13041-15031¥2,500
main13041-15030-02i198708-199206
MARK 2
sub13041-15031¥2,500
main13041-15030-03i198708-199206
MARK 3
sub13041-15031¥2,500
13101PISTON SUB-ASSY, W/PIN
main13101-16090i¥6,800198708-198801
STD
sub13101-16110¥4,350
main13101-16090-01i198801-199206
STD,MARK 1
sub13101-16090¥6,800
sub13101-16110¥4,350
main13101-16090-02i198801-199206
STD,MARK 2
sub13101-16090¥6,800
sub13101-16110¥4,350
main13101-16090-03i198801-199206
STD,MARK 3
sub13101-16090¥6,800
sub13101-16110¥4,350
main13103-16090i¥6,500198708-199206
O/S 0.50
sub13103-16110¥7,100
13201ROD SUB-ASSY, CONNECTING
main13201-19055i¥11,800198708-199201
sub13201-19056¥10,900
main13201-19056i¥10,900199201-199206
13202BEARING SET, CONNECTING ROD
main13204-15030i¥12,400198708-199206
U/S 0.25
sub13204-15031¥13,000
13265BOLT, CONNECTING ROD
main13265-15030i¥480199106-199206
main13265-16010i¥500198708-199106
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i¥170198708-199106
main90170-09005i¥170199106-199201
main90179-09008i¥160199201-199206
13405FLYWHEEL SUB-ASSY
main13405-15030i¥21,700198708-199206
main13405-16060i¥21,700198802-199009
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08120i¥140198708-199206
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042i¥110198708-199206
13411CRANKSHAFT
main13411-15040i¥75,500198708-198905
sub13411-15050¥83,200
main13411-15040i¥75,500198905-198908
sub13411-15050¥83,200
main13411-15040i¥75,500198908-199106
sub13411-15050¥83,200
main13411-15050i¥83,200199106-199108
sub13411-15900¥83,000
main13411-15900i¥83,000199108-199206
sub13411-02910¥82,400
13453GEAR, FLYWHEEL RING
main13453-10010i¥4,560198708-199206
13471PULLEY, CRANKSHAFT
main13470-15070i¥21,000198708-198908
main13470-16060i¥26,300198908-199202
sub13470-16061¥21,600
sub90119-12230¥510
main13470-16061i¥21,600199202-199206
sub13470-15070¥21,000
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-12101i¥410198708-199107
main90119-12230i¥510199107-199206
sub90119-12314¥390
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i¥110199106-199206
main90280-05010i¥260198708-198901
main95161-20519i¥100198901-199106
13521PPULLEY, CRANKSHAFT TIMING
main13521-15010i¥2,390198708-199206
13566AGUIDE, TIMING BELT
main13566-15010i¥210198708-199206

20 parts on this diagram · 1 diagram in section
