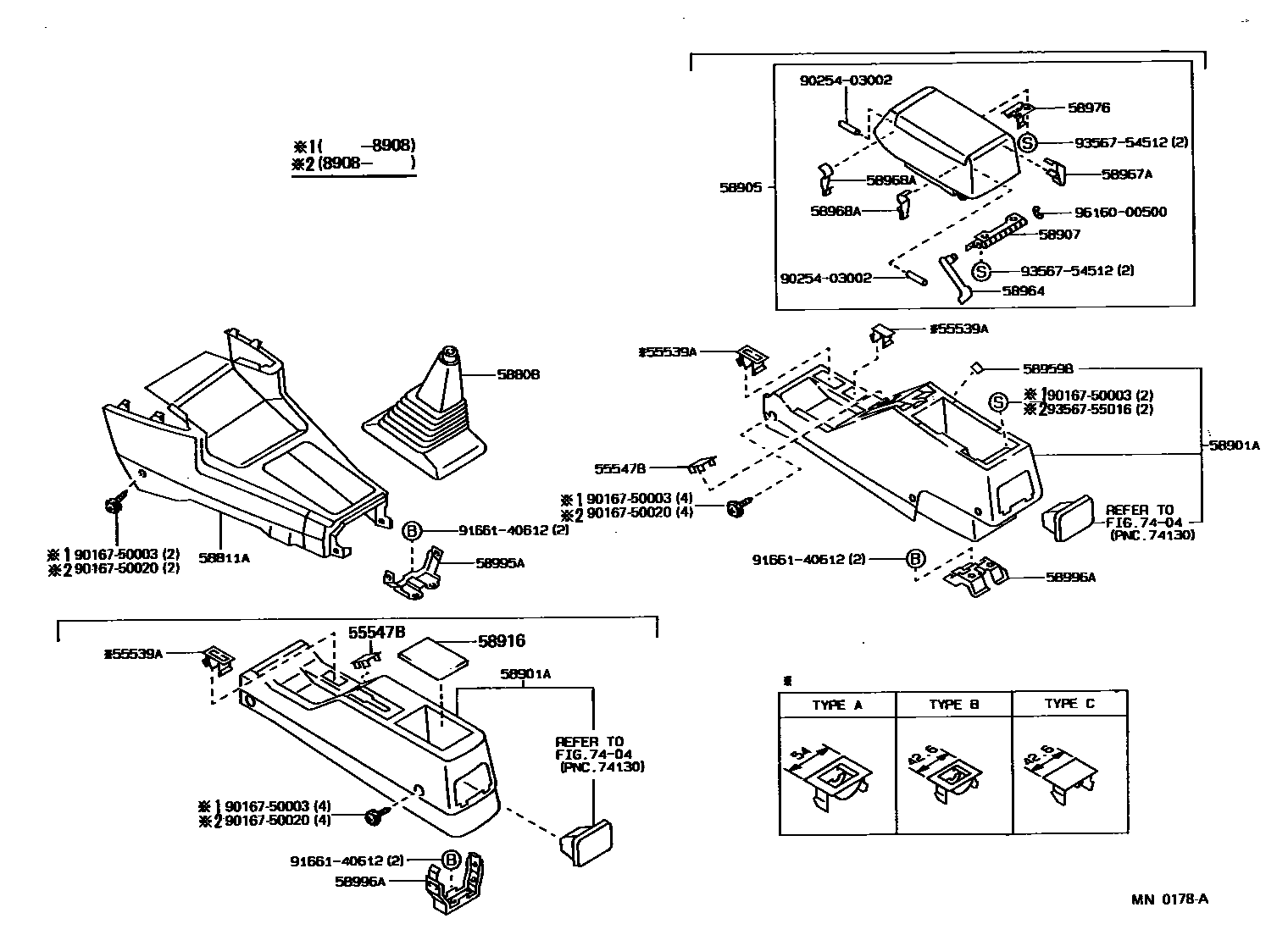

Toyota COROLLA JPP — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
MAROON,TRIM3#,TYPE A
SHADOW GRAY,TRIM1#,TYPE A
DARK BLUE,TRIM8#,TYPE A
DARK BLUE,TRIM8#,TYPE B
STD PACKAGE,GRAY,TRIM1#,TYPE C
GRAY,TRIM1#,TYPE C
STD PACKAGE,DARK BEIGE,TRIM4#,TYPE C
DARK BEIGE,TRIM4#,TYPE C
STD PACKAGE,MAROON,TRIM3#,TYPE C
MAROON,TRIM3#,TYPE C
MAROON,TRIM3#,TYPE C
STD PACKAGE,DARK BLUE,TRIM8#,TYPE C
DARK BLUE,TRIM8#,TYPE C
DARK BLUE,TRIM8#,TYPE C
BROWN,TRIM4#,TYPE C
BROWN,TRIM4#,TYPE C
55547BCOVER, REMOTE CONTROL MIRROR HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
58811ABOX, CONSOLE, FRONT
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
MAROON,TRIM3#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58967ASPRING, CONSOLE DOOR STOPPER
58968ABRACKET, CONSOLE DOOR STOPPER
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9016750003
9016750020
9025403002
9166140612
9356754512
9356755016
9616000500
23 parts on this diagram · 1 diagram in section
