Toyota COROLLA JPP — CENTER STOP LAMP

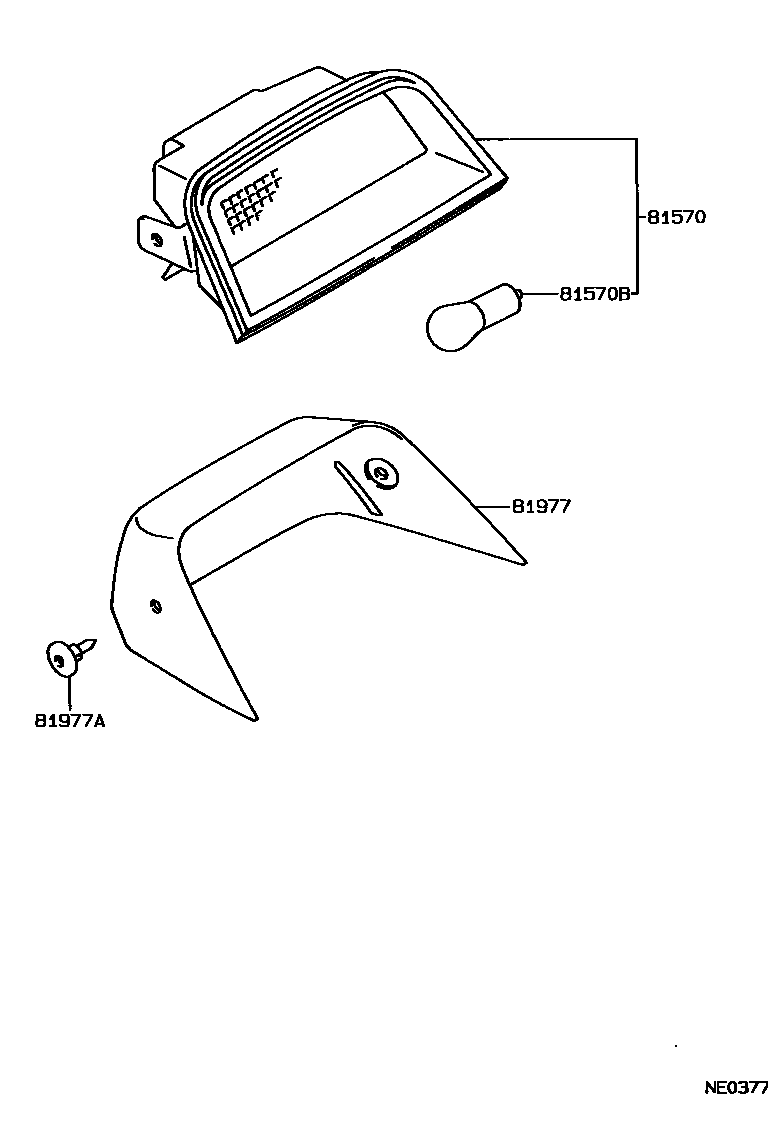

Parts diagram
81570LAMP ASSY, CENTER STOP
main81570-12050i¥7,900198708-199206
main81570-12060i¥7,900198802-199009
main81570-13010i¥7,900198710-199206
81570BBULB (FOR CENTER STOP LAMP)
main99132-11270i¥210198708-199206
12V 27W
81977COVER, CENTER STOP LAMP
main81977-12050-02i198708-199206
MAROON,TRIM3#
sub81977-12050¥1,840
main81977-12050-03i198708-199008
SHADOW GRAY,TRIM1#
sub81977-12050¥1,840
main81977-12050-04i198708-199206
DARK BLUE,TRIM8#
sub81977-12050¥1,840
main81977-12050-05i198708-198908
DARK BEIGE,TRIM4#
sub81977-12050¥1,840
main81977-12050-06i198908-199206
BROWN,TRIM4#
sub81977-12050¥1,840
main81977-12060-03i198802-199009
GRAY,TRIM1#
sub81977-12060¥2,650
main81977-12060-04i198802-199009
BLUE,TRIM8#
sub81977-12060¥2,650
main81977-12060-05i198802-198908
BEIGE,TRIM4#
sub81977-12060¥2,650
main81977-12060-06i198908-199009
BROWN,TRIM4#
sub81977-12060¥2,650
main81977-13010-03i198710-199206
SHADOW GRAY,TRIM1#
sub81977-13010¥2,640
main81977-13010-04i198710-199206
DARK BLUE,TRIM8#
sub81977-13010¥2,640
main81977-13010-05i198710-198908
DARK BEIGE,TRIM4#
sub81977-13010¥2,640
main81977-13010-06i198908-199206
BROWN,TRIM4#
sub81977-13010¥2,640
81977ACLIP (FOR CENTER STOP LAMP)
main90467-07055-03i198708-199008
GRAY,TRIM1#
sub90467-07055¥160
main90467-07055-24i198708-198807
DARK BLUE,TRIM8#
sub90467-07055¥160
main90467-07055-25i198708-198908
DARK BEIGE,TRIM4#
sub90467-07055¥160
main90467-07055-B2i199008-199206
SHADOW GRAY,TRIM1#
sub90467-07055¥160
main90467-07055-D0i198807-199206
MAROON,TRIM3#
sub90467-07055¥160
main90467-07055-E0i198908-199206
BROWN,TRIM4#
sub90467-07055¥160
main90467-07055-J0i198908-199206
DARK BLUE,TRIM8#
sub90467-07055¥160

4 parts on this diagram · 2 diagrams in section
