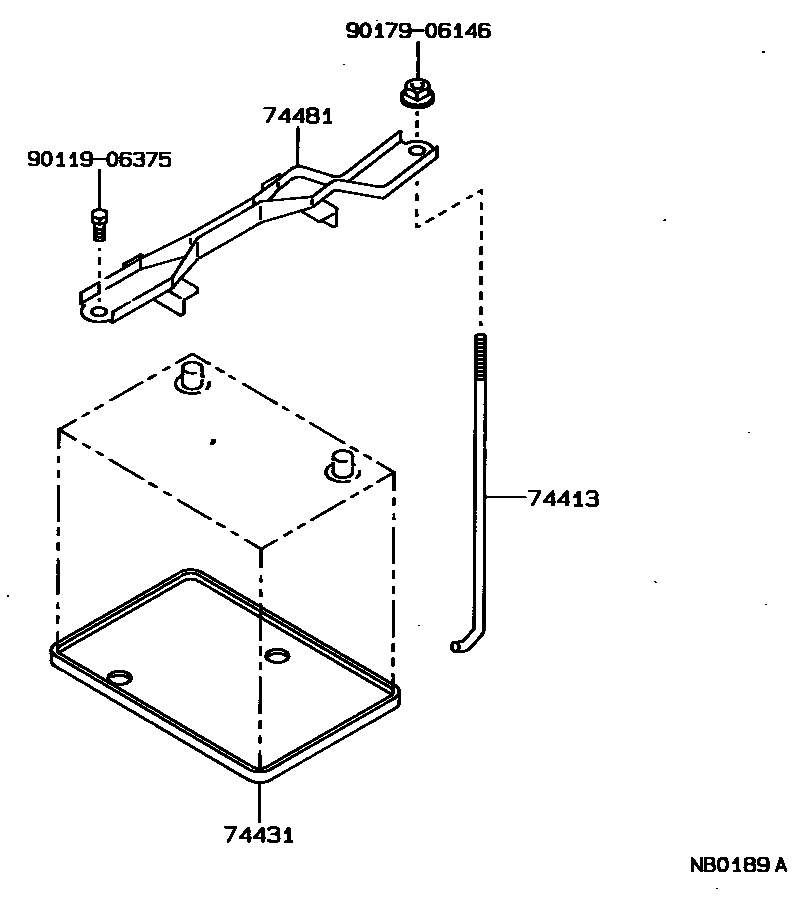

Toyota COROLLA JPP — BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-12050iAE9#¥300198708-199206

74431TRAY, BATTERY

main74431-12010iAE9#¥2,100198708-199206

sub74431-35030¥1,460

74481CLAMP, BATTERY HOLD DOWN

main74404-12270iAE9#¥2,490198708-199206

9011906375

main90119-06375¥70

9017906146

main90179-06146¥100

5 parts on this diagram · 1 diagram in section
