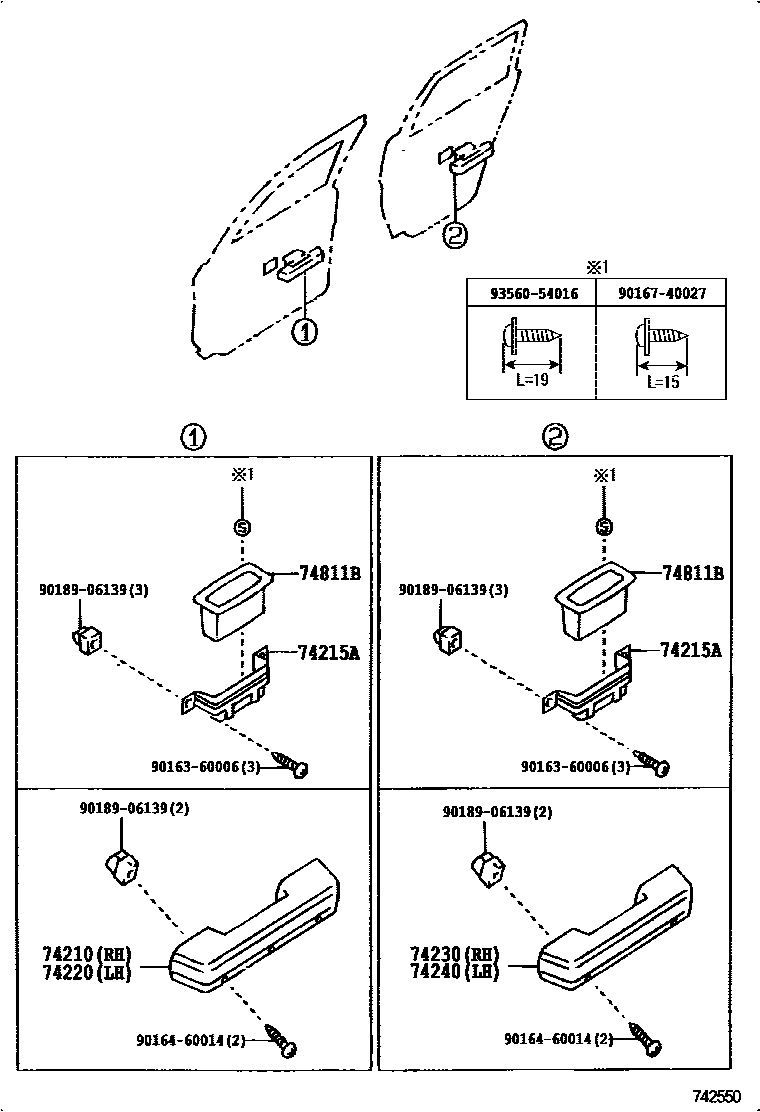

Toyota COROLLA JPP — ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-12110-02iAE9#..SED..(DX,STD)198708-198909

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-03iAE9#..DX,STD198708-199009

GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-04iAE92..SED..DX..USA198901-198908

BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-05iAE9#..DX198708-198908

DARK BEIGE,TRIM4#

sub74210-12110¥3,240

main74210-12110-24iAE9#..DX,STD198708-198909

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-36iAE9#..DX,STD198908-198909

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-B1iAE92..4FC..USA199202-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-B1iAE92..DX,STD199009-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-D0iAE92..4FC..USA199202-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-D0iAE9#..SED..(DX,STD)198909-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-E0iAE9#..DX,STD198909-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-E0iAE92..4FC..USA199202-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-J0iAE9#..DX,STD198909-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-J0iAE92..4FC..USA199202-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

74215ABASE, DOOR ARMREST RH

main74215-12020iAE9#..LE,SR5¥2,140198708-199206

main74215-12020iAE9#..LE,SR5¥2,140198908-199206

W(*PW),RH

main74215-12040iAE9#..LE,SR5¥2,430198908-199206

W(*PW),LH

74220ARMREST ASSY, FRONT, LH

main74210-12110-02iAE9#..SED..(DX,STD)198708-198909

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-03iAE9#..DX,STD198708-199009

GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-04iAE92..SED..DX..USA198901-198908

BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-05iAE9#..DX198708-198908

DARK BEIGE,TRIM4#

sub74210-12110¥3,240

main74210-12110-24iAE9#..DX,STD198708-198909

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-36iAE9#..DX,STD198908-198909

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-B1iAE92..DX,STD199009-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-B1iAE92..4FC..USA199202-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-D0iAE9#..SED..(DX,STD)198909-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-D0iAE92..4FC..USA199202-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-E0iAE92..4FC..USA199202-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-E0iAE9#..DX,STD198909-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-J0iAE9#..DX,STD198909-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-J0iAE92..4FC..USA199202-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

74230ARMREST ASSY, REAR, RH

main74210-12110-02iAE9#..SED..(DX,STD)198708-198909

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-03iAE9#..DX,STD198708-199009

GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-04iAE92..SED..DX..USA198901-198908

BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-05iAE9#..DX198708-198908

DARK BEIGE,TRIM4#

sub74210-12110¥3,240

main74210-12110-24iAE9#..DX,STD198708-198909

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-36iAE9#..DX,STD198908-198909

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-B1iAE92..4FC..USA199202-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-B1iAE92..DX,STD199009-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-D0iAE92..4FC..USA199202-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-D0iAE9#..SED..(DX,STD)198909-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-E0iAE92..4FC..USA199202-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-E0iAE9#..DX,STD198909-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-J0iAE92..4FC..USA199202-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-J0iAE9#..DX,STD198909-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

74240ARMREST ASSY, REAR, LH

main74210-12110-02iAE9#..SED..(DX,STD)198708-198909

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-03iAE9#..DX,STD198708-199009

GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-04iAE92..SED..DX..USA198901-198908

BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-05iAE9#..DX198708-198908

DARK BEIGE,TRIM4#

sub74210-12110¥3,240

main74210-12110-24iAE9#..DX,STD198708-198909

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-36iAE9#..DX,STD198908-198909

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-B1iAE92..4FC..USA199202-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-B1iAE92..DX,STD199009-199206

SHADOW GRAY,TRIM1#

sub74210-12110¥3,240

main74210-12110-D0iAE9#..SED..(DX,STD)198909-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-D0iAE92..4FC..USA199202-199206

MAROON,TRIM3#

sub74210-12110¥3,240

main74210-12110-E0iAE92..4FC..USA199202-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-E0iAE9#..DX,STD198909-199206

BROWN,TRIM4#

sub74210-12110¥3,240

main74210-12110-J0iAE9#..DX,STD198909-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

main74210-12110-J0iAE92..4FC..USA199202-199206

DARK BLUE,TRIM8#

sub74210-12110¥3,240

74811BHANDLE, DOOR PULL

main74811-12040-02iAE92..LE198708-199206

MAROON,TRIM3#

sub74811-12040¥460

main74811-12040-03iAE9#..LE,SR5198708-199206

SHADOW GRAY,TRIM1#

sub74811-12040¥460

main74811-12040-04iAE9#..LE,SR5198708-199206

DARK BLUE,TRIM8#

sub74811-12040¥460

main74811-12040-05iAE9#..LE,SR5198708-198908

DARK BEIGE,TRIM4#

sub74811-12040¥460

main74811-12040-06iAE9#..LE,SR5198908-199206

BROWN,TRIM4#

sub74811-12040¥460

9016360006

main90163-60006¥120

9016460014

main90164-60014¥100

9016740027

main90167-40027¥120

9018906139

main90189-06139¥130

9356054016

main93560-54016¥60

11 parts on this diagram · 3 diagrams in section
