Toyota COROLLA HATCHBACK — TELEPHONE & MAYDAY

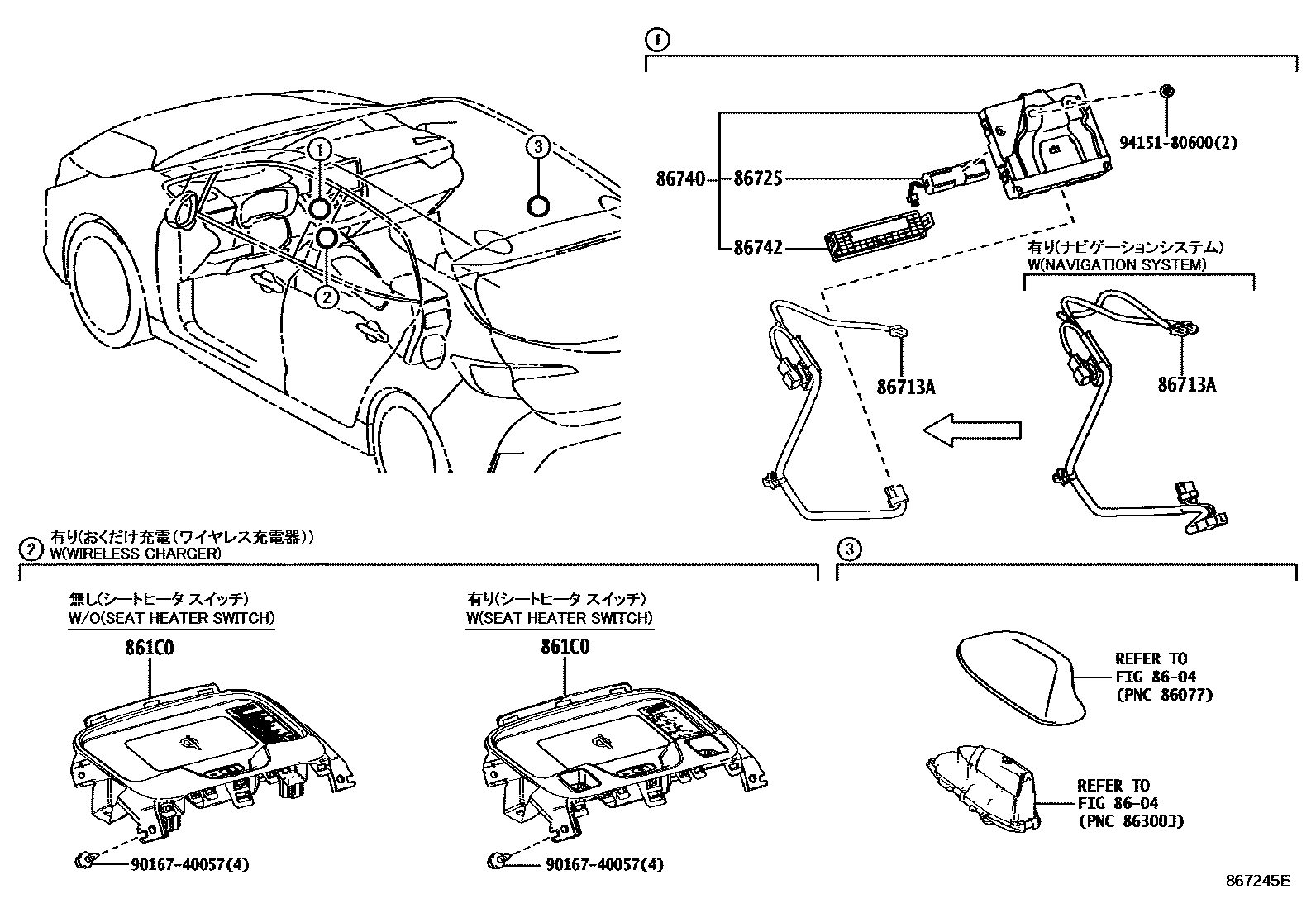

Parts diagram
8604
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
main861C0-12010¥41,800
main861C0-12011¥31,600
main861C0-12020¥31,600
86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)
main86713-12010i201806-201909
HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86713-12010i201806-201909
USA POSSESSION SPEC
main86713-12010i201806-201909
USA POSSESSION SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86713-12010i201806-201909
AUDIO(OVERSEAS MARKET)-T1 (8INCH) 6SPEAKER
main86713-12010i201806-201909
PUERTO RICO SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86713-12010i201806-201909
HAWAII SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86713-12010i201806-201909
USA POSSESSION SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86713-12010i201806-201909
PUERTO RICO SPEC
main86713-12010i201806-201909
HAWAII SPEC
main86713-12060i201909
PUERTO RICO SPEC
main86713-12060i201909
HAWAII SPEC
main86713-12060i201909
HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86713-12060i201909
USA POSSESSION SPEC
main86713-12060i201909
USA POSSESSION SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86713-12080i202209
86725BATTERY, MOBILEPHONE
main86725-06020i201909
DATA COMMUNICATION MODULE-WITHOUT
main86725-06020i202209
main86725-78010i¥8,300201806-201909
HAWAII SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86725-78010i¥8,300201806-201909
USA POSSESSION SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86725-78010i¥8,300201806-201909
AUDIO(OVERSEAS MARKET)-T1 (8INCH) 6SPEAKER
main86725-78010i¥8,300201806-201909
AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI 6SPEAKER
main86725-78010i¥8,300201806-201909
AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER
main86725-78010i¥8,300201806-201909
DATA COMMUNICATION MODULE-WITHOUT
main86725-78010i¥8,300201806-201909
PUERTO RICO SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
86740TRANSCEIVER ASSY, TELEPHONE
main86740-12090i201806-201909
PUERTO RICO SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
sub86740-02050
main86740-12090i201806-201909
AUDIO(OVERSEAS MARKET)-T1 (8INCH) 6SPEAKER
sub86740-02050
main86740-12090i201806-201909
AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI 6SPEAKER
sub86740-02050
main86740-12090i201806-201909
AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER
sub86740-02050
main86740-12090i201806-201909
DATA COMMUNICATION MODULE-WITHOUT
sub86740-02050
main86740-12090i201806-201909
HAWAII SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
sub86740-02050
main86740-12090i201806-201909
USA POSSESSION SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
sub86740-02050
86742COVER, TRANSCEIVER
main86742-06020i201909
DATA COMMUNICATION MODULE-WITHOUT
main86742-12010i201806-201909
HAWAII SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86742-12010i201806-201909
USA POSSESSION SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86742-12010i201806-201909
AUDIO(OVERSEAS MARKET)-T1 (8INCH) 6SPEAKER
main86742-12010i201806-201909
AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER
main86742-12010i201806-201909
DATA COMMUNICATION MODULE-WITHOUT
main86742-12010i201806-201909
PUERTO RICO SPEC&AUDIO(OVERSEAS MARKET)-T0 (8INCH) 6SPEAKER
main86742-12010i201806-201909
AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI 6SPEAKER
main86742-78010i202209
9016740057
main90167-40057¥60
9415180600
main94151-80600¥60

8 parts on this diagram · 3 diagrams in section
