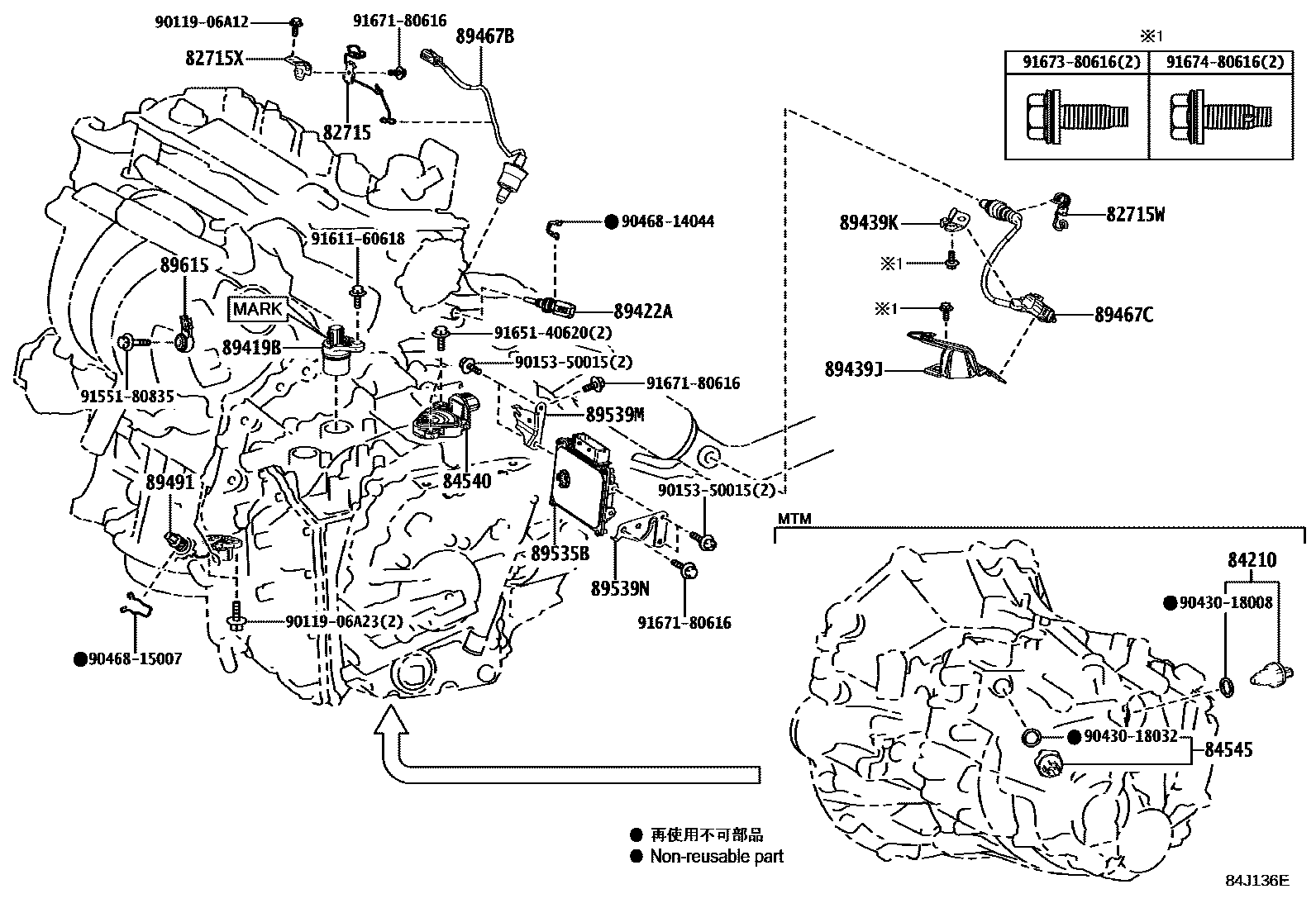

Toyota COROLLA HATCHBACK — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1STEERING 0014 1SEAT 0015 1DOOR & ROOF 0016 1FLOOR & BACK DOOR

82715BRACKET,WIRING HARNESS CLAMP

main82715-12V90iMZEA12..CVT¥300201806-202209

main82715-12V90iMZEA12..6F¥300201806

main82715-12V90iMZEA12¥300202209

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMZEA12..CVT¥220201806-202209

main82729-20040iMZEA12..6F¥220201806

main82729-20040iMZEA12¥220202209

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-12X50iMZEA12..CVT¥260201806-202209

main82715-12X50iMZEA12..6F¥260201806

main82715-12X50iMZEA12¥260202209

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMZEA12..6F¥1,360201806

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA12..CVT¥7,600201806-202208

main84540-12240iMZEA12¥7,600202209-202308

main89451-42010iMZEA12¥5,900202308

84545SWITCH, NEUTRAL POSITION

main84545-52010iMZEA12..6F¥3,070201806

89419BSENSOR, SHIFT STROKE

main89419-12010iMZEA12..CVT¥5,400201806-201904

sub89419-12011¥4,100

main89419-12011iMZEA12..CVT¥4,100202107-202203

MARK=CS1

main89419-12011iMZEA12..CVT¥4,100201905-202208

main89419-12011iMZEA12¥4,100202209-202308

MARK=CS1

main89419-K2010iMZEA12¥4,100202308

main89419-K2010iMZEA12..CVT¥4,100202107-202208

MARK=HK-82

main89419-K2010iMZEA12¥4,100202209-202308

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA12..CVT¥2,410201806-202209

main89422-33040iMZEA12..6F¥2,410201806

main89422-33040iMZEA12¥2,410202209

89439JBRACKET, SENSOR, NO.2

main82715-47A60iMZEA12..CVT¥900201806-202209

main82715-47A60iMZEA12..6F¥900201806

main82715-47A60iMZEA12¥900202209

89439KBRACKET, SENSOR, NO.3

main82715-47690iMZEA12..CVT¥260201806-202209

main82715-47690iMZEA12..6F¥260201806

main82715-47690iMZEA12¥260202209

89467BSENSOR, AIR FUEL RATIO

main89467-12280iMZEA12..CVT¥9,900201806-202209

main89467-12280iMZEA12..6F¥9,900201806

main89467-12280iMZEA12¥9,900202209-202308

main89467-47040iMZEA12¥9,900202308

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-12290iMZEA12..CVT¥9,900201806-202209

main89467-12290iMZEA12..6F¥9,900201806

main89467-12290iMZEA12¥9,900202209-202308

main89467-12330iMZEA12202308

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMZEA12¥3,670201806-202204

sub89491-33052¥3,330

main89491-33052iMZEA12..CVT¥3,330202205-202209

main89491-33052iMZEA12..6F¥3,330202205

main89491-33052iMZEA12¥3,330202209-202308

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12070iMZEA12..CVT201806-201808

sub89535-12071

main89535-12071iMZEA12..CVT201808-201906

sub89535-12072

main89535-12072iMZEA12..CVT201907-202107

main89535-12280iMZEA12202209-202308

*614

main89535-12380iMZEA12..CVT202107-202209

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA12..CVT¥230201806-202209

main89539-12070iMZEA12¥230202209-202308

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12..CVT¥230201806-202209

main89539-12080iMZEA12¥230202209-202308

89615SENSOR, KNOCK CONTROL

main89615-20090iMZEA12..CVT¥2,370201806-202209

main89615-20090iMZEA12..6F¥2,370201806

main89615-20090iMZEA12¥2,370202209

9011906A12

main90119-06A12¥60

9011906A23

main90119-06A23¥60

9015350015

main90153-50015¥60

9043018008

main90430-18008¥110

9043018032

main90430-18032¥90

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167480616

main91674-80616¥60

30 parts on this diagram · 13 diagrams in section
