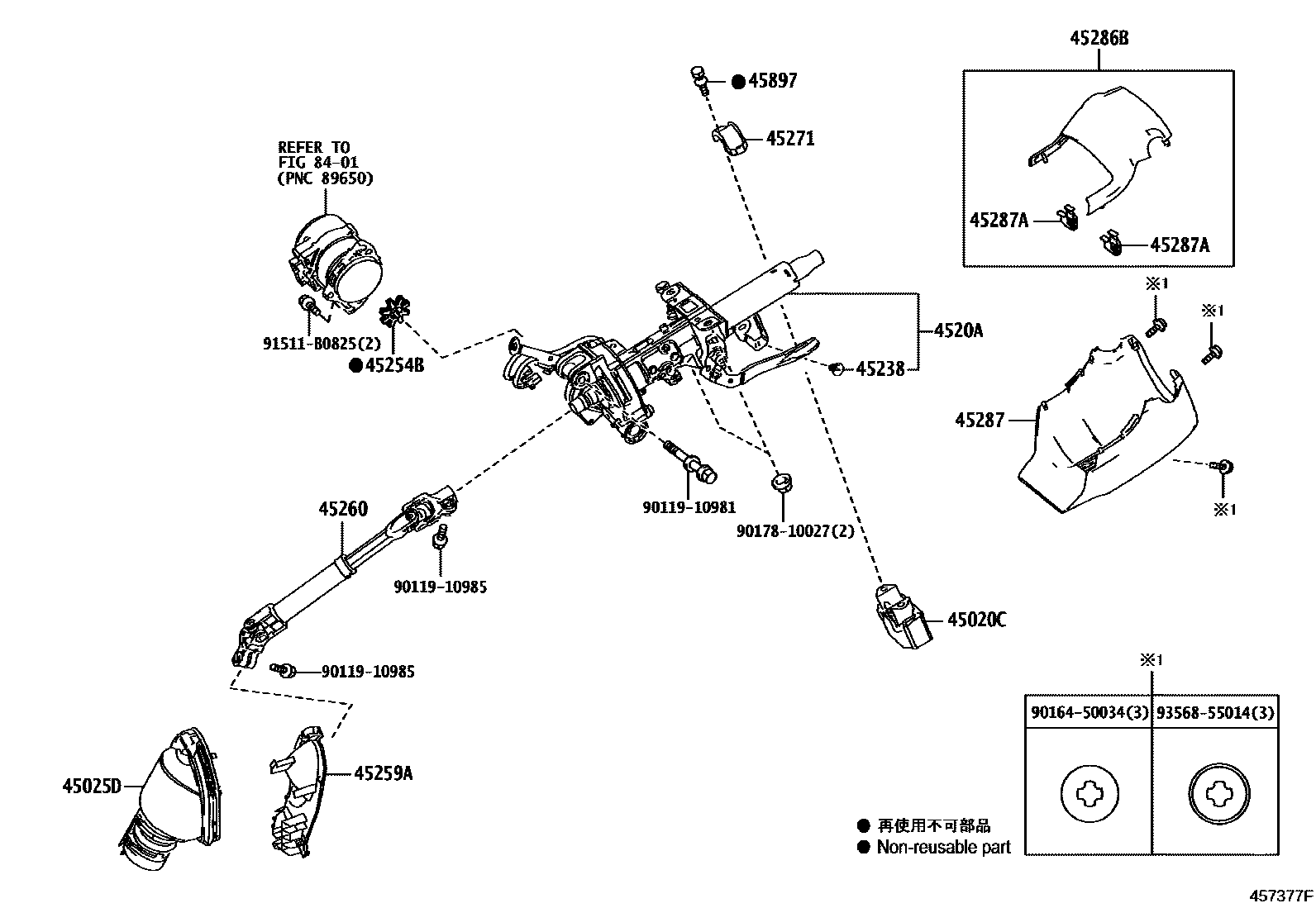

Toyota COROLLA HATCHBACK — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-12550iMZEA12..CVT¥14,900201806-202209

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47060iMZEA12..CVT201806-202209

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-12160iMZEA12201806-201909

main4520A-12190iMZEA12..CVT201909-202209

main4520A-12220iMZEA12202209-202403

main4520A-12221iMZEA12202404

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMZEA12..CVT¥70201806-202209

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMZEA12..CVT¥220201806-202209

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47050iMZEA12201806-202109

sub45259-47051

main45259-47051iMZEA12..CVT202110-202209

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12810iMZEA12..CVT201806-202209

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMZEA12..CVT¥440201806-202209

45286BCOVER, STEERING COLUMN, UPR

main45286-12670-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

45287COVER, STEERING COLUMN, LWR

main45024-12110-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171iMZEA12..CVT¥60201806-202209

45897BOLT, STEERING LOCK SET

main45897-12020iMZEA12..CVT¥210201806-202209

8401

9011910981

main90119-10981¥190

9011910985

main90119-10985¥100

9016450034

main90164-50034¥70

9017810027

main90178-10027¥100

91511B0825

main91511-B0825¥140

9356855014

main93568-55014¥70

19 parts on this diagram · 1 diagram in section
