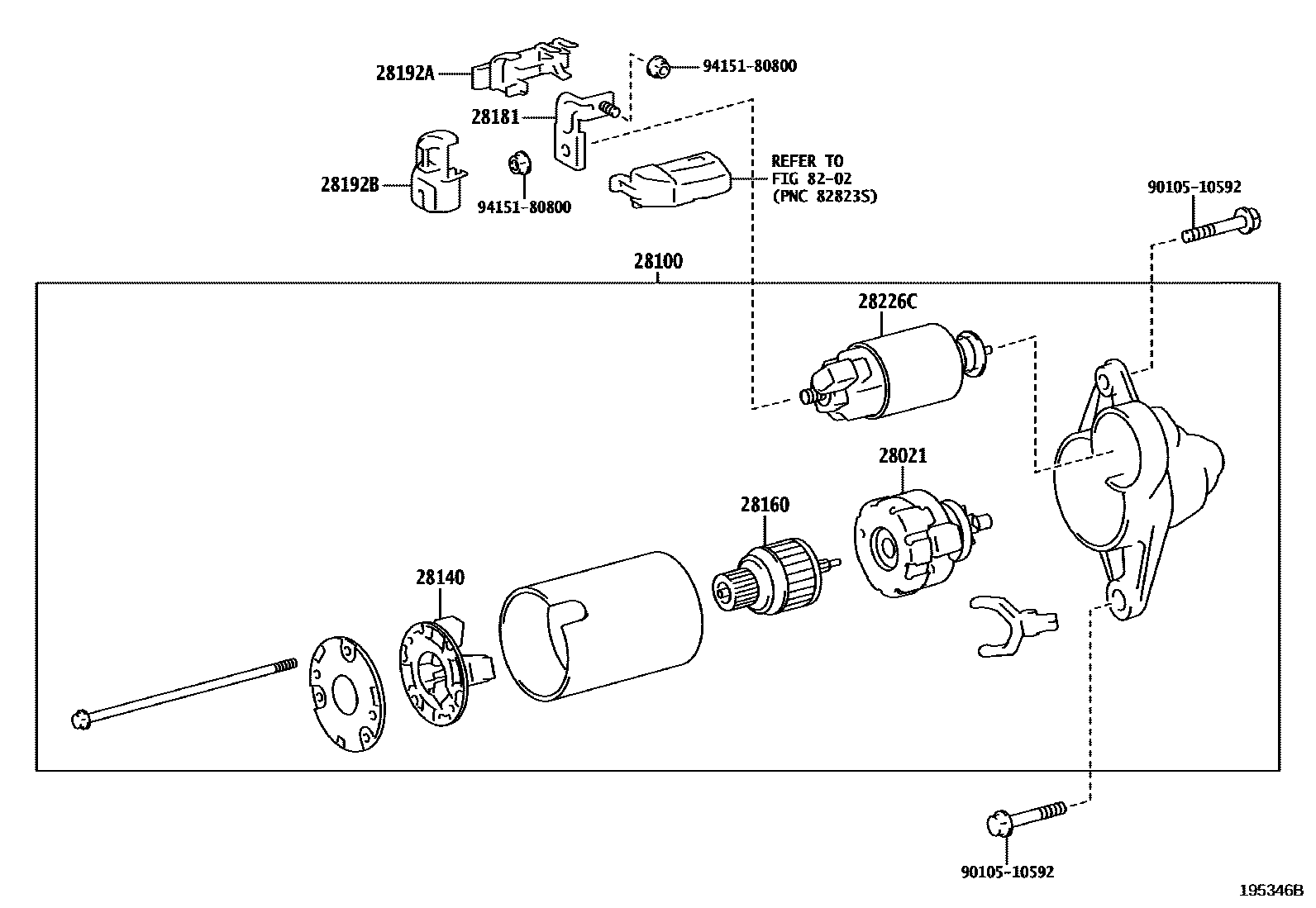

Toyota COROLLA HATCHBACK — STARTER

0001 112V 1.0KW 0002 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MZEA12..CVT¥6,700201806-202209

main28021-24120iM20AFKS..MZEA12..6F¥6,700201806

main28021-24120iM20AFKS..MZEA12¥6,700202209

28100STARTER ASSY

main28100-24120iM20AFKS..MZEA12..CVT¥54,900201806-202209

12V 1.2KW

main28100-24120iM20AFKS..MZEA12..6F¥54,900201806

12V 1.2KW

main28100-24120iM20AFKS..MZEA12¥54,900202209

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MZEA12..CVT201806-202209

main28140-21070iM20AFKS..MZEA12..6F201806

main28140-21070iM20AFKS..MZEA12202209

28160ARMATURE ASSY, STARTER

main28160-21080iM20AFKS..MZEA12..CVT¥10,300201806-202209

main28160-21080iM20AFKS..MZEA12..6F¥10,300201806

main28160-21080iM20AFKS..MZEA12¥10,300202209

28181TERMINAL, STARTER

main28181-24010iM20AFKS..MZEA12..CVT¥1,300201806-202209

main28181-24010iM20AFKS..MZEA12..6F¥1,300201806

main28181-24010iM20AFKS..MZEA12¥1,300202209

28192ACOVER, STARTER, NO.1

main28192-24010iM20AFKS..MZEA12..CVT¥440201806-202209

main28192-24010iM20AFKS..MZEA12..6F¥440201806

main28192-24010iM20AFKS..MZEA12¥440202209

28192BCOVER, STARTER, NO.2

main28192-24020iM20AFKS..MZEA12..CVT¥440201806-202209

main28192-24020iM20AFKS..MZEA12..6F¥440201806

main28192-24020iM20AFKS..MZEA12¥440202209

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20AFKS..MZEA12..CVT201806-202209

main28226-24120iM20AFKS..MZEA12..6F201806

main28226-24120iM20AFKS..MZEA12202209

8202

9010510592

main90105-10592¥160

9415180800

main94151-80800¥80

11 parts on this diagram · 2 diagrams in section
