Toyota COROLLA HATCHBACK — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-1A210iMZEA12..CVT¥6,300201806-202209

main86160-1A210iMZEA12..6F¥6,300201806

main86160-1A210iMZEA12¥6,300202209

86160BSPEAKER ASSY, REAR

main86160-1A210iMZEA12..CVT¥6,300201806-202209

main86160-1A210iMZEA12..6F¥6,300201806

main86160-1A210iMZEA12¥6,300202209

86160JSPEAKER ASSY, FRONT NO.3

86160PSPEAKER ASSY, FRONT NO.2

main86160-52340iMZEA12..CVT¥5,200201806-202209

main86160-52340iMZEA12..6F¥5,200201806

main86160-52340iMZEA12¥5,200202209

9015950311

main90159-50311¥70

9015960303

main90159-60303¥70

9018906227

main90189-06227¥70

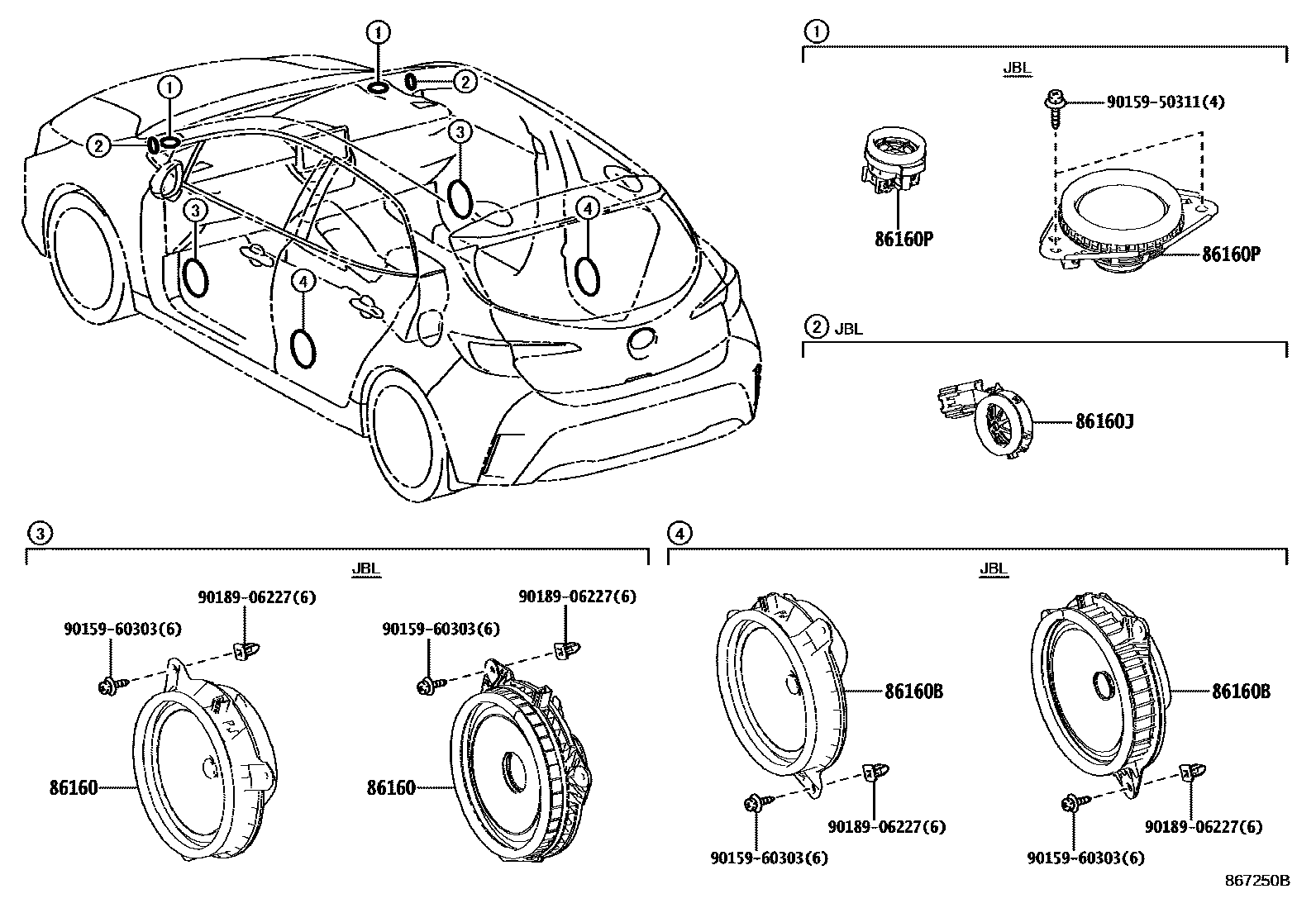

7 parts on this diagram · 1 diagram in section
