Toyota COROLLA HATCHBACK — SEAT BELT & CHILD RESTRAINT SEAT

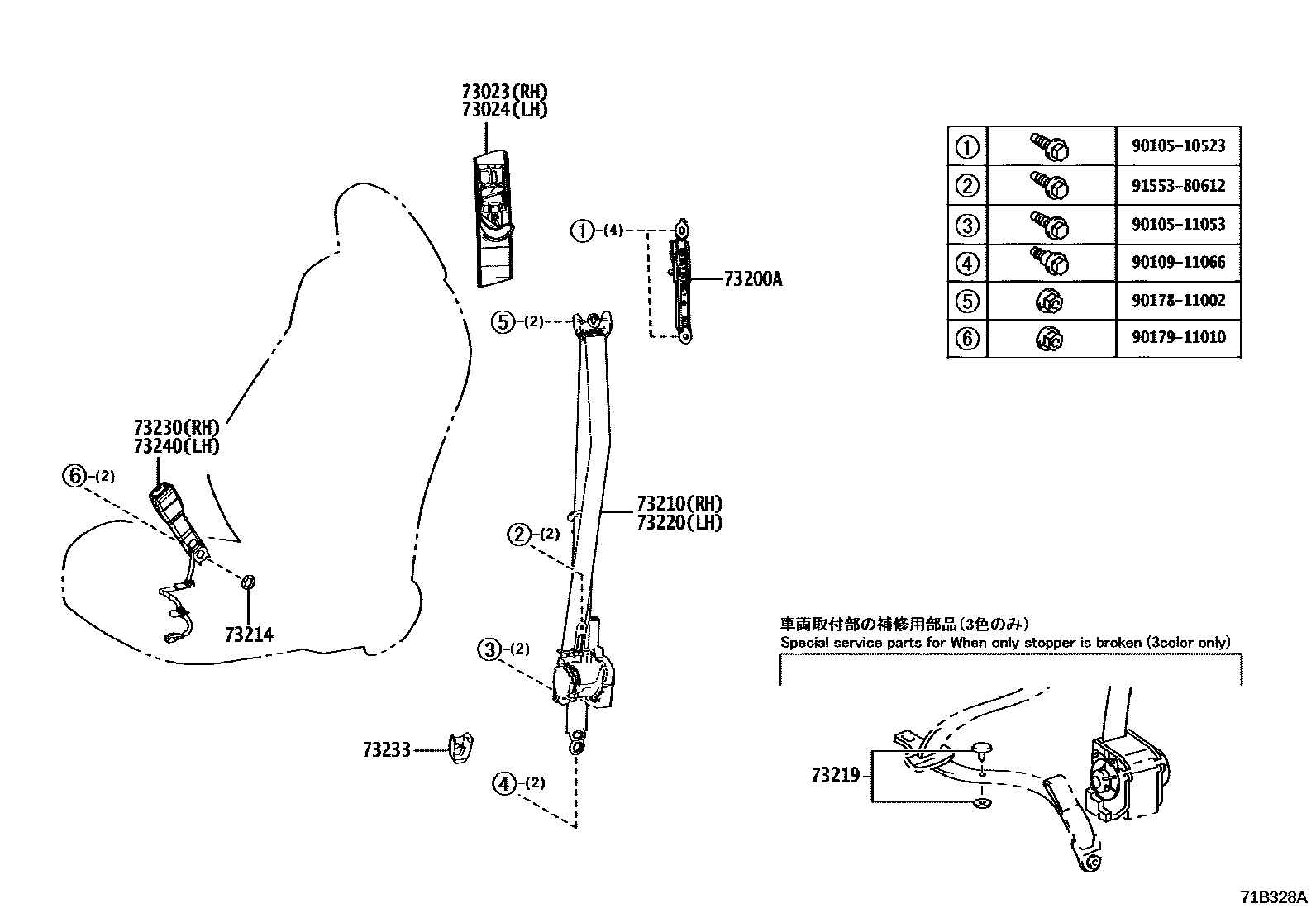

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iMZEA12..6F201806

BLACK,TRIM1#,2#,3#,4#

main73023-12030-C0iMZEA12202209

BLACK,TRIM1#,2#,3#,4#

main73023-12030-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iMZEA12..6F201806

BLACK,TRIM1#,2#,3#,4#

main73024-12020-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

main73024-12020-C0iMZEA12202209

BLACK,TRIM1#,2#,3#,4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iMZEA12¥3,200201806-202006

main73200-42020iMZEA12..CVT¥3,340202006-202209

main73200-42020iMZEA12..6F¥3,340202006

main73200-42020iMZEA12¥3,340202209

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47272-C5iMZEA12201806-202208

BLACK,TRIM1#,2#,3#,4#

sub73210-47273

main73210-47273-C5iMZEA12202209

BLACK/BLACK,TRIM1#,2#,3#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iMZEA12..6F¥170201806

main73214-75010iMZEA12..CVT¥170201806-202209

main73214-75010iMZEA12¥170202209

73219STOPPER, TONGUE PLATE

main73219-02010iMZEA12..CVT¥80201806-202209

BLACK

main73219-02010iMZEA12..6F¥80201806

BLACK

main73219-02010iMZEA12¥80202209

BLACK

main73219-02020iMZEA12..CVT¥80201806-202209

GRAY

main73219-02020iMZEA12¥80202209

GRAY

main73219-02020iMZEA12..6F¥80201806

GRAY

main73219-02030iMZEA12..CVT¥80201806-202209

BEIGE

main73219-02030iMZEA12..6F¥80201806

BEIGE

main73219-02030iMZEA12¥80202209

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-C7iMZEA12201806-202208

BLACK,TRIM1#,2#,3#,4#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47222-C7iMZEA12202209

BLACK/BLACK,TRIM1#,2#,3#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12C30-C0iMZEA12202209

BLACK,TRIM1#,2#

main73230-12C40-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#

main73230-12C40-C0iMZEA12..6F201806

BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iMZEA12201806

BLACK,TRIM1#,2#,3#,4#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iMZEA12202209

BLACK,TRIM1#,2#,3#,4#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12C80-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#

main73230-12C80-C0iMZEA12..6F201806

BLACK,TRIM1#,2#

main73230-12C90-C0iMZEA12202209

BLACK,TRIM1#,2#

9010510523

main90105-10523¥100

9010511053

main90105-11053¥100

9010911066

main90109-11066¥190

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

16 parts on this diagram · 2 diagrams in section
