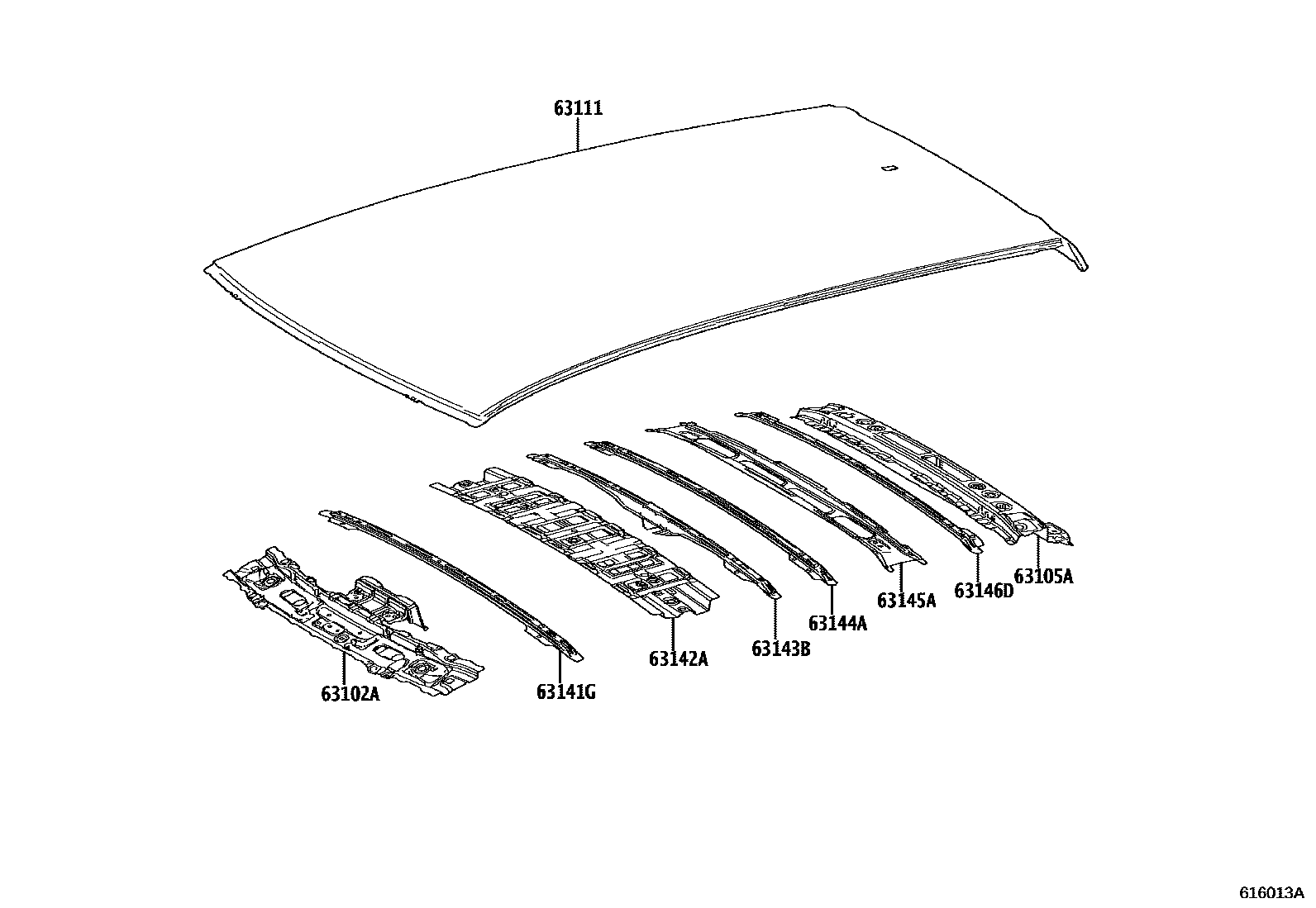

Toyota COROLLA HATCHBACK — ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12911iMZEA12..CVT¥5,300201806-202209

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12310iMZEA12..CVT¥5,300201806-202209

63111PANEL, ROOF

main63111-12B20iMZEA12..CVT¥29,400201806-202209

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-12150iMZEA12..CVT¥1,360201806-202209

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-12150iMZEA12¥10,800201806-201912

sub63103-12170¥8,100

main63103-12170iMZEA12..CVT¥8,100202001-202209

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12200iMZEA12..CVT¥1,820201806-202209

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12170iMZEA12..CVT¥1,250201806-202209

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63128-12050iMZEA12..CVT¥1,790201806-202209

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63148-12100iMZEA12..CVT¥1,060201806-202209

9 parts on this diagram · 1 diagram in section
