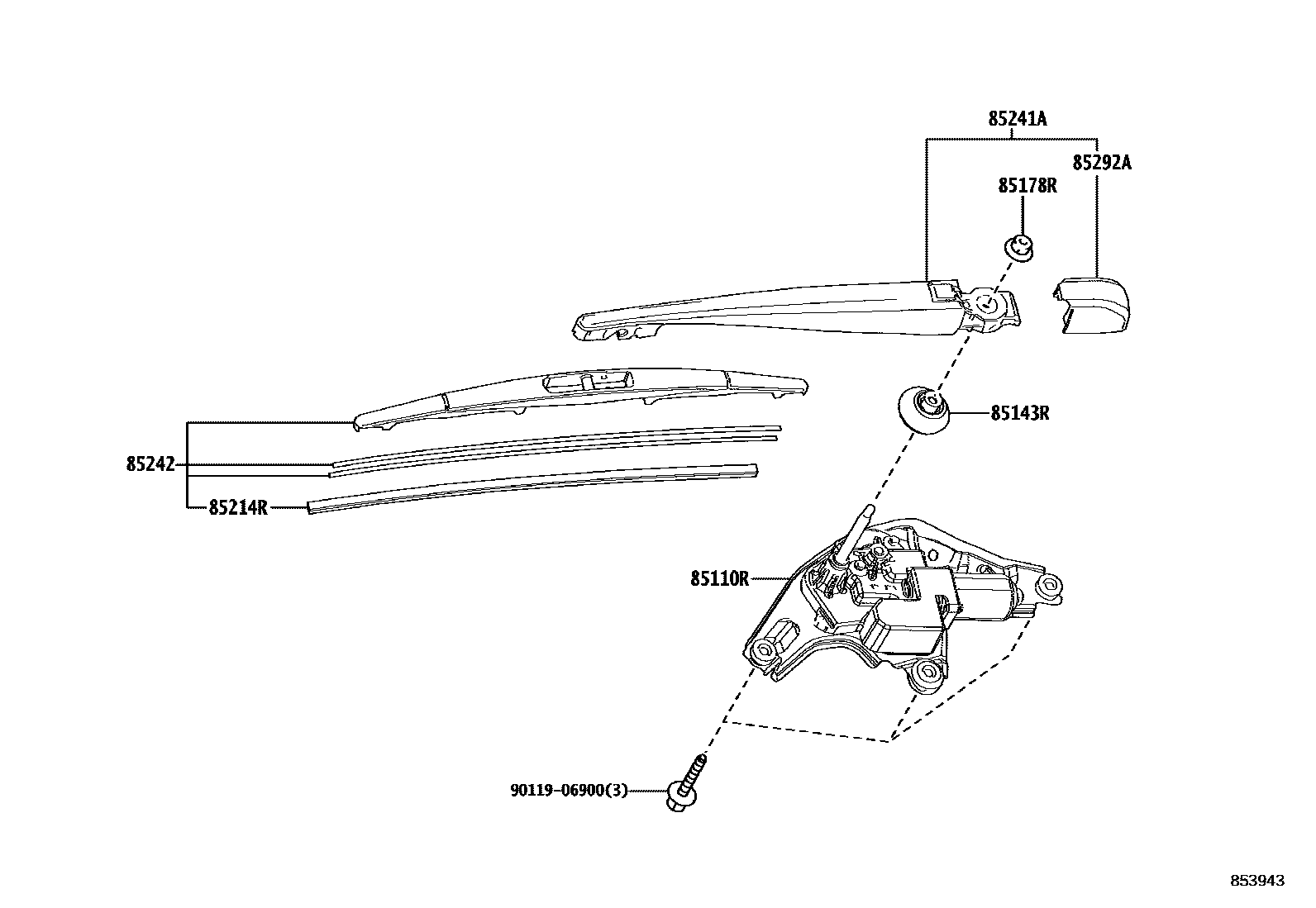

Toyota COROLLA HATCHBACK — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12A40iMZEA12..CVT¥14,900201806-202209

85143RGROMMET, REAR WIPER MOTOR

main85143-12830iMZEA12..CVT¥160201806-202209

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMZEA12..CVT¥70201806-202209

85214RRUBBER, REAR WIPER

main85214-12320iMZEA12..CVT¥600201806-202209

85241AARM, REAR WIPER

main85241-12180iMZEA12..CVT201806-202209

85242BLADE, RR WIPER

main85242-12150iMZEA12..CVT¥1,220201806-202209

85292ACAP, REAR WIPER ARM HEAD

main85244-12060iMZEA12..CVT201806-202209

9011906900

main90119-06900¥80

8 parts on this diagram · 1 diagram in section
