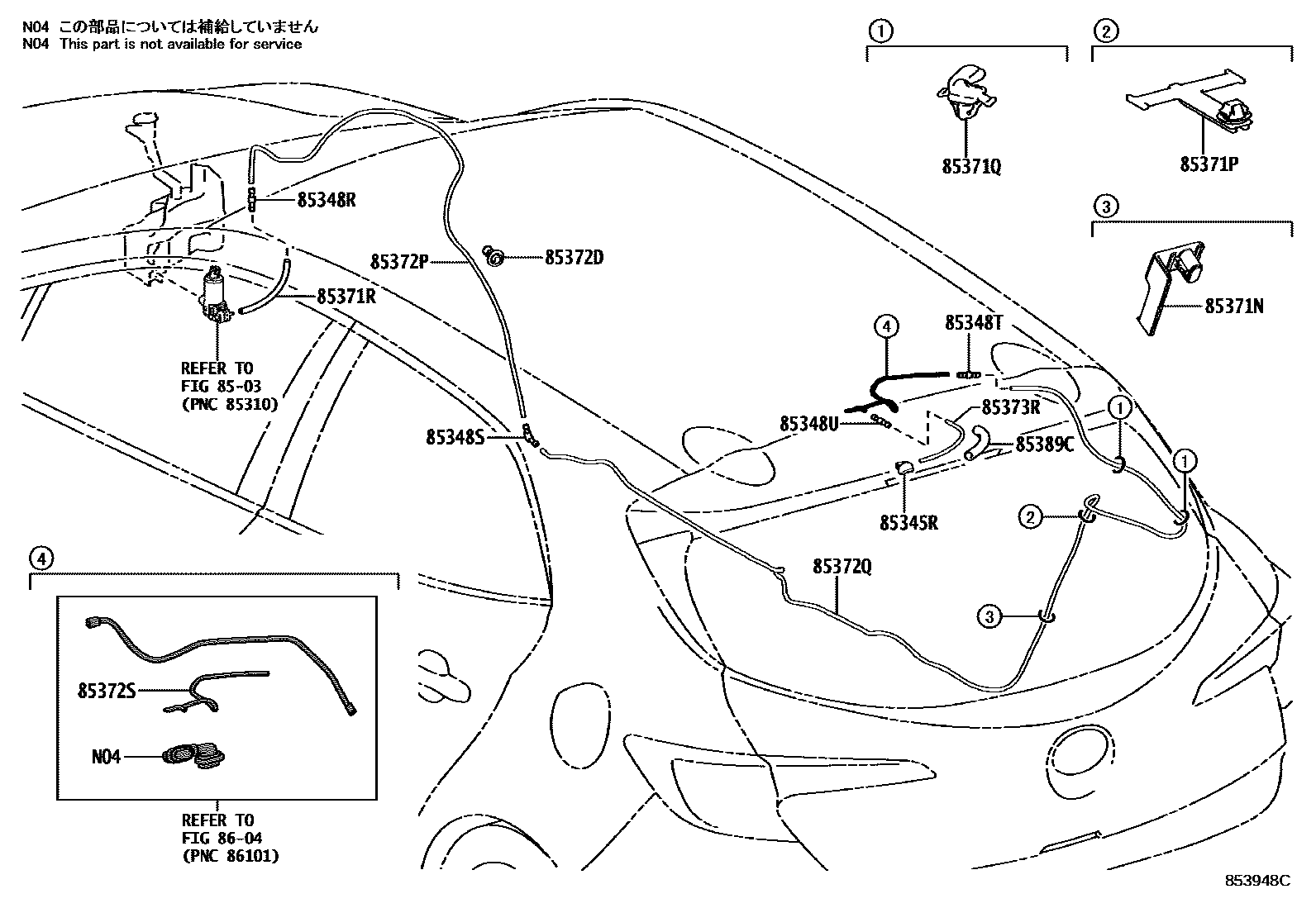

Toyota COROLLA HATCHBACK — REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=250)
L=1450(*H,L=250)
L=1450(*H,L=250)
85372DGROMMET, REAR WASHER HOSE
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1480
L=1480
L=1480
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=3267
L=3300
L=3300
L=3300
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=460)
L=1450(*H,L=460)
L=1450(*H,L=450)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=200)
L=1450(*H,L=200)
L=1450(*H,L=200)
85389CPROTECTOR, WASHER
8604
17 parts on this diagram · 1 diagram in section
