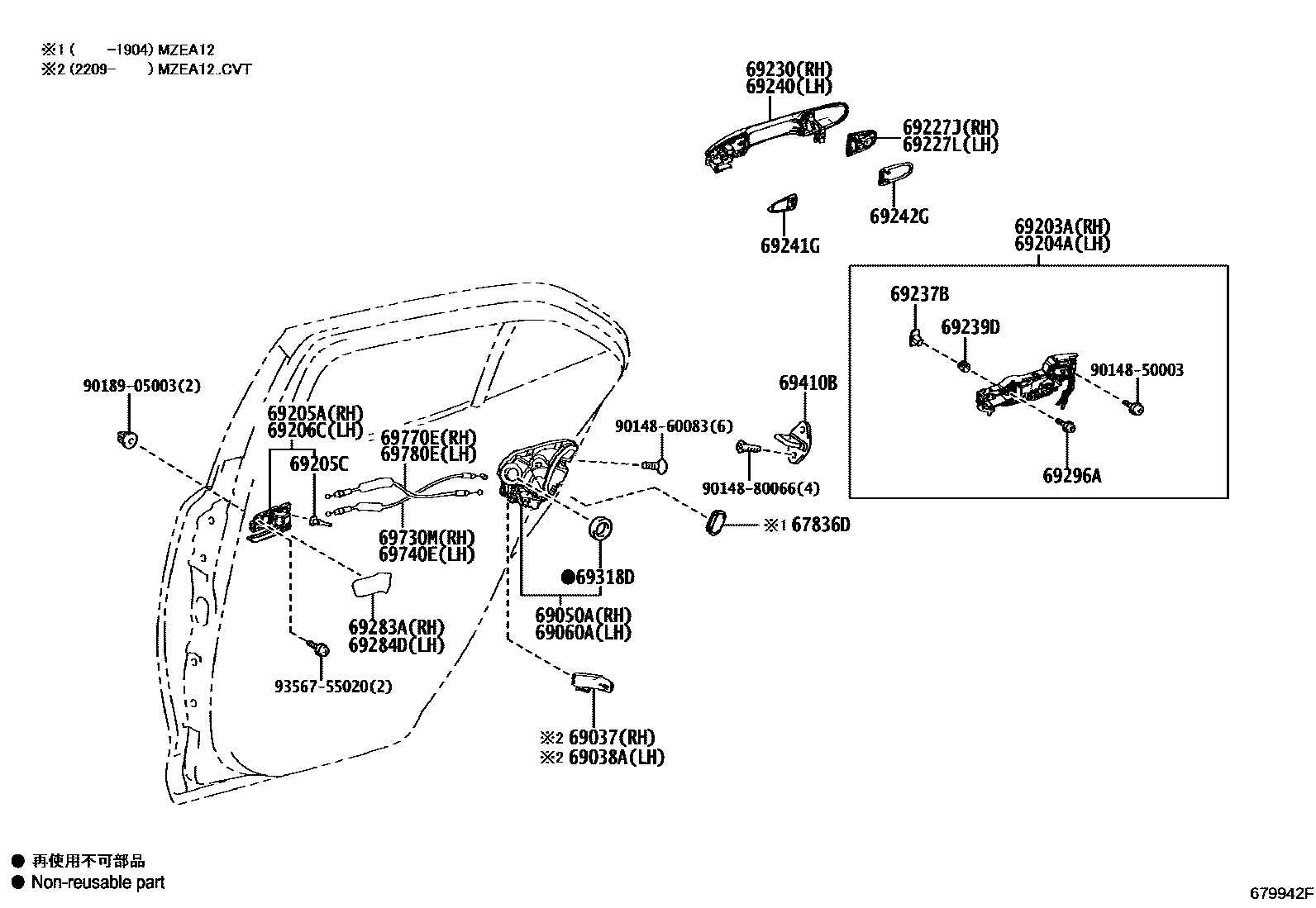

Toyota COROLLA HATCHBACK — REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,040 ,1F7 ,218
ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,040 ,1F7 ,218
BLACKISH AGEHA GF.,221
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
EMOTIONAL RED 3,2XM ,3U9
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
DK.BLUE M.M.,2RC ,8W7
CYAN METALLIC,2UH ,8W9
CYAN METALLIC,2UH ,8W9
ORANGE M.M.,4Y8
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3 ,2QZ
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,040 ,1F7 ,218
ATTITUDE BLACK MC.,040 ,1F7 ,218
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH AGEHA GF.,221
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,2XM ,3U9
EMOTIONAL RED 3,2XM ,3U9
EMOTIONAL RED 3,2XM ,3U9
OXIDE BRONZE ME.,2UD ,6X1
DK.BLUE M.M.,2RC ,8W7
CYAN METALLIC,2UH ,8W9
CYAN METALLIC,2UH ,8W9
ORANGE M.M.,4Y8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
COOL GRAY,TRIM1#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
9014880066
9018905003
9356755020
32 parts on this diagram · 1 diagram in section
