Toyota COROLLA HATCHBACK — PARTIAL ENGINE ASSEMBLY

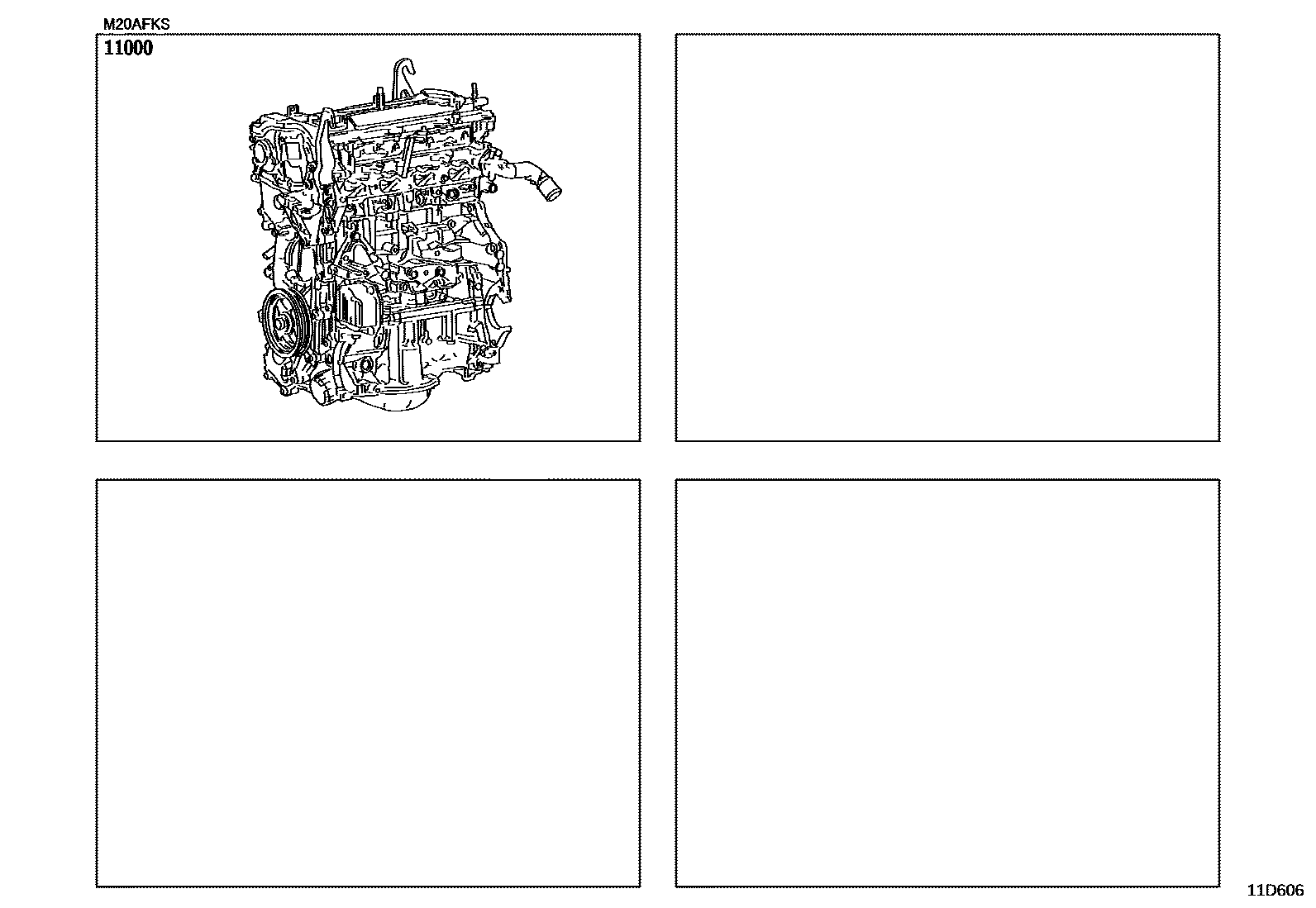

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-24300i¥458,000201806-202209
main19000-24300i¥458,000201806
main19000-24410i¥458,000202209-202308
main19000-24420i202308-202408
sub19000-2U020
main19000-2U020i202409

1 parts on this diagram · 1 diagram in section
