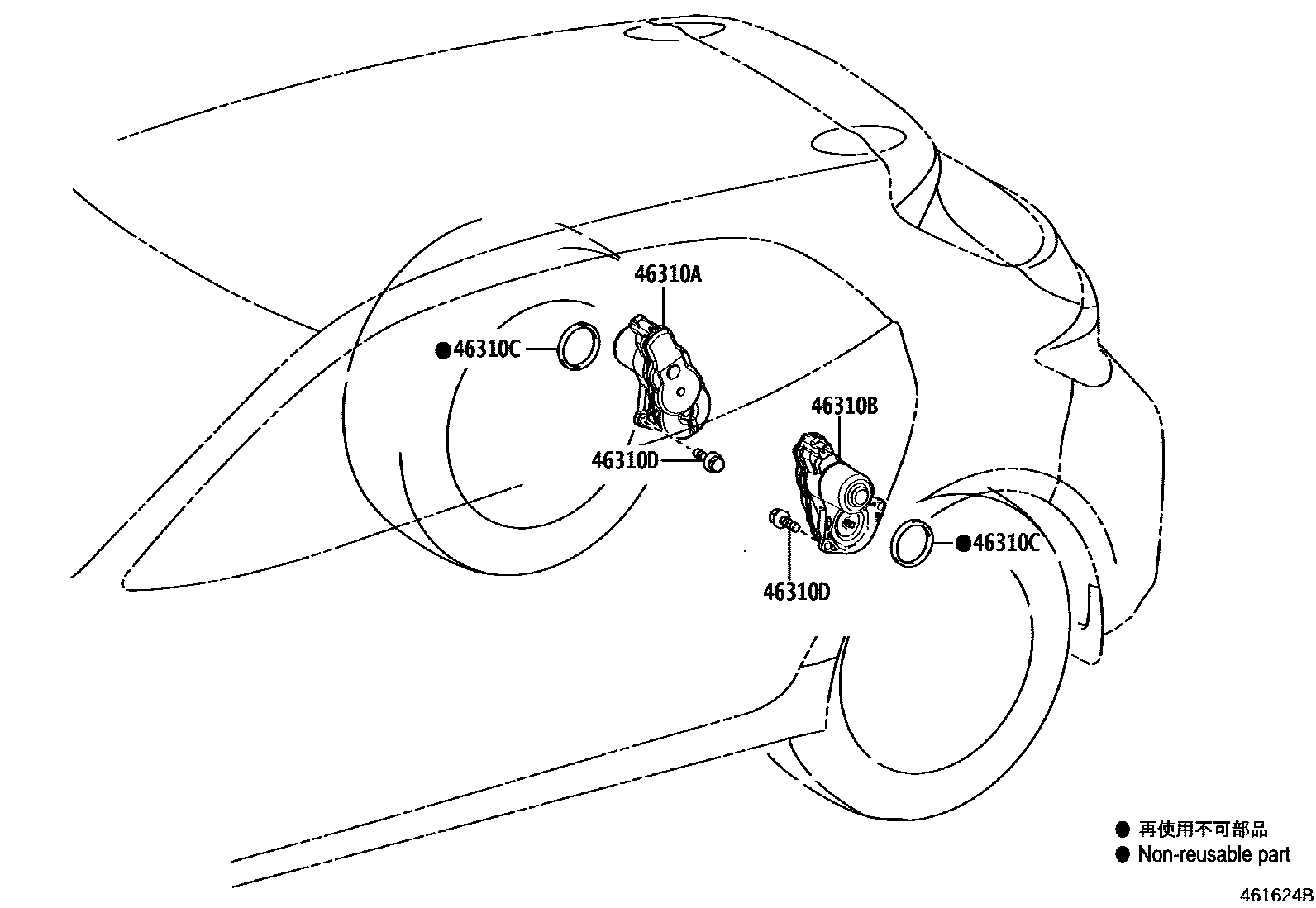

Toyota COROLLA HATCHBACK — PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010iMZEA12..CVT¥14,400201806-202209

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010iMZEA12..CVT¥14,400201806-202209

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iMZEA12..CVT¥130201806-202209

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702iMZEA12¥270201806

sub90016-AA703¥270

4 parts on this diagram · 1 diagram in section
