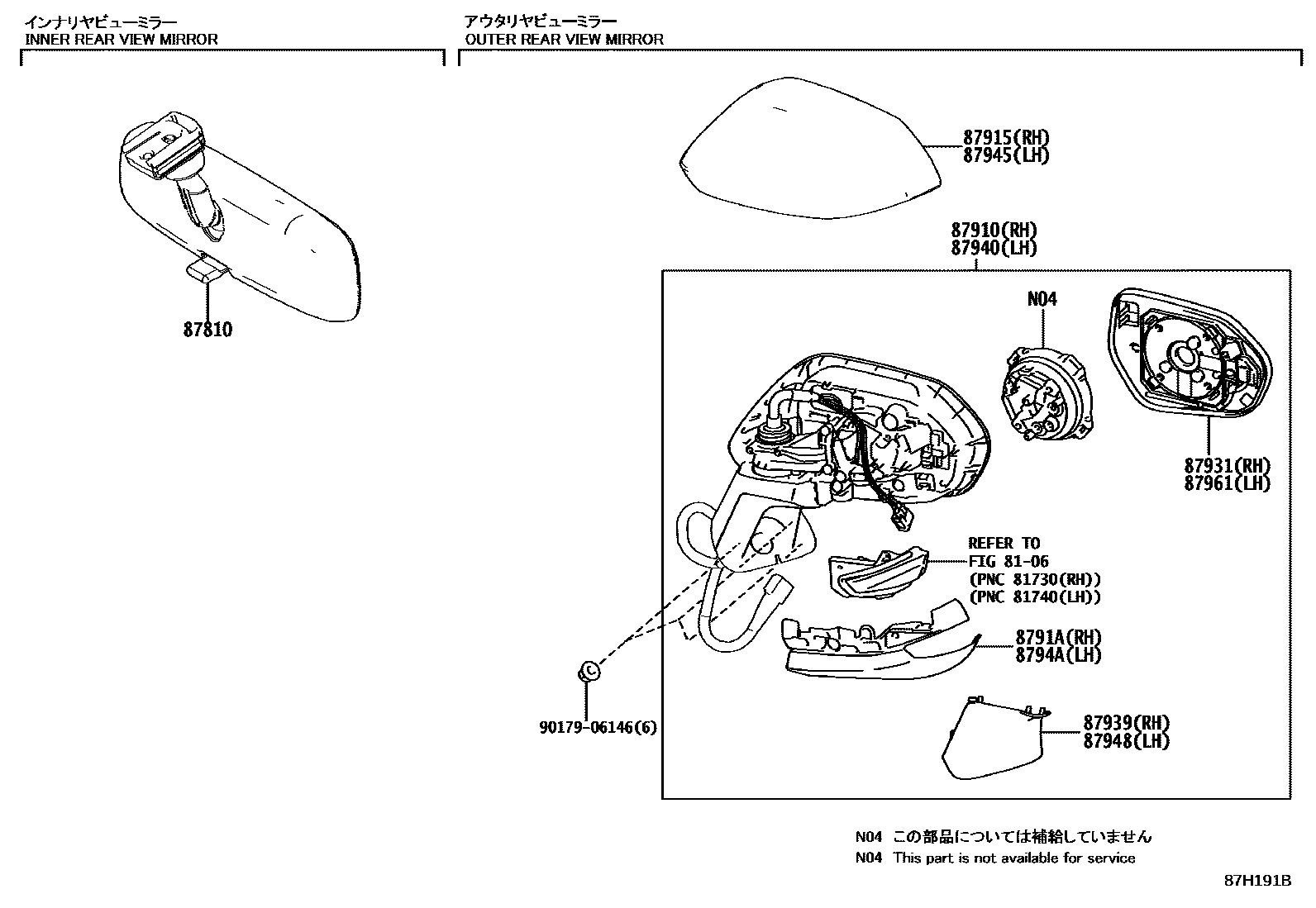

Toyota COROLLA HATCHBACK — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070 ,2QJ
SUPER WHITE 2,040
SUPER WHITE 2,040
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3
GRAY ME.,1G3
GRAY ME.,1G3
BLACKISH AGEHA GF.,221
BLACKISH AGEHA GF.,221
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,1G3 ,218 ,2PS ,2QZ ,2RC ,2UF ,2XM ,3U9 ,4Y8 ,8W7
ATTITUDE BLACK MC.,218
WITH(NIGHT SHADE),ATTITUDE BLACK MC.,040 ,1F7 ,218
BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,3U9
EMOTIONAL RED 3,3U9
EMOTIONAL RED 3,3U9
ORANGE M.M.,4Y8
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
CYAN METALLIC,2UH ,8W9
DK.BLUE M.M.,8W7
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070 ,2QJ
SUPER WHITE 2,040
SUPER WHITE 2,040
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7 ,2UF
SILVER ME.,1F7
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3
GRAY ME.,1G3
GRAY ME.,1G3
BLACKISH AGEHA GF.,221
BLACKISH AGEHA GF.,221
BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,218
WITH(NIGHT SHADE),ATTITUDE BLACK MC.,040 ,1F7 ,218
ATTITUDE BLACK MC.,218 ,2PS ,2QJ ,2QZ ,2SC ,2UD ,2UF ,2UG ,2UH ,2XM
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,1G3 ,218 ,2PS ,2QZ ,2RC ,2UF ,2XM ,3U9 ,4Y8 ,8W7
SCARLET ME.,2UG ,3U4
EMOTIONAL RED 2,2SC ,3U5
EMOTIONAL RED 3,3U9
EMOTIONAL RED 3,3U9
EMOTIONAL RED 3,3U9
ORANGE M.M.,4Y8
OXIDE BRONZE ME.,2UD ,6X1
CYAN METALLIC,2UH ,8W9
CYAN METALLIC,2UH ,8W9
DK.BLUE M.M.,8W7
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
9017906146
13 parts on this diagram · 1 diagram in section
