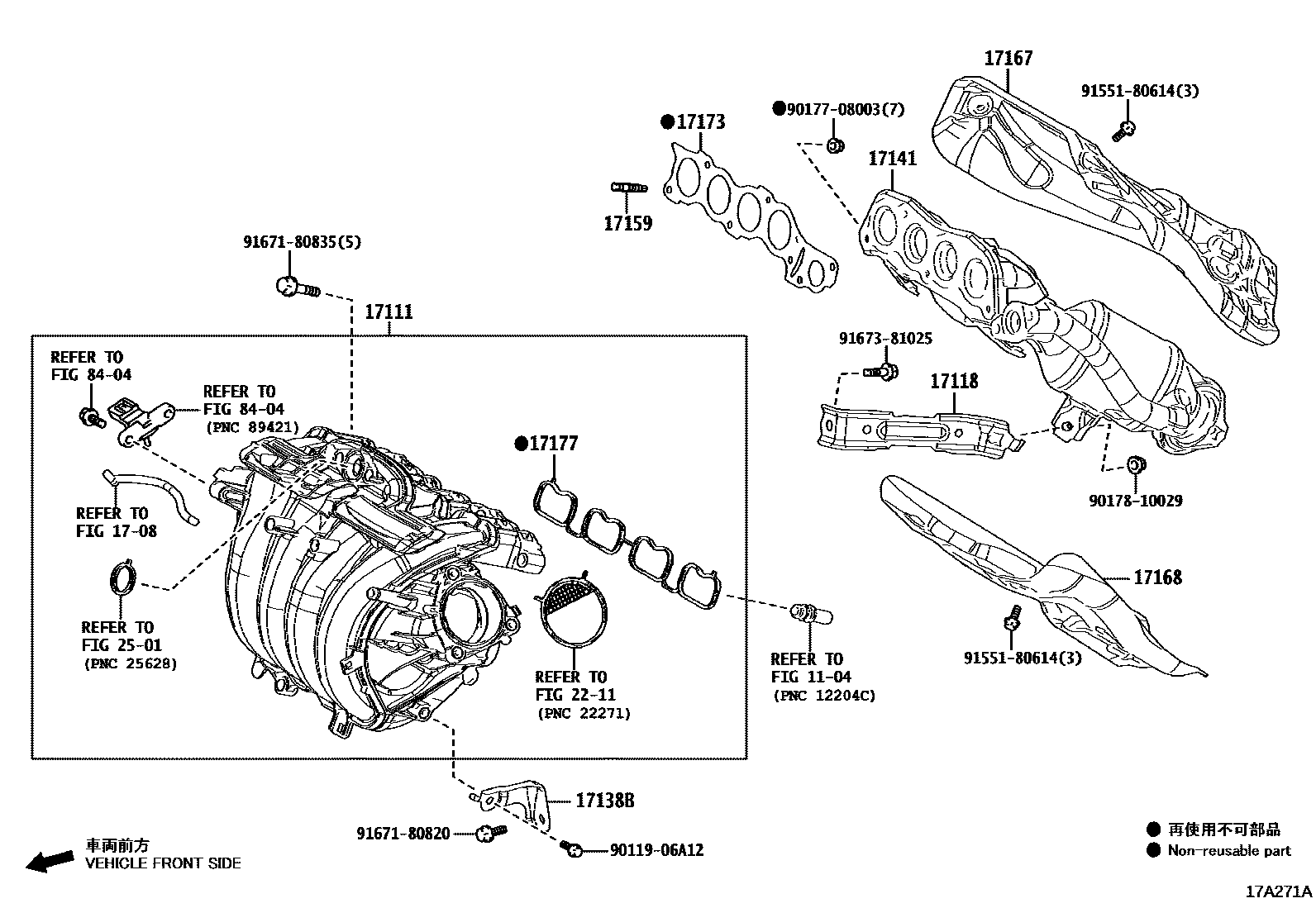

Toyota COROLLA HATCHBACK — MANIFOLD
1104
1708
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(J)
(J)
(L)
(L)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
8404
9011906A12
9017708003
9017810029
9155180614
9167180820
9167180835
9167381025
21 parts on this diagram · 1 diagram in section
