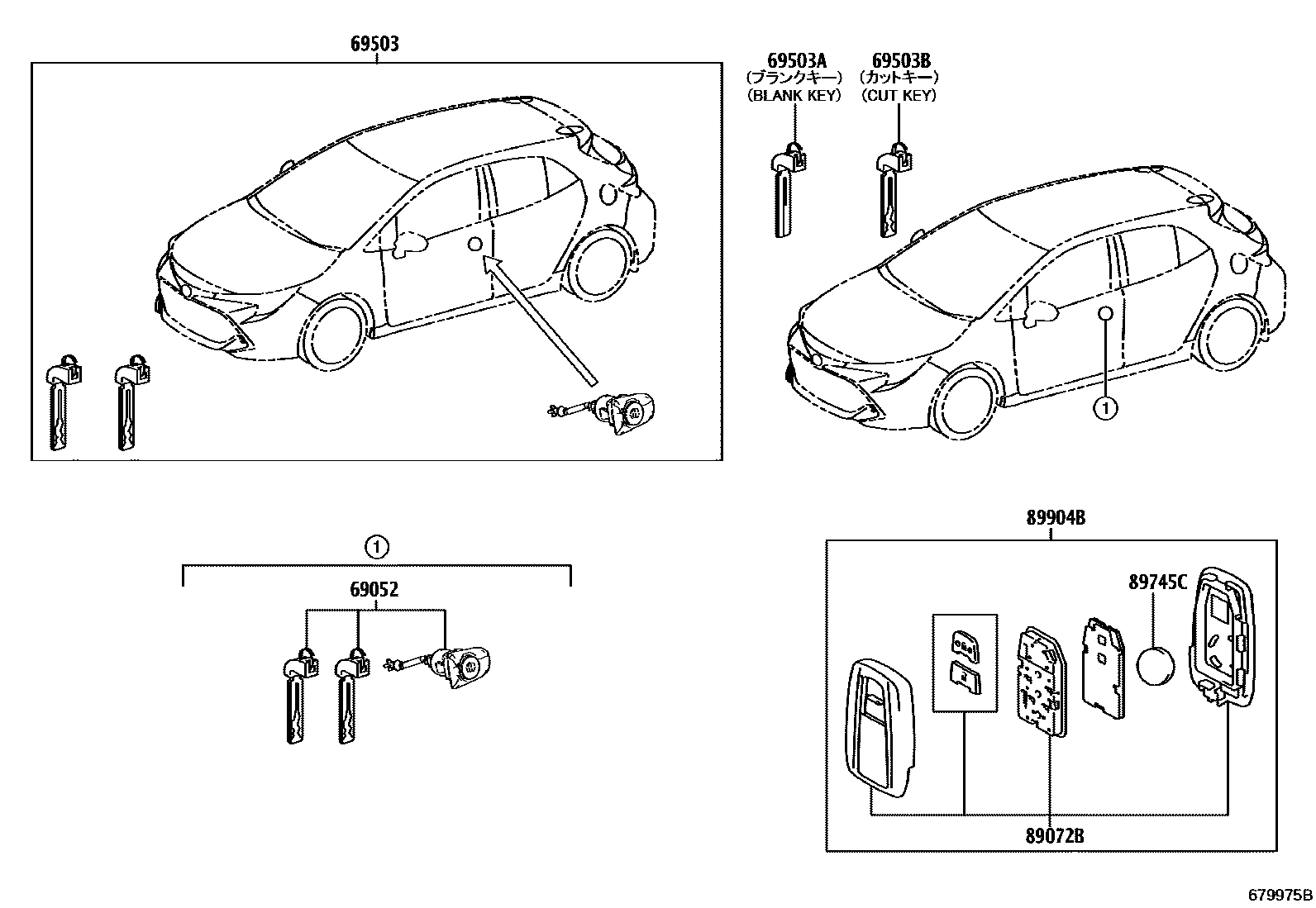

Toyota COROLLA HATCHBACK — LOCK CYLINDER SET

0001 1 0003 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12710iMZEA12..CVT201806-202209

main69052-12711iMZEA12202209

69503CYLINDER SET, LOCK

main69005-12J20iMZEA12..CVT201806-202209

main69005-12J21iMZEA12202209

69503AKEY, BLANK

main69515-16110iMZEA12..CVT¥6,500202011-202209

MASTER KEY,W(*68)

main69515-47030iMZEA12¥7,200201806-202010

MASTER KEY,W(*68)

sub69515-16110¥6,500

main69515-K0020iMZEA12¥6,500202209

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-16100iMZEA12..6F¥7,100202011-202209

MASTER KEY,W(*68)

main69515-47020iMZEA12¥7,800201806-202010

MASTER KEY,W(*68)

sub69515-16100¥7,100

main69515-K0010iMZEA12¥7,100202209

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-12540iMZEA12..CVT201806-202209

main89072-16180iMZEA12202209

89745CBATTERY, TRANSMITTER

main89745-45010iMZEA12¥440201806-202112

CR2032

sub89745-50020¥440

main89745-50020iMZEA12..CVT¥440202112-202209

CR2032

main89745-K0010iMZEA12¥440202209

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-12180iMZEA12..CVT201806-202209

main8990H-12560iMZEA12202209-202307

main8990H-12561iMZEA12202307

7 parts on this diagram · 2 diagrams in section
