Toyota COROLLA HATCHBACK — INSTRUMENT PANEL & GLOVE COMPARTMENT

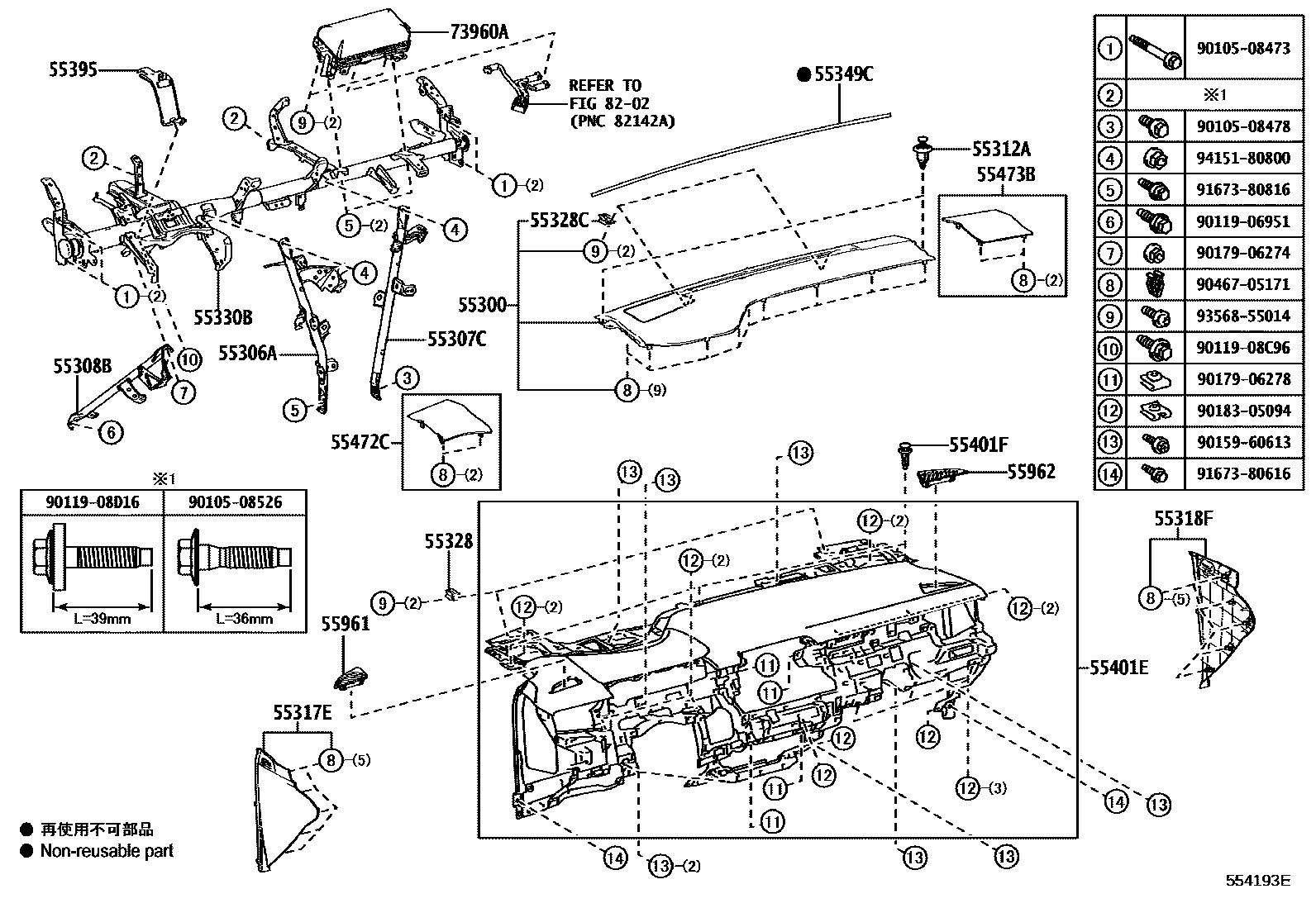

Parts diagram
55300PANEL ASSY, INSTRUMENT, UPPER
main55300-12040-C0i201806-202304
BLACK,TRIM1#,2#,3#,4#
main55300-12041-C0i202304
BLACK,TRIM1#,2#,3#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-12510i201806-202209
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-12410i201806-202209
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-12320i201806-202209
55312ACLIP, INSTRUMENT PANEL
main90467-07217i¥80201806-202209
55317EPANEL, INSTRUMENT SIDE, NO.1
main55317-12230-C0i201806-202209
BLACK,TRIM1#,2#,3#,4#
55318FPANEL, INSTRUMENT SIDE, NO.2
main55318-12170-C0i201806-202209
BLACK,TRIM1#,2#,3#,4#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-12430i¥340202004-202209
main55328-60090i¥340201806-202004
55328CPIN, INSTRUMENT PANEL, NO.2
main55328-12420i¥410201806-202003
main55328-12440i¥370202004-202209
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-12840i201806-201912
sub55330-12841
main55330-12841i202001
main55330-12850i201806-201912
sub55330-12851
main55330-12851i202001-202209
55349CCUSHION, INSTRUMENT PANEL
main55349-12190i¥730201806-202209
main55349-12200i¥730202209
55395BRACKET, INSTRUMENT PANEL TO PEDAL
main55395-12020i201806-202209
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55400-12900-C0i201806-201811
BLACK,TRIM1#,2#
sub55400-12900
main55400-12900-C0i201806-201811
BLACK,TRIM1#,2#,3#,4#
sub55400-12900
main55400-12900-C4i201811-202209
BLACK,TRIM1#,2#
sub55400-12900
55401FCLIP(FOR SAFETY PAD)
main52161-16010i¥120201806-202209
sub52161-0K040¥120
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
main55472-12100-C0i201806-202209
BLACK,TRIM1#,2#,3#,4#
main55472-12100-C0i202209
BLACK,TRIM1#,2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
main55473-12080-C0i201806-202209
BLACK,TRIM1#,2#,3#,4#
main55473-12080-C0i202209
BLACK,TRIM1#,2#
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-12250-C0i201806-202209
BLACK,TRIM1#,2#,3#,4#
main55961-12250-C0i201806-202209
BLACK,TRIM1#,2#
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-12220-C0i201806-202209
BLACK,TRIM1#,2#,3#,4#
main55962-12220-C0i201806-202209
BLACK,TRIM1#,2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-12240i201806-202209
8202
9010508473
main90105-08473¥100
9010508478
main90105-08478¥80
9010508526
main90105-08526¥100
9011906951
main90119-06951¥80
9011908C96
main90119-08C96¥80
9011908D16
main90119-08D16¥100
9015960613
main90159-60613¥60
9017906274
main90179-06274¥70
9017906278
main90179-06278¥100
9018305094
main90183-05094¥90
9046705171
main90467-05171¥60
9167380616
main91673-80616¥60
9167380816
main91673-80816¥80
9356855014
main93568-55014¥70
9415180800
main94151-80800¥80

35 parts on this diagram · 4 diagrams in section
