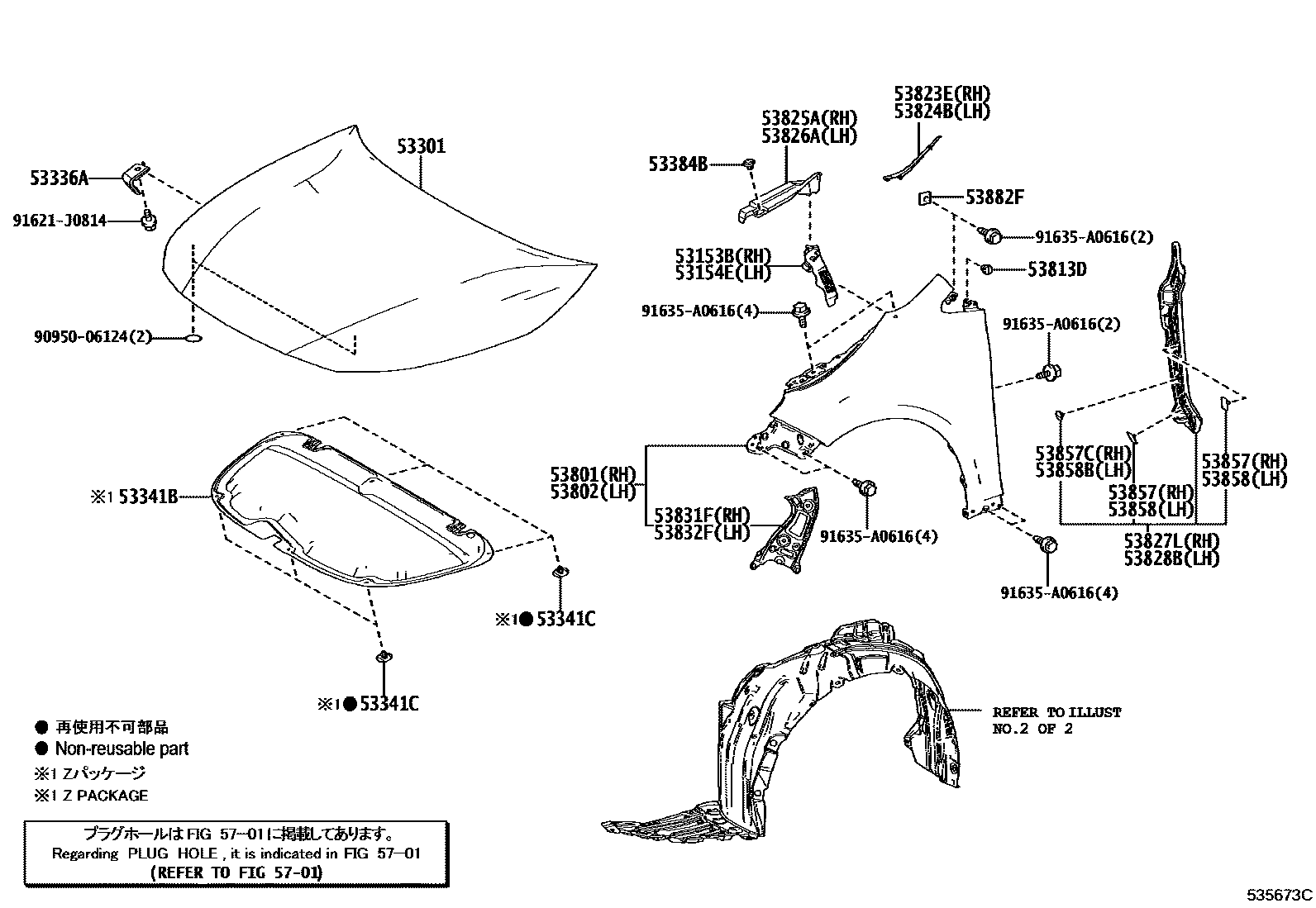

Toyota COROLLA HATCHBACK — HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
W/O(PNC 53301B)
W(PNC 53301B)
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53384BCUSHION, HOOD, CENTER
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813DEXTENSION, FRONT FENDER
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53831FPANEL, FRONT FENDER SIDE, RH
53832FPANEL, FRONT FENDER SIDE, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
5701
9095006124
91621J0814
91635A0616
27 parts on this diagram · 3 diagrams in section
