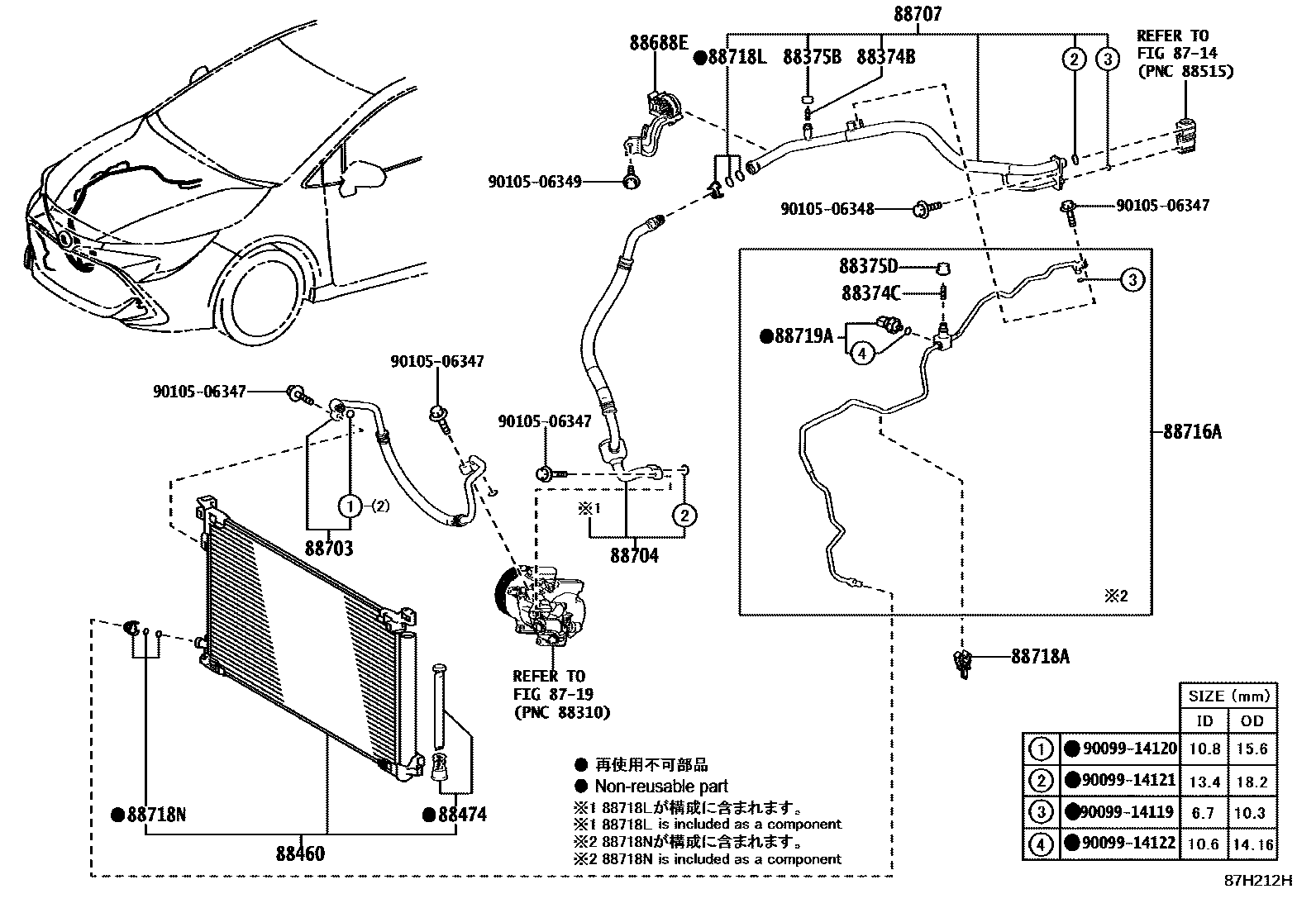

Toyota COROLLA HATCHBACK — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMZEA12..6F201806-202209

88374CVALVE, SERVICE, NO.2

main88374-30010iMZEA12..CVT201806-202310

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iMZEA12..CVT201806-202209

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iMZEA12..CVT201806-202209

88460CONDENSER ASSY, COOLER

main884A0-12010iMZEA12..CVT¥32,300201806-202209

main884A0-12120iMZEA12¥32,400202209

88474DRYER, COOLER

main88474-12010iMZEA12¥0202209

main88474-12020iMZEA12..CVT¥0201806-202209

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-12A20iMZEA12..CVT202107-202209

main88688-12A40iMZEA12201806-202107

88703HOSE SUB-ASSY, DISCHARGE

main88703-12A20iMZEA12¥9,200201806-202209

88704HOSE SUB-ASSY, SUCTION

main88704-12A20iMZEA12..CVT¥10,500201806-202404

sub88704-12B80

main88704-12B80iMZEA12202405

88707PIPE SUB-ASSY, SUCTION

main88707-12441iMZEA12..6F202107-202209

main88710-12A00iMZEA12201806-202107

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12B00iMZEA12201806-201909

main88710-12C10iMZEA12201909-202107

main88710-12C11iMZEA12202107-202310

main88710-12C12iMZEA12202310

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-47110iMZEA12..CVT201806-202209

88718LCLAMP, PIPING

main88718-52280iMZEA12..CVT¥0201806-202209

88718NCLAMP, PIPING

main88718-1E150iMZEA12..CVT¥0201806-202209

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMZEA12..CVT201806-202310

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9009914122

main90099-14122

9010506347

main90105-06347¥60

9010506348

main90105-06348¥60

9010506349

main90105-06349¥60

24 parts on this diagram · 2 diagrams in section
