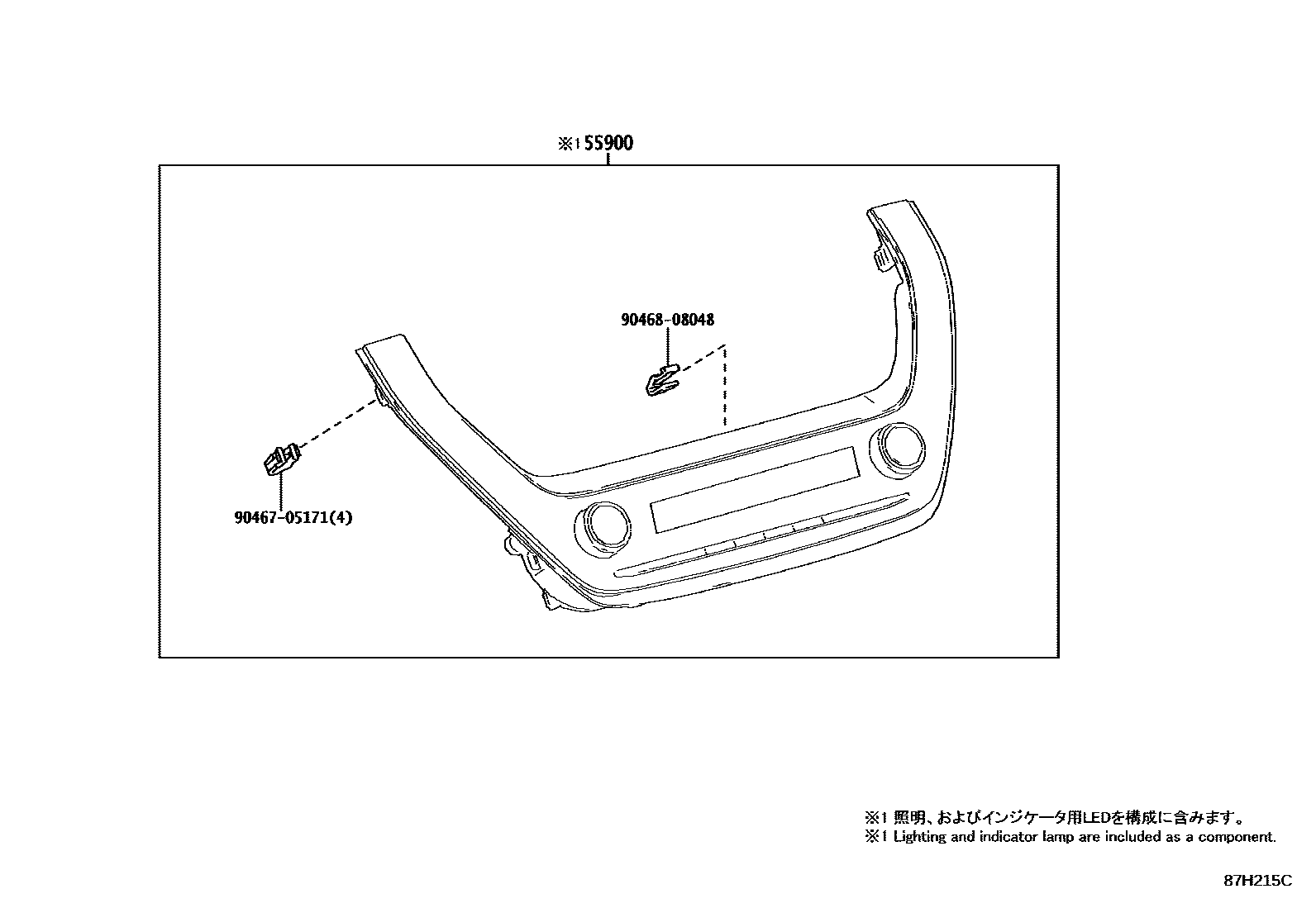

Toyota COROLLA HATCHBACK — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-12F30-B0iMZEA12..CVT201806-202209

SILVER,TRIM1#,2#

main55900-12L70-B0iMZEA12202209-202301

SILVER,TRIM1#,2#

sub55900-12L71

main55900-12L71-B0iMZEA12202302

SILVER,TRIM1#,2#

9046705171

main90467-05171¥60

9046808048

main90468-08048¥60

3 parts on this diagram · 3 diagrams in section
